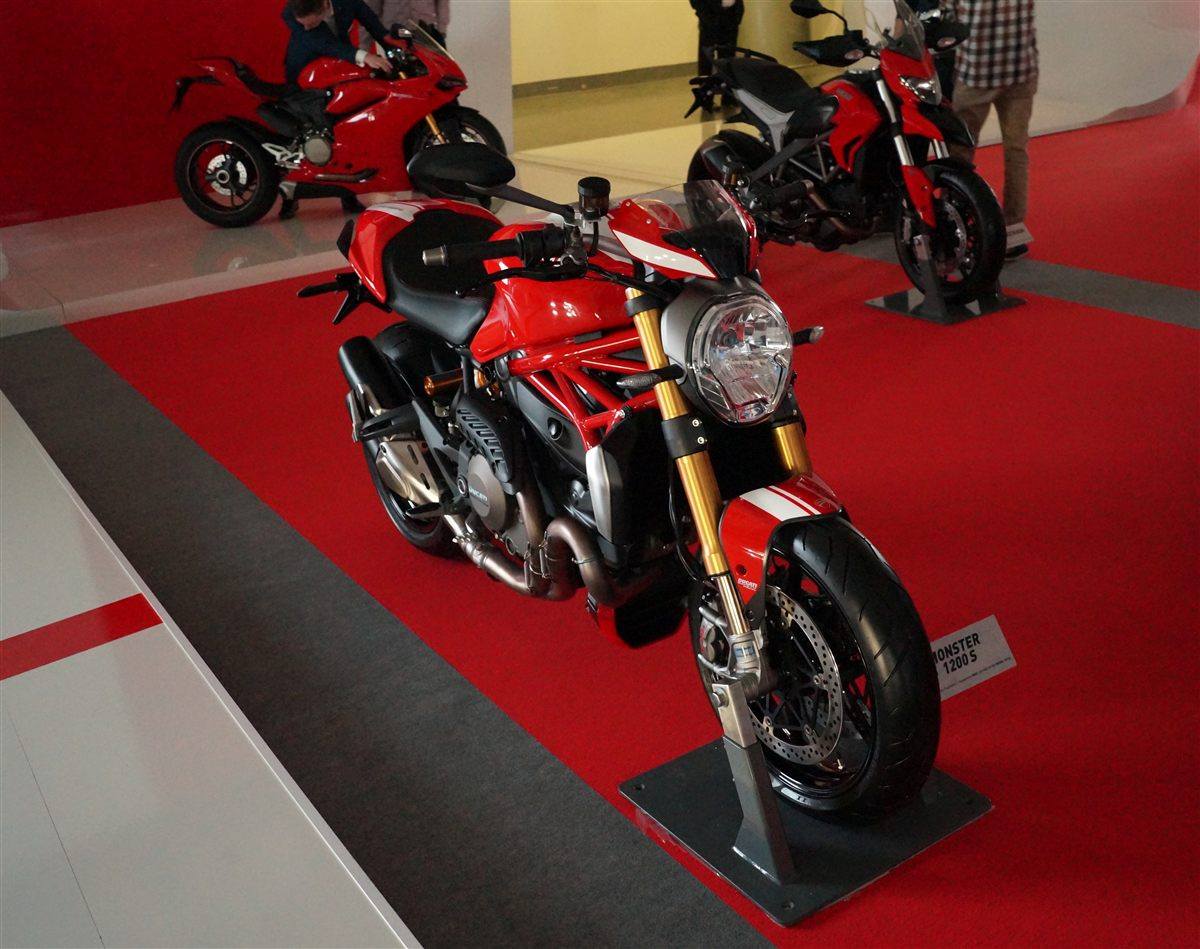

| MODEL | DUCATI MONSTER 1200S 2016 |
| Year | 2016 |
| Engine Type | Liquid-cooled four-stroke Testastretta 11° DS L-twin, DOHC, 4 desmodromic valves per cylinder |
| Displacement / Capacity | 1198 cc / 73.1 cu in |
| Bore X Stroke | 106 x 67.9 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 108.2 kW / 145 hp @ 8750 rpm |
| Max Torque | 124.5 Nm / 91.8 lb-ft @ 7250 rpm |
| Ignition | Marelli electronic |
| Induction | Electronic fuel injection, 53 mm throttle bodies, full ride-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | Wet multiplate, hydraulic control, self-servo on drive and slipper on over-run |
| Final Drive | Chain, 15T front / 41T rear sprocket |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis attached to the cylinder heads |
| Front Suspension | Fully adjustable Öhlins 48 mm USD forks, 130 mm / 5.1 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Öhlins monoshock, single-sided aluminium swingarm, 152 mm / 6.0 in travel |
| Front Brakes | 2 x 320 mm semi-floating discs, Brembo M4-32 monobloc 4-piston radial calipers, Bosch ABS |
| Rear Brakes | Single 245 mm disc, 2-piston floating caliper, Bosch ABS |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 785 - 810 mm / 30.9 - 31.9 in (adjustable) |
| Wheelbase | 1511 mm / 59.5 in |
| Ground Clearance | — |
| Dry Weight | 182 kg / 401 lb |
| Wet Weight | 209 kg / 461 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear Tyre | 190/55 ZR17 Pirelli Diablo Rosso II |
| FUEL SYSTEM | |
| Fuel Capacity | 17.5 Litres / 4.6 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2016 model-year continuation of the first-generation Monster 1200S, with the 145 hp Testastretta 11° DS engine, Öhlins 48 mm forks and shock, Brembo monobloc brakes and Y-spoke wheels. Fully equipped with ABS, traction control, riding modes and a TFT display.
