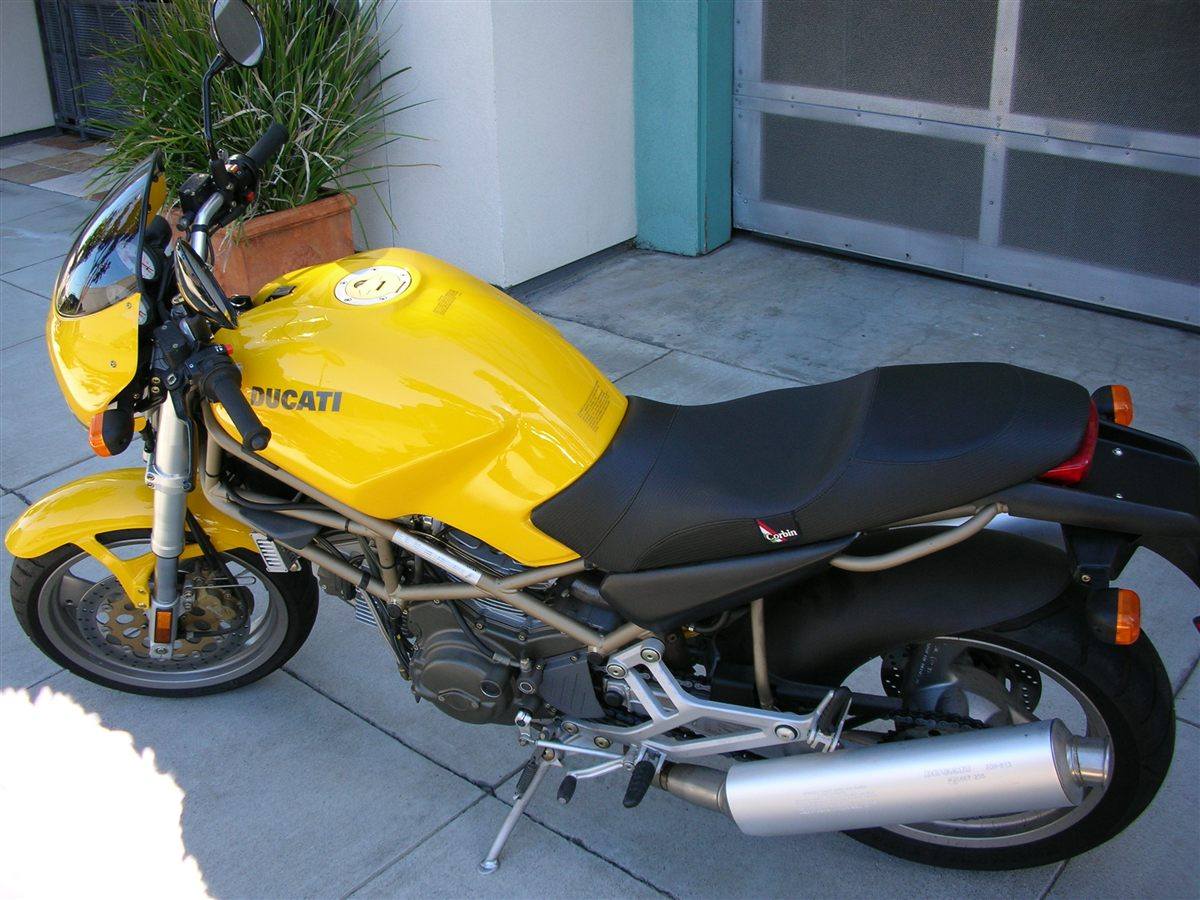

| MODEL | DUCATI MONSTER 750 1996 - 2001 |
| Year | 1996 - 2001 |
| Engine Type | 4-stroke, 90° L-twin, SOHC, desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 88 x 61.5 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 47.1 kW / 64 hp @ 7500 rpm (1996-97); 45.6 kW / 62 hp @ 7500 rpm (1998-2001) |
| Max Torque | 60.8 Nm / 44.8 lb-ft @ 6850 rpm |
| Ignition | Kokusan electronic |
| Induction | 2 x 38 mm Mikuni BDST 38 carburetors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet, multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis frame |
| Front Suspension | Inverted fork: 40 mm Marzocchi (1996-99); 43 mm Showa (2000-01) |
| Rear Suspension | Sachs Boge, progressive linkage, fully adjustable monoshock |
| Front Brakes | Single 320 mm disc, 4 piston caliper (1996-97); dual 320 mm discs, 4 piston calipers (1998-2001) |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2080 mm / 81.9 in |
| Overall Width | 800 mm / 31.5 in |
| Overall Height | 1030 mm / 40.6 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1430 mm / 56.3 in |
| Ground Clearance | — |
| Dry Weight | 178 kg / 392 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/60-17 |
| Rear Tyre | 160/60-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16.5 Litres / 4.4 US gal |
| Fuel Consumption | 6.0 L/100 km / 39.3 US mpg |
| Top Speed | 190 km/h / 118 mph |
Launched in 1996 as the middle Monster between the 600 and 900, it used the 748 SS engine with carburettors in a trellis frame derived from the 888. It started with a single front disc and 40 mm Marzocchi fork; from 1998 it had twin front discs, and from 2000 a 43 mm Showa fork. A comfortable, nimble town bike, less at ease on long trips.
