| MODEL | DUCATI MONSTER 796 2011 |
| Year | 2011 |
| Engine Type | Four stroke, 90° L twin cylinder, SOHC, desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 803 cc / 49.0 cu in |
| Bore X Stroke | 88 x 66 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Air cooled |
| Max Power | 64 kW / 87 hp @ 8250 rpm |
| Max Torque | 78.5 Nm / 58 lb-ft @ 6250 rpm |
| Ignition | Marelli electronic |
| Induction | Siemens electronic fuel injection, 45 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | APTC wet multiplate with hydraulic control |
| Final Drive | Chain; front sprocket 15, rear sprocket 39 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | Showa 43 mm upside-down forks, 120 mm / 4.7 in travel |
| Rear Suspension | Progressive linkage with fully adjustable Sachs monoshock, aluminium single-sided swingarm, 148 mm / 5.8 in travel |
| Front Brakes | 2 x 320 mm discs, 4 piston calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 800 mm / 31.5 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | — |
| Dry Weight | 167 kg / 369 lb (169 kg / 373 lb ABS version) |
| Wet Weight | 187 kg / 412 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal (13.5 Litres / 3.6 US gal ABS version) |
| Fuel Consumption | 5.2 L/100 km / 45 US mpg |
| Top Speed | 200.4 km/h / 124.5 mph |

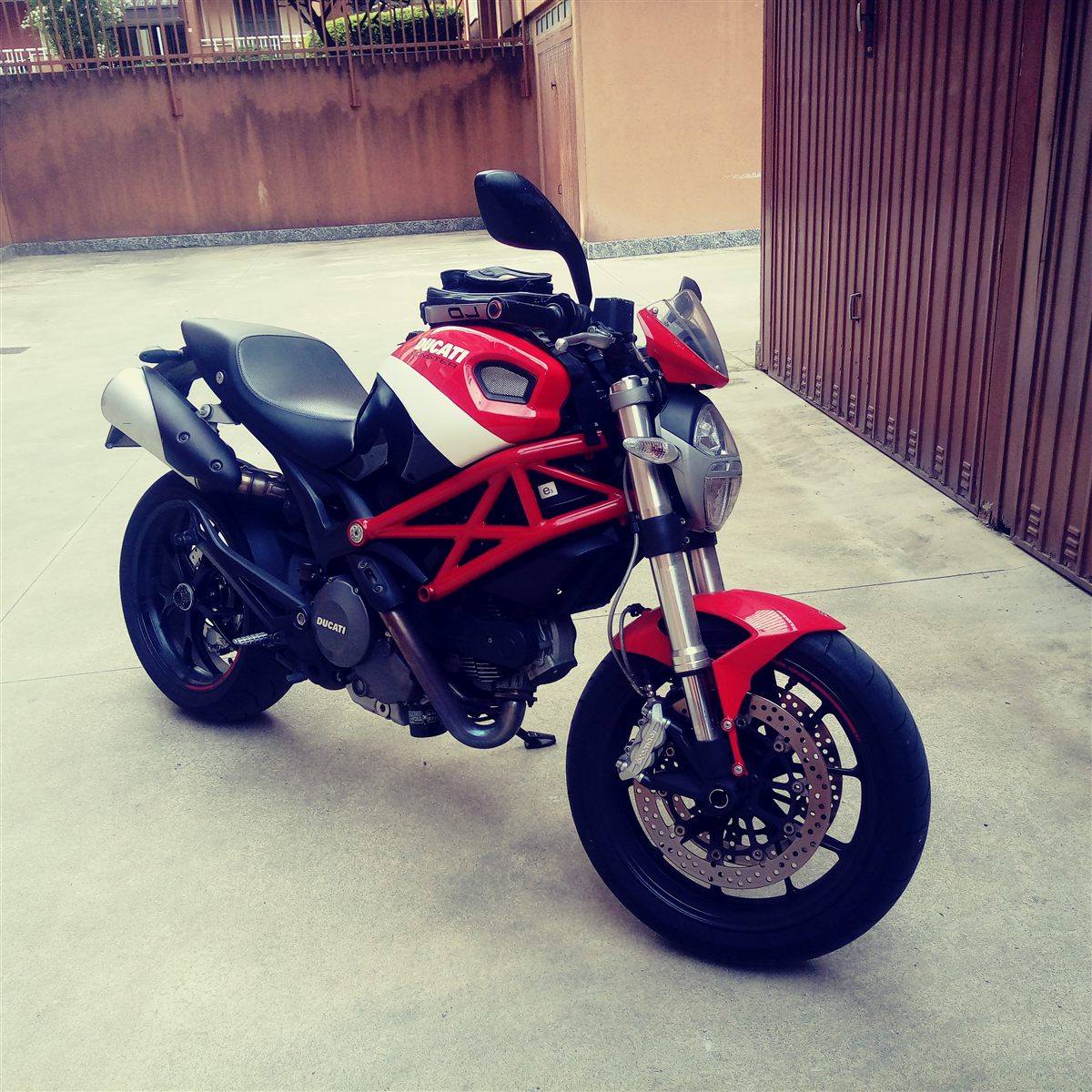

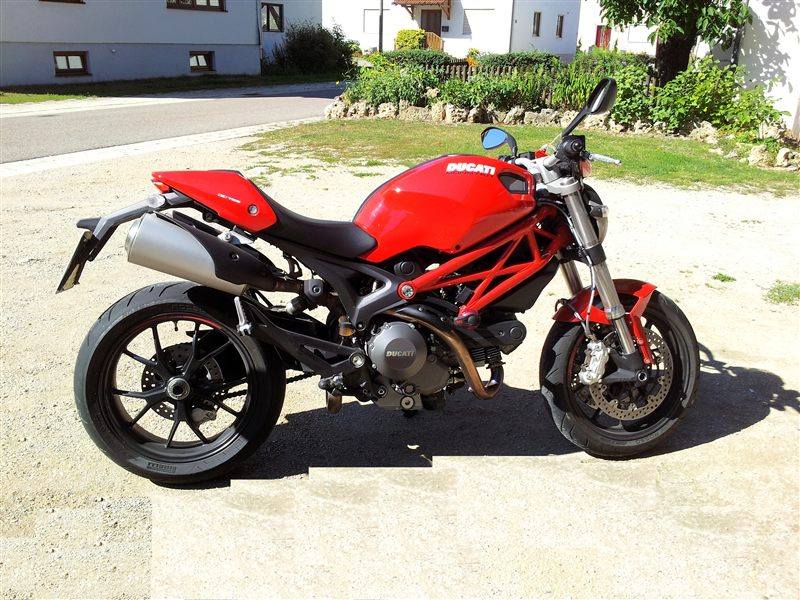

The 2011 Monster 796 carried over the 803 cc air-cooled Desmodue twin with 87 hp, a slipper clutch and a light trellis frame. It was the middle step of the Monster range, easier to ride than the 1100 but quicker than the 696. ABS remained optional and the Monster Art graphic packs offered extra colour schemes.
