DUCATI MONSTER 821 STRIPE 2015

DUCATI MONSTER 821 STRIPE 2015

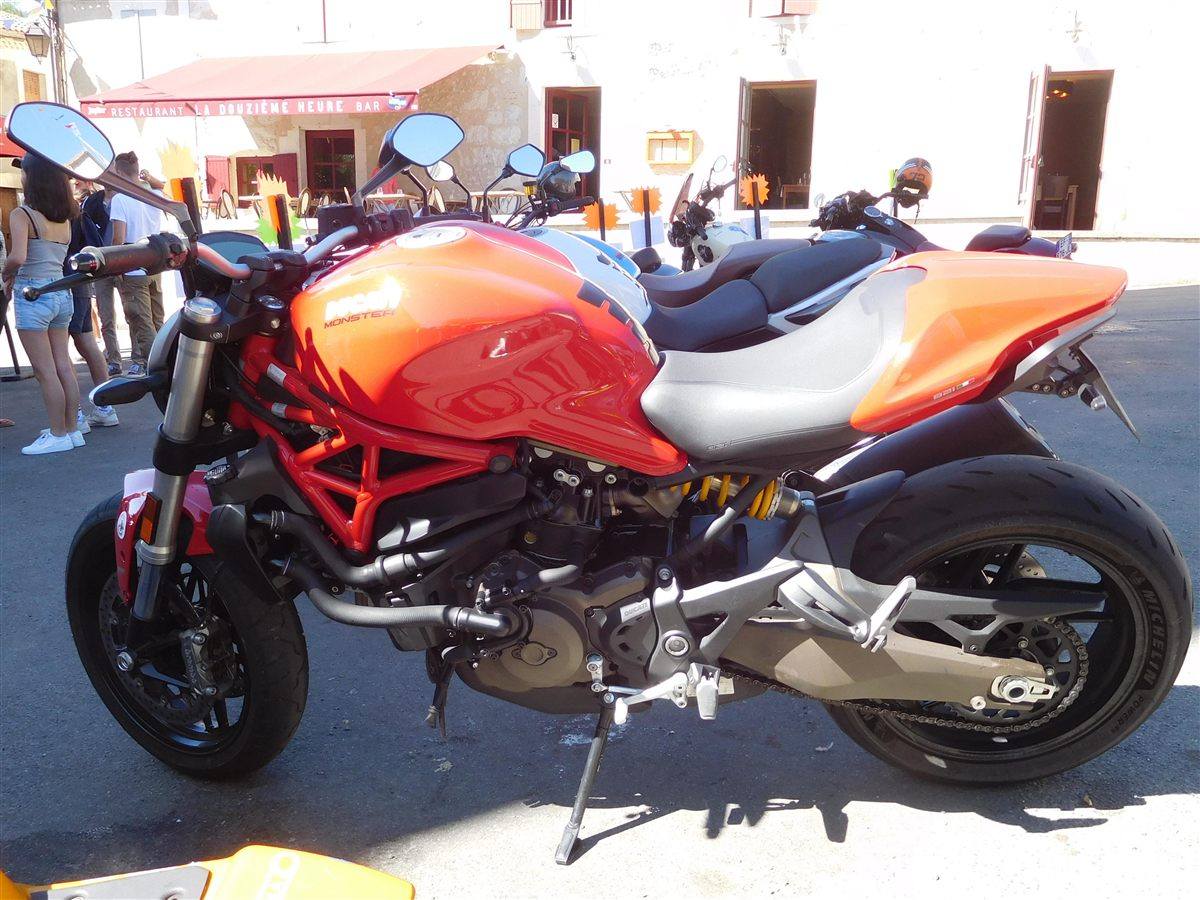

DUCATI MONSTER 821 STRIPE 2015 · Photo: Cjp24, CC BY-SA 4.0, via Wikimedia Commons
Spec sheet
MODELDUCATI MONSTER 821 STRIPE 2015
Year2015
Engine TypeFour stroke, Testastretta 11° L twin cylinder, 4 desmodromic valves per cylinder
Displacement / Capacity821 cc / 50.1 cu in
Bore X Stroke88 x 67.5 mm
Compression Ratio12.8:1
Cooling SystemLiquid cooled
Max Power82.4 kW / 112 hp @ 9250 rpm
Max Torque89.4 Nm / 65.8 lb-ft @ 7750 rpm
IgnitionMarelli electronic
InductionElectronic fuel injection, 53 mm throttle bodies, ride-by-wire
Start SystemElectric
TRANSMISSION SPECS
Lubrication—
Gear Box6 Speed
ClutchAPTC wet multi-disc slipper clutch, cable operated
Final DriveChain; front sprocket 15, rear sprocket 46
CHASSIS SPECS
FrameTubular steel trellis, attached to the cylinder heads
Front Suspension—
Rear Suspension—
Front Brakes2 x 320 mm semi-floating discs, Brembo M4-32 4 piston radial calipers, ABS
Rear BrakesSingle 245 mm disc, 2 piston floating caliper, ABS
DIMENSION SPECS
Overall Length—
Overall Width—
Overall Height—
Seat Height785 - 810 mm / 30.9 - 31.9 in
Wheelbase1480 mm / 58.3 in
Ground Clearance—
Dry Weight179.5 kg / 395.7 lb
Wet Weight205.5 kg / 453 lb
WHEEL SPECS
Front Tyre120/70 ZR17
Rear Tyre180/60 ZR17
FUEL SYSTEM
Fuel Capacity17.5 Litres / 4.6 US gal
Fuel Consumption—
Top Speed—
Ducati file

The Stripe was a limited, higher-spec Monster for 2015, offered on the 821 and 1200 S. The 821 Stripe wore red paint with a double white stripe over the mudguard, tank and seat cover, a red frame, black wheels and a red nose fairing with clear screen. It added a fully adjustable Kayaba fork on the otherwise unchanged 821 chassis and engine.
