DUCATI MONSTER 937 PLUS 2023

DUCATI MONSTER 937 PLUS 2023

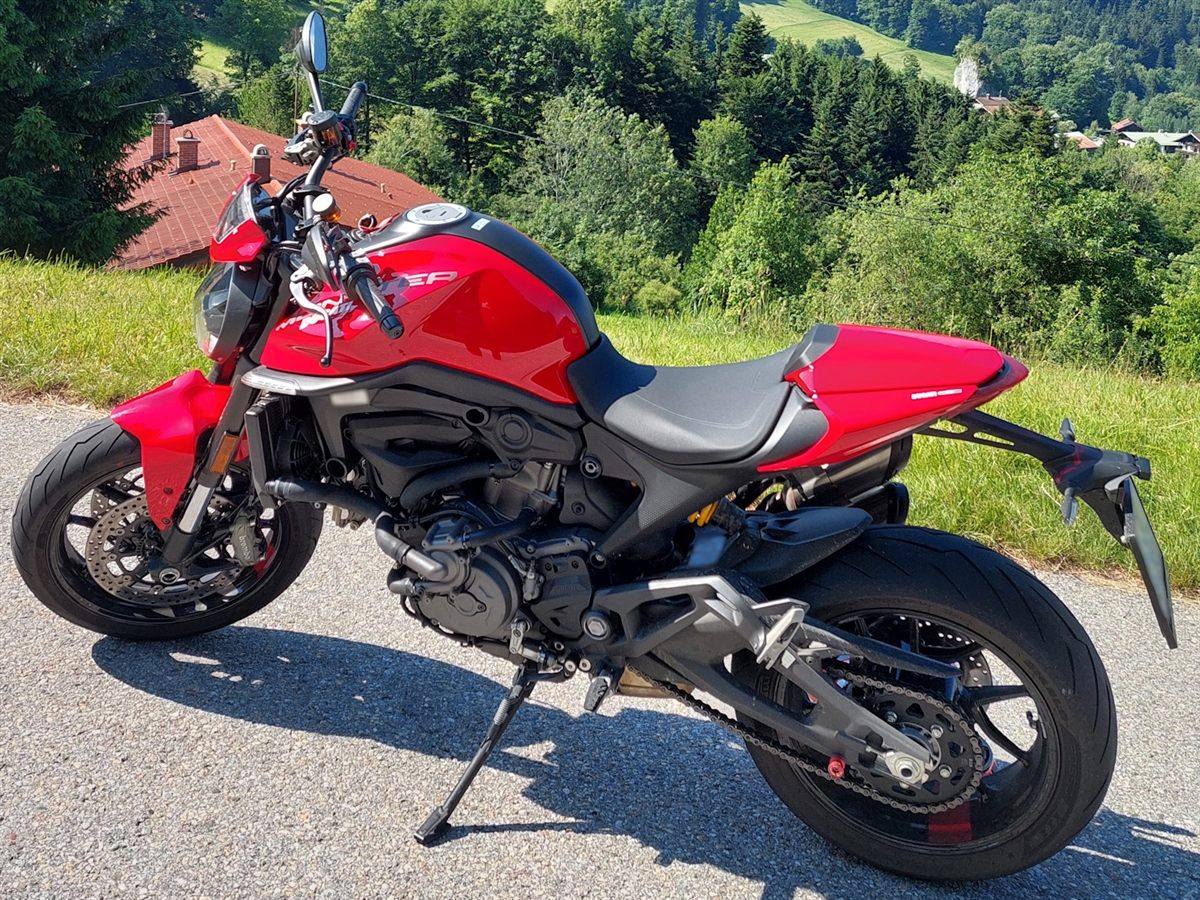

DUCATI MONSTER 937 PLUS 2023 · Photo: AnotherLocalAuthor, CC0, via Wikimedia Commons
Spec sheet
MODELDUCATI MONSTER 937 PLUS 2023
Year2023
Engine TypeFour stroke, Testastretta 11° L-Twin, DOHC, desmodromic, 4 valves per cylinder
Displacement / Capacity937 cc / 57.2 cu in
Bore X Stroke94 x 67.5 mm
Compression Ratio13.3:1
Cooling SystemLiquid cooled
Max Power82 kW / 111 hp @ 9250 rpm
Max Torque93 Nm / 69 lb-ft @ 6500 rpm
IgnitionElectronic
InductionElectronic fuel injection, 53 mm throttle bodies, Ride-by-Wire
Start SystemElectric
TRANSMISSION SPECS
Lubrication—
Gear Box6-speed
ClutchHydraulically controlled slipper and self-servo wet multiplate
Final DriveChain, 15T front / 43T rear
CHASSIS SPECS
FrameAluminium front frame
Front Suspension43 mm USD fork, 130 mm / 5.1 in travel
Rear SuspensionProgressive linkage, preload-adjustable monoshock, aluminium double-sided swingarm, 140 mm / 5.5 in travel
Front Brakes2 x 320 mm semi-floating discs, radial Brembo M4.32 monobloc 4-piston calipers, Bosch Cornering ABS
Rear Brakes245 mm disc, Brembo 2-piston floating caliper
DIMENSION SPECS
Overall Length—
Overall Width—
Overall Height—
Seat Height820 mm / 32.3 in (800 mm with low seat accessory)
Wheelbase1474 mm / 58.0 in
Ground Clearance—
Dry Weight166 kg / 366 lbs
Wet Weight188 kg / 414 lbs
WHEEL SPECS
Front Tyre120/70 ZR17 Pirelli Diablo Rosso III
Rear Tyre180/55 ZR17 Pirelli Diablo Rosso III
FUEL SYSTEM
Fuel Capacity14 Litres / 3.7 US gal
Fuel Consumption—
Top Speed—
Photo gallery
DUCATI MONSTER 937 PLUS 2023

Photo: AnotherLocalAuthor, CC0, via Wikimedia Commons

Ducati file

For 2023 the standard Monster, sold as the Plus with a small flyscreen and passenger-seat cover, got an Iceberg White and Ducati Red livery option and kept the 111 hp 937 cc twin. A 35 kW version remained available for A2 licence holders. It is the accessible, lightweight middle of the Monster range, below the Öhlins-equipped SP.
