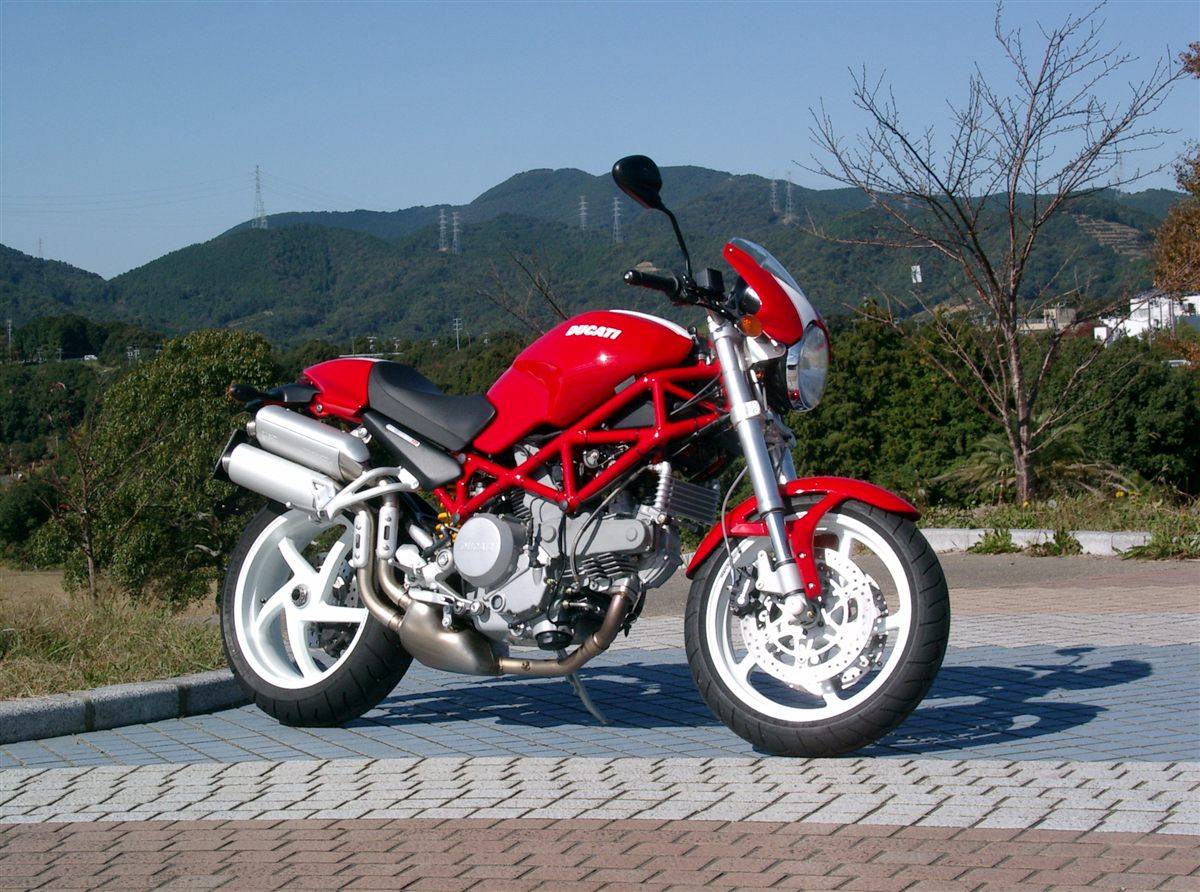

| MODEL | DUCATI MONSTER S2R 800 2005 |
| Year | 2005 |
| Engine Type | Four stroke, 90 degree L-twin, SOHC, desmodromic 2 valves per cylinder |
| Displacement / Capacity | 803 cc / 49.0 cu in |
| Bore X Stroke | 88 x 66 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Air cooled |
| Max Power | 56.7 kW / 77 hp @ 8250 rpm |
| Max Torque | 73 Nm / 7.4 kgf-m / 54 ft-lb @ 6500 rpm |
| Ignition | Marelli electronic |
| Induction | Fuel injection, 45 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | APTC wet multiplate with hydraulic control |
| Final Drive | Chain; front sprocket 15, rear sprocket 42 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 43 mm upside-down fork, non adjustable, 130 mm / 5.1 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Sachs monoshock, aluminium single-sided swingarm, 148 mm / 5.8 in travel |
| Front Brakes | 2 x 300 mm discs, 4 piston calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1440 mm / 56.7 in |
| Ground Clearance | — |
| Dry Weight | 179 kg / 395 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.6 US gal |
| Fuel Consumption | 5.2 L/100 km / 45 US mpg / 54 Imp mpg |
| Top Speed | 205.8 km/h / 127.9 mph |
The S2R 800 joined the Monster range in 2005 as the entry model of the S2R/S4R family, using the 803 cc air-cooled two-valve twin with the APTC slipper clutch. It brought the single-sided aluminium swingarm, five-spoke wheels and a high-mounted twin-silencer exhaust of the bigger models, plus a wide 180-section rear tyre. Reviewers liked its fun midrange and brakes, and disliked the stiff seat and lack of wind protection.
