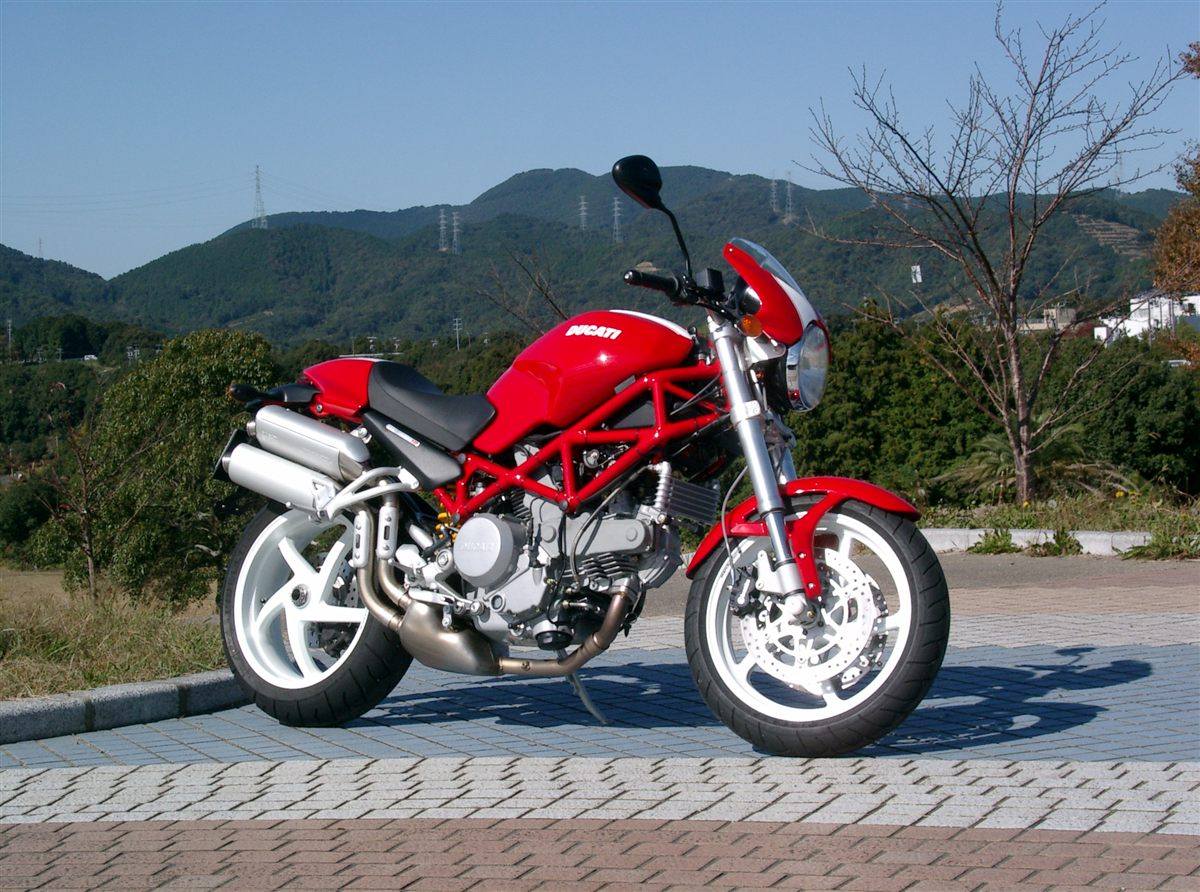

| MODEL | DUCATI MONSTER S2R 800 2006 |
| Year | 2006 |
| Engine Type | Four stroke, 90 degree L-twin, SOHC, desmodromic 2 valves per cylinder |
| Displacement / Capacity | 803 cc / 49.0 cu in |
| Bore X Stroke | 88 x 66 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Air cooled |
| Max Power | 56.7 kW / 77 hp @ 8250 rpm |
| Max Torque | 73 Nm / 7.4 kgf-m / 54 ft-lb @ 6500 rpm |
| Ignition | Marelli electronic |
| Induction | Fuel injection, 45 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | APTC wet multiplate with hydraulic control |
| Final Drive | Chain; front sprocket 15, rear sprocket 42 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 43 mm upside-down fork, non adjustable, 130 mm / 5.1 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Sachs monoshock, aluminium single-sided swingarm, 148 mm / 5.8 in travel |
| Front Brakes | 2 x 300 mm discs, 4 piston calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | 1440 mm / 56.7 in |
| Ground Clearance | — |
| Dry Weight | 179 kg / 395 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.6 US gal |
| Fuel Consumption | 5.2 L/100 km / 45 US mpg / 54 Imp mpg |
| Top Speed | 205.8 km/h / 127.9 mph |
For 2006 the S2R 800 continued as the smallest and cheapest of the S2R range, offered in three classic colour schemes alongside the matte Dark. It retained the 803 cc injected twin, upside-down fork and single-sided swingarm. The slipper clutch was noted as updated with a cush drive and twin primary sprocket.
