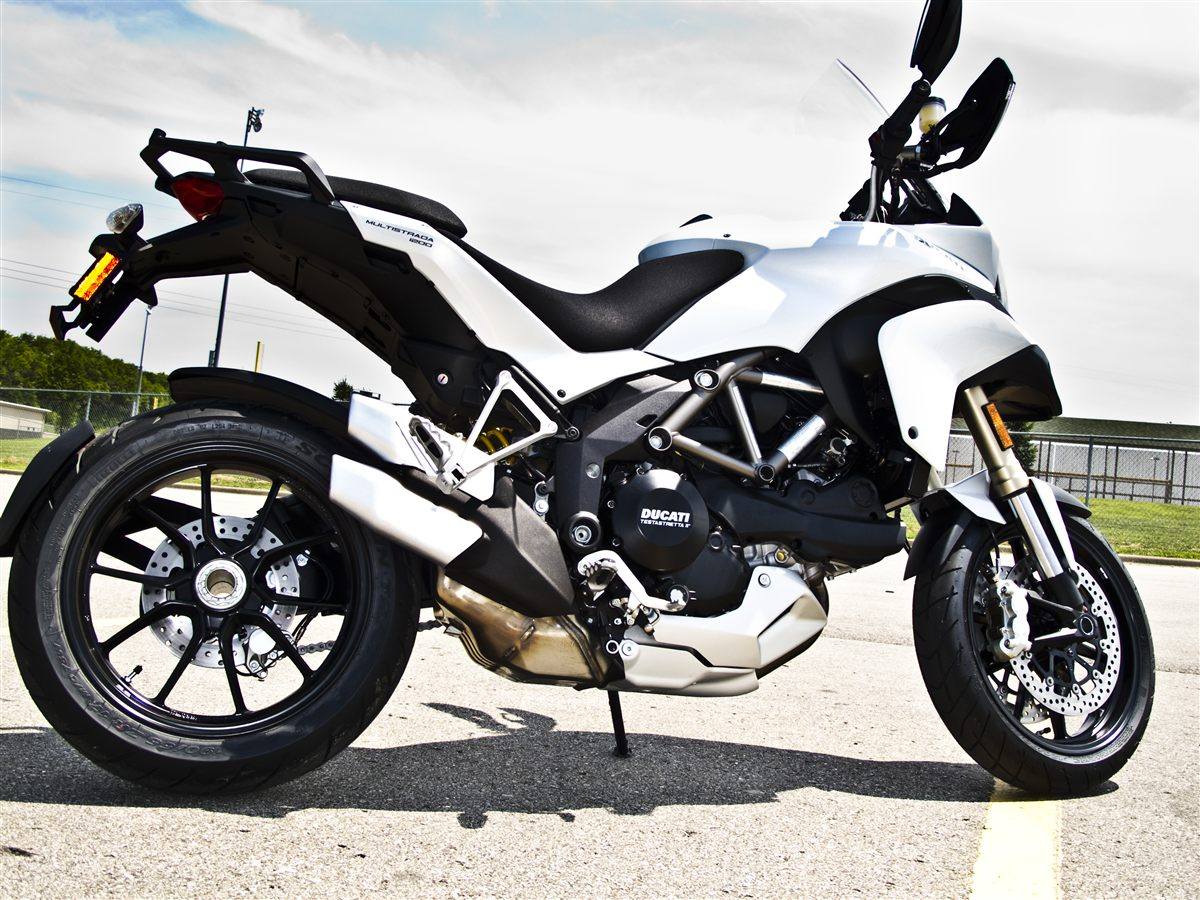

| MODEL | DUCATI MULTISTRADA 1200 2010 |
| Year | 2010 |
| Engine Type | 4-stroke, 90° L-twin, DOHC, desmodromic, 4 valves per cylinder |
| Displacement / Capacity | 1198.4 cc / 73.1 cu in |
| Bore X Stroke | 106 x 67.9 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 110.3 kW / 150 hp @ 9250 rpm |
| Max Torque | 118.7 Nm / 87.5 lb-ft @ 7500 rpm |
| Ignition | Marelli electronic |
| Induction | Mitsubishi electronic fuel injection, Mikuni elliptical throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | Wet multiplate, hydraulic control, slipper function |
| Final Drive | Chain #530, 15T front / 40T rear sprocket |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 50 mm Marzocchi fully adjustable USD fork, 170 mm / 6.7 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Sachs monoshock, single-sided aluminium swingarm, 170 mm / 6.7 in travel |
| Front Brakes | 2 x 320 mm semi-floating discs, radial Brembo 4-piston calipers, ABS |
| Rear Brakes | Single 245 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2200 mm / 86.6 in |
| Overall Width | 945 mm / 37.2 in |
| Overall Height | 1310 mm / 51.5 in |
| Seat Height | 850 mm / 33.4 in |
| Wheelbase | 1530 mm / 60.2 in |
| Ground Clearance | — |
| Dry Weight | 188 kg / 417 lb |
| Wet Weight | 217 kg / 478 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal / 4.4 Imp gal |
| Fuel Consumption | — |
| Top Speed | — |
The Multistrada 1200 launched for 2010 as Ducati's reworked take on the sport-touring adventure idea, built around a detuned Testastretta 11° version of the 1198 superbike twin. Four riding modes (Sport, Touring, Urban, Enduro) alter power delivery and traction control, and ABS and ride-by-wire are standard. The base bike has conventional Marzocchi/Sachs suspension, while the S gets electronic Öhlins.
