| MODEL | DUCATI MULTISTRADA 1260 ENDURO 2020 |
| Year | 2020 |
| Engine Type | 4-stroke, 90° L-twin, Testastretta DVT (desmodromic variable timing), DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1262 cc / 77.0 cu in |
| Bore X Stroke | 106 x 71.5 mm |
| Compression Ratio | 13.0:1 |
| Cooling System | Liquid |
| Max Power | 116.2 kW / 158 hp @ 9500 rpm |
| Max Torque | 128 Nm / 94 lb-ft @ 7500 rpm |
| Ignition | Marelli electronic |
| Induction | Bosch electronic fuel injection, elliptical throttle bodies, ride-by-wire, 56 mm equivalent diameter |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet multiplate, hydraulic, with slipper and self-servo function |
| Final Drive | Chain, 15T front / 40T rear |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 48 mm USD Sachs fork, semi-active electronic, 185.5 mm travel |
| Rear Suspension | Sachs semi-active electronic shock, 185.5 mm travel |
| Front Brakes | 2 x 330 mm discs, Brembo monobloc 4-piston calipers, cornering ABS |
| Rear Brakes | Single 265 mm disc, 2-piston floating caliper, cornering ABS |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 861 - 880 mm |
| Wheelbase | 1592 mm |
| Ground Clearance | 205 mm |
| Dry Weight | 225 kg / 496 lb |
| Wet Weight | 254 kg / 560 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 R19 (Pirelli Scorpion Trail) |
| Rear Tyre | 170/60 R17 (Pirelli Scorpion Trail) |
| FUEL SYSTEM | |
| Fuel Capacity | 30 Litres / 7.9 US gal |
| Fuel Consumption | 5.5 L/100 km |
| Top Speed | — |

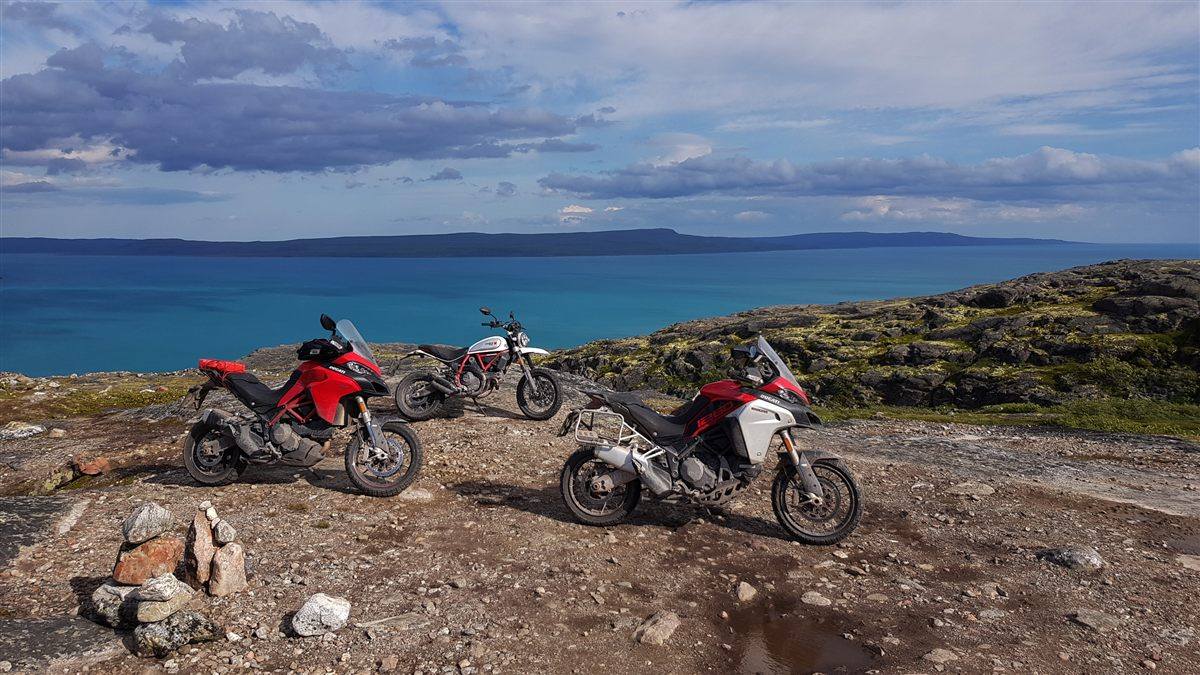

The Enduro is the long-travel, spoked-wheel adventure version of the 1260, with a 19-inch front wheel, a 30-litre tank and semi-active Sachs suspension. It keeps the 1262 cc Testastretta DVT engine and adds off-road-oriented electronics and Vehicle Hold Control. Service intervals were stretched to 15,000 km.
