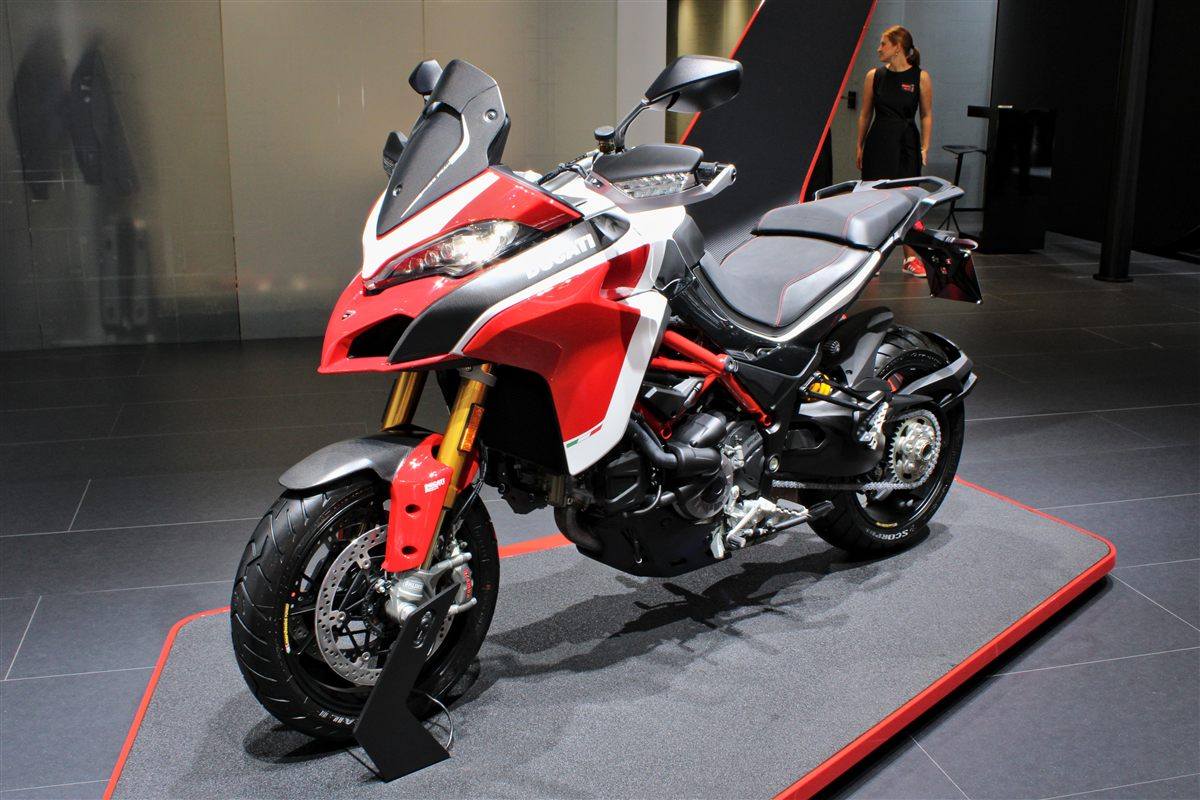

| MODEL | DUCATI MULTISTRADA 1260S PIKES PEAK 2020 |
| Year | 2020 |
| Engine Type | 4-stroke, 90° L-twin, Testastretta DVT (desmodromic variable timing), DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1262 cc / 77.0 cu in |
| Bore X Stroke | 106 x 71.5 mm |
| Compression Ratio | 13.0:1 |
| Cooling System | Liquid |
| Max Power | 116.2 kW / 156 hp @ 9500 rpm |
| Max Torque | 130 Nm / 96 lb-ft @ 7500 rpm |
| Ignition | Marelli electronic |
| Induction | Bosch electronic fuel injection, elliptical throttle bodies, ride-by-wire, 56 mm equivalent diameter |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet multiplate, hydraulic, with slipper and self-servo function |
| Final Drive | Chain, 15T front / 40T rear |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 48 mm fully adjustable Öhlins USD fork, 170 mm travel |
| Rear Suspension | Fully adjustable Öhlins TTX36 shock, single-sided aluminium swingarm, 170 mm travel |
| Front Brakes | 2 x 320 mm semi-floating discs, Brembo radial monobloc 4-piston calipers, cornering ABS |
| Rear Brakes | Single 265 mm disc, 2-piston floating caliper, cornering ABS |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 825 - 845 mm / 32.5 - 33.3 in |
| Wheelbase | 1529 mm / 60.2 in |
| Ground Clearance | — |
| Dry Weight | 206 kg / 454 lb |
| Wet Weight | 229 kg / 505 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 R17 (Pirelli Scorpion Trail II) |
| Rear Tyre | 190/55 R17 (Pirelli Scorpion Trail II) |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The Pikes Peak edition is the sport-flavoured 1260 S, with a Desmosedici-style racing livery, lightweight forged wheels, Öhlins suspension and carbon-fibre parts. It has sharper front-end geometry and a longer swingarm than the base bike, tying in with Ducati's wins at the Pikes Peak hill climb. Engine and electronics are those of the 1260 family.
