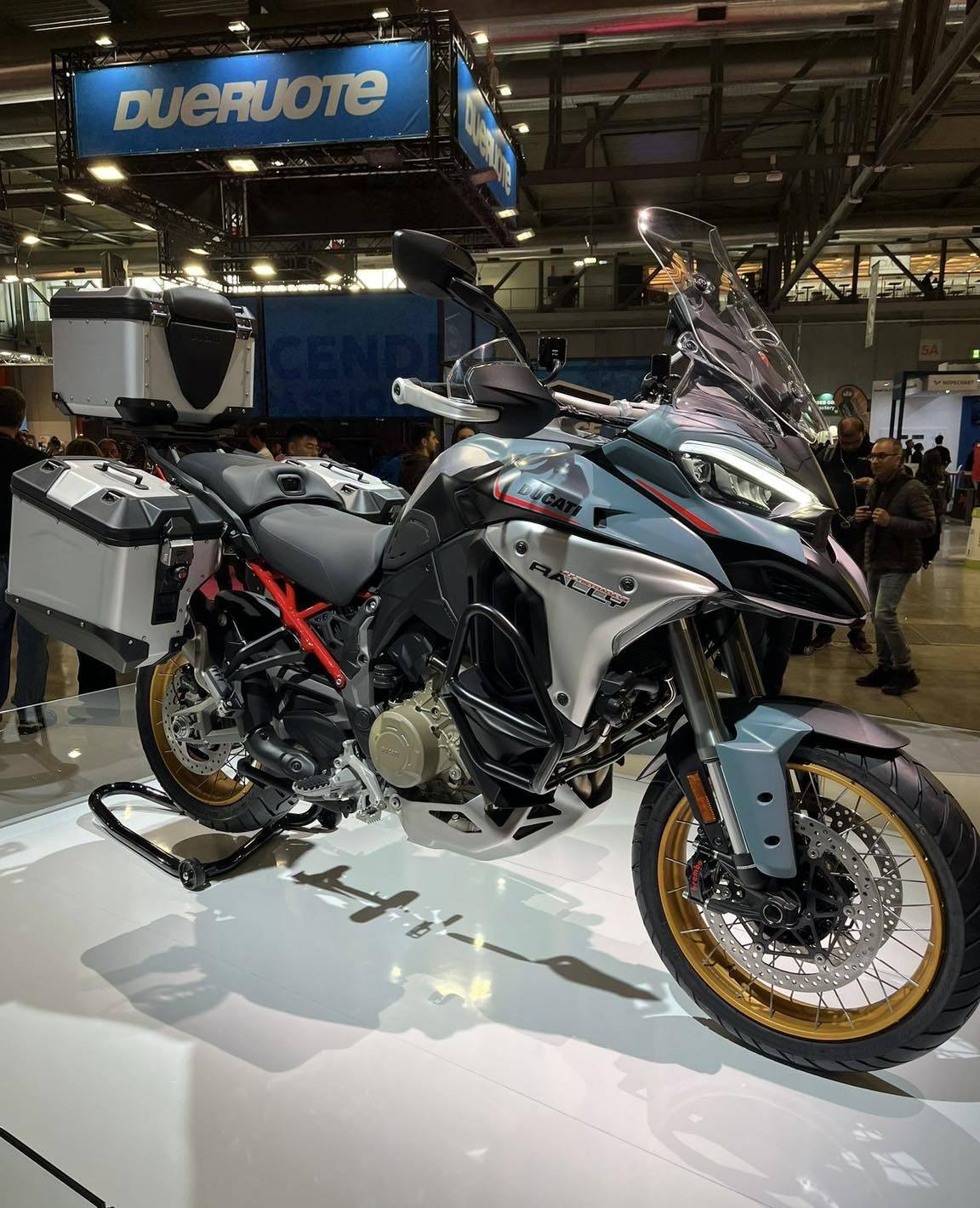

| MODEL | DUCATI MULTISTRADA V4 RALLY 2023 |
| Year | 2023 |
| Engine Type | 4-stroke, 90° V4 Granturismo, counter-rotating crankshaft, 4 valves per cylinder, Euro 5 |
| Displacement / Capacity | 1158 cc / 70.7 cu in |
| Bore X Stroke | 83 x 53.5 mm |
| Compression Ratio | 14.0:1 |
| Cooling System | Liquid |
| Max Power | 125 kW / 170 hp @ 10750 rpm |
| Max Torque | 121 Nm @ 8750 rpm |
| Ignition | — |
| Induction | Electronic fuel injection, 46 mm throttle bodies, ride-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed with Ducati Quick Shift up/down |
| Clutch | Wet multiplate, hydraulic, slipper function |
| Final Drive | Chain, 16T front / 42T rear |
| CHASSIS SPECS | |
| Frame | Aluminium monocoque, double-sided aluminium swingarm |
| Front Suspension | 50 mm fully adjustable USD fork, electronic, 200 mm travel |
| Rear Suspension | Fully adjustable electronic monoshock, double-sided aluminium swingarm, 200 mm travel |
| Front Brakes | 2 x 330 mm discs, Brembo M50 Stylema 4-piston calipers, cornering ABS |
| Rear Brakes | Single 265 mm disc, 2-piston caliper, cornering ABS |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 870 - 890 mm |
| Wheelbase | 1572 mm |
| Ground Clearance | — |
| Dry Weight | 227 kg |
| Wet Weight | 260 kg |
| WHEEL SPECS | |
| Front Tyre | 120/70 R19 (Pirelli Scorpion Trail II) |
| Rear Tyre | 170/60 R17 (Pirelli Scorpion Trail II) |
| FUEL SYSTEM | |
| Fuel Capacity | 30 Litres / 7.9 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The Rally is the long-travel, spoked-wheel adventure take on the V4, with a 30-litre tank, centre stand, taller screen and an Enduro mode that cuts output to 114 hp. It debuted cylinder deactivation while riding, plus auto-levelling and an Easy Lift function.
