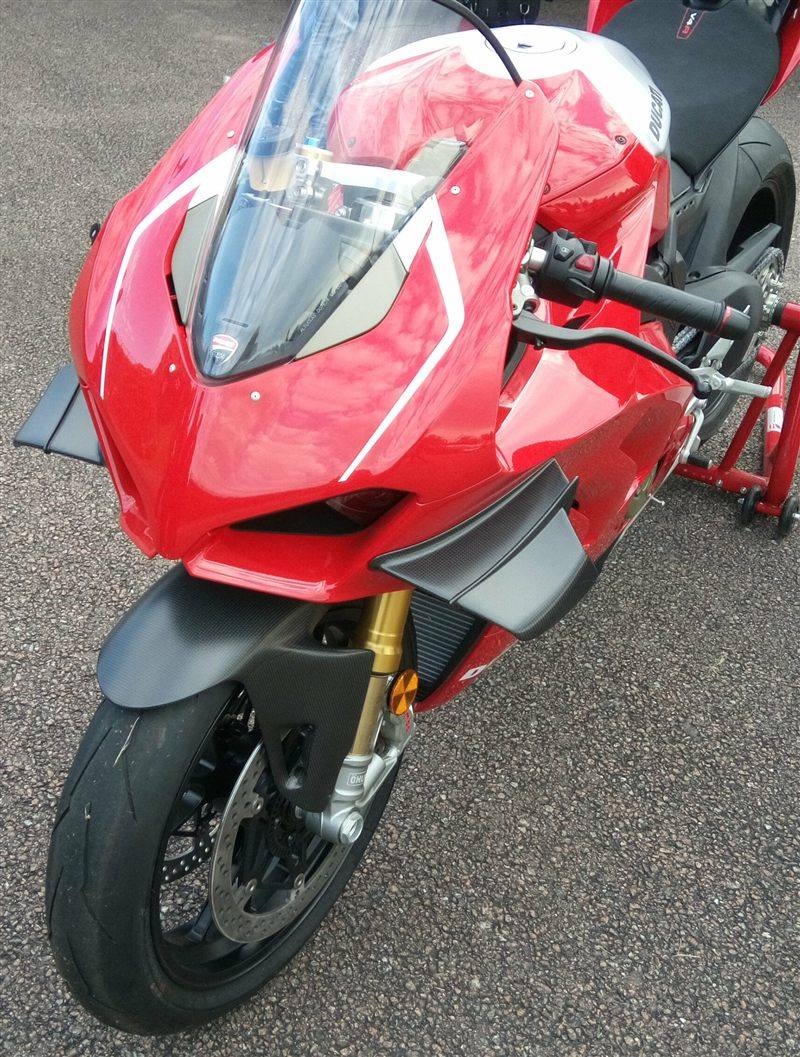

| MODEL | DUCATI PANIGALE V4 R 2019 |
| Year | 2019 |
| Engine Type | 4-stroke, 90° V4 (Desmosedici Stradale), counter-rotating crankshaft, 4 desmodromic valves per cylinder |
| Displacement / Capacity | 998 cc / 60.9 cu in |
| Bore X Stroke | 81 x 48.4 mm |
| Compression Ratio | 14.0:1 |
| Cooling System | Liquid |
| Max Power | 162 kW / 221 hp @ 15250 rpm (172 kW / 231 hp @ 15500 rpm with Akrapovic exhaust) |
| Max Torque | 112 Nm / 83 lb-ft @ 11500 rpm |
| Ignition | — |
| Induction | Electronic fuel injection, twin injectors per cylinder, ride-by-wire elliptical throttle bodies, variable-length intake |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed with Ducati Quick Shift up/down EVO |
| Clutch | Hydraulic slipper and self-servo wet multiplate |
| Final Drive | Chain, 15T front / 42T rear |
| CHASSIS SPECS | |
| Frame | Aluminium alloy Front Frame |
| Front Suspension | Fully adjustable Öhlins NPX 25/30 43 mm pressurised fork, 120 mm travel |
| Rear Suspension | Fully adjustable Öhlins TTX36 shock, single-sided aluminium swingarm, 130 mm travel |
| Front Brakes | 2 x 330 mm semi-floating discs, Brembo Monobloc Stylema 4-piston calipers, Bosch Cornering ABS EVO |
| Rear Brakes | Single 245 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 830 mm / 32.7 in |
| Wheelbase | 1471 mm / 57.9 in |
| Ground Clearance | — |
| Dry Weight | 172 kg / 379 lb |
| Wet Weight | 193 kg / 425 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 200/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The homologation special for 2019 World Superbike. Its V4 is cut to 998 cc with a shorter stroke, titanium rods and a 16,000+ rpm limit. It adds an aero pack with winglets, a mechanically adjustable Öhlins package and a four-position swingarm pivot, aimed at racers.
