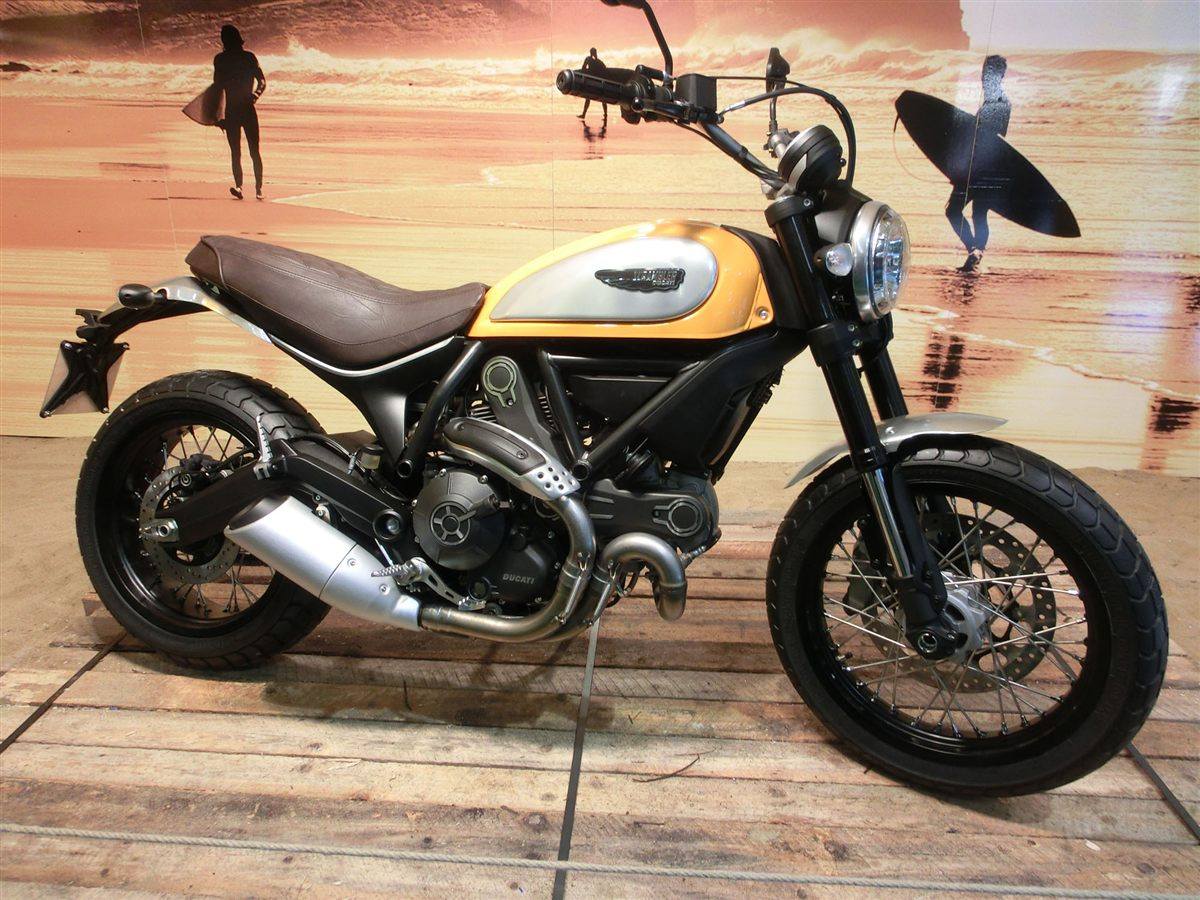

| MODEL | DUCATI SCRAMBLER 800 CLASSIC 2017 |
| Year | 2017 |
| Engine Type | Air-cooled 90° L-twin, 4-stroke, SOHC, Desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 803 cc / 49.0 cu in |
| Bore X Stroke | 88 x 66 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Air-cooled |
| Max Power | 55 kW / 75 hp @ 8250 rpm |
| Max Torque | 68 Nm / 50 lb-ft @ 5750 rpm |
| Ignition | Electronic (Marelli) |
| Induction | Electronic fuel injection, 50 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | Wet multiplate APTC, mechanical control |
| Final Drive | Chain, 15T front / 46T rear sprockets |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis frame |
| Front Suspension | 41 mm Kayaba upside-down fork, 150 mm / 5.9 in travel |
| Rear Suspension | Kayaba shock, preload adjustable, 150 mm / 5.9 in travel |
| Front Brakes | 330 mm disc, 4-piston caliper, ABS |
| Rear Brakes | 245 mm disc, 1-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2100 - 2165 mm / 82.7 - 85.2 in |
| Overall Width | 845 mm / 33.3 in |
| Overall Height | 1150 mm / 45.3 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | — |
| Dry Weight | 170 kg / 375 lb |
| Wet Weight | 186 kg / 410 lb |
| WHEEL SPECS | |
| Front Tyre | 110/80 R18 Pirelli MT 60 RS |
| Rear Tyre | 180/55 R17 Pirelli MT 60 RS |
| FUEL SYSTEM | |
| Fuel Capacity | 13.5 Litres / 3.57 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2017 Classic continues the 1970s-flavoured Scrambler with traditional metal mudguards, tank graphics copied from the original 1970s bike and a brown seat with diamond stitching; a Sugar White colour was also offered. Mechanically it is the 803 cc twin used across the Scrambler range, sold around the 'ingredients' accessory and apparel concept.
