| MODEL | DUCATI SCRAMBLER 800 URBAN ENDURO 2015 - 2016 |
| Year | 2015 - 2016 |
| Engine Type | Four-stroke, 90° L-twin, SOHC, desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 803 cc / 49.0 cu in |
| Bore X Stroke | 88 x 66 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Air cooled |
| Max Power | 55 kW / 75 hp @ 8250 rpm |
| Max Torque | 68 Nm / 50 lb-ft @ 5750 rpm |
| Ignition | Marelli electronic |
| Induction | Electronic fuel injection, 50 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | APTC wet multiplate, mechanical control |
| Final Drive | Chain, 15T front sprocket, 46T rear sprocket |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 41 mm Kayaba USD fork, 150 mm / 5.9 in travel |
| Rear Suspension | Kayaba monoshock, preload adjustable, 150 mm / 5.9 in travel |
| Front Brakes | Single 330 mm disc, 4-piston caliper, ABS |
| Rear Brakes | Single 245 mm disc, 1-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2100 - 2165 mm / 82.7 - 85.2 in |
| Overall Width | 845 mm / 33.3 in |
| Overall Height | 1150 mm / 45.3 in |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | — |
| Dry Weight | 170 kg / 375 lb |
| Wet Weight | 186 kg / 410 lb |
| WHEEL SPECS | |
| Front Tyre | 110/80 R18 Pirelli MT 60 RS |
| Rear Tyre | 180/55 R17 Pirelli MT 60 RS |
| FUEL SYSTEM | |
| Fuel Capacity | 13.5 Litres / 3.57 US gal |
| Fuel Consumption | — |
| Top Speed | — |

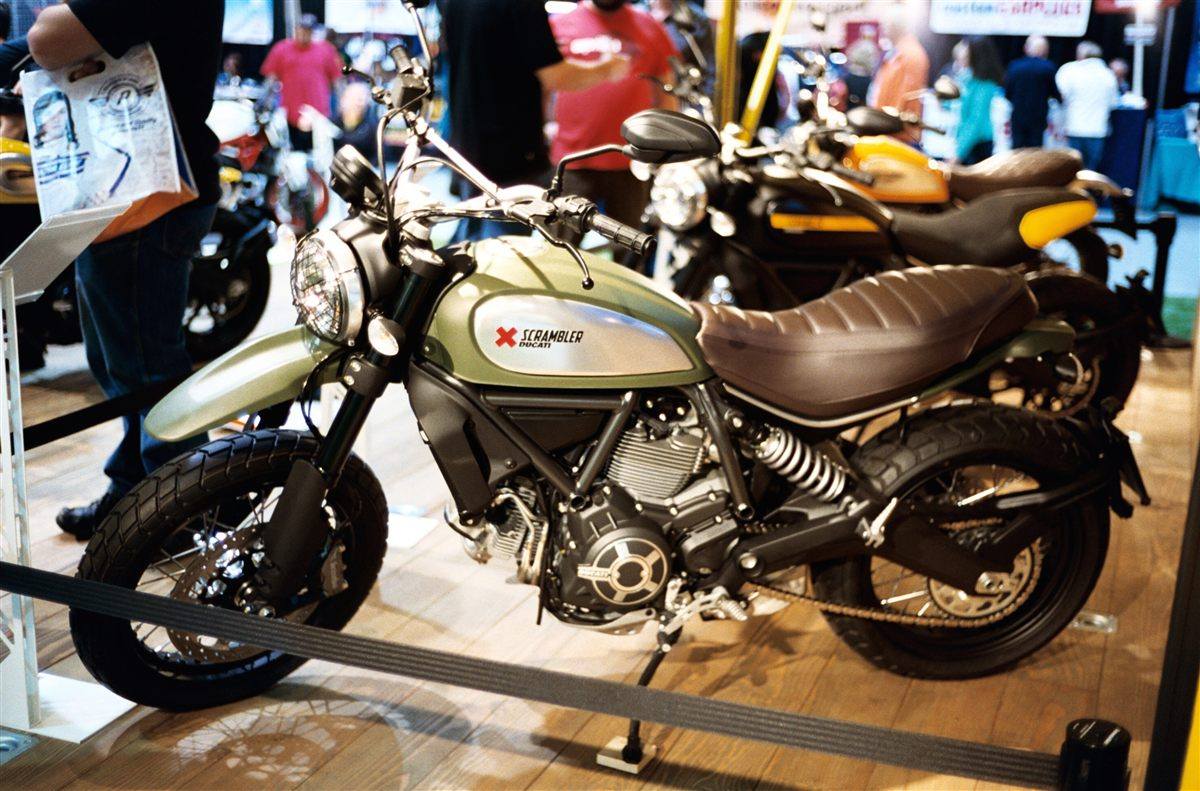

The Urban Enduro was the off-road-flavoured 2015 Scrambler, in Wild Green with a wide bar, high-set mudguard and long seat. It uses the 803 cc air-cooled desmo twin and the same steel trellis frame as the other first-year Scramblers. Dual-channel ABS is standard.
