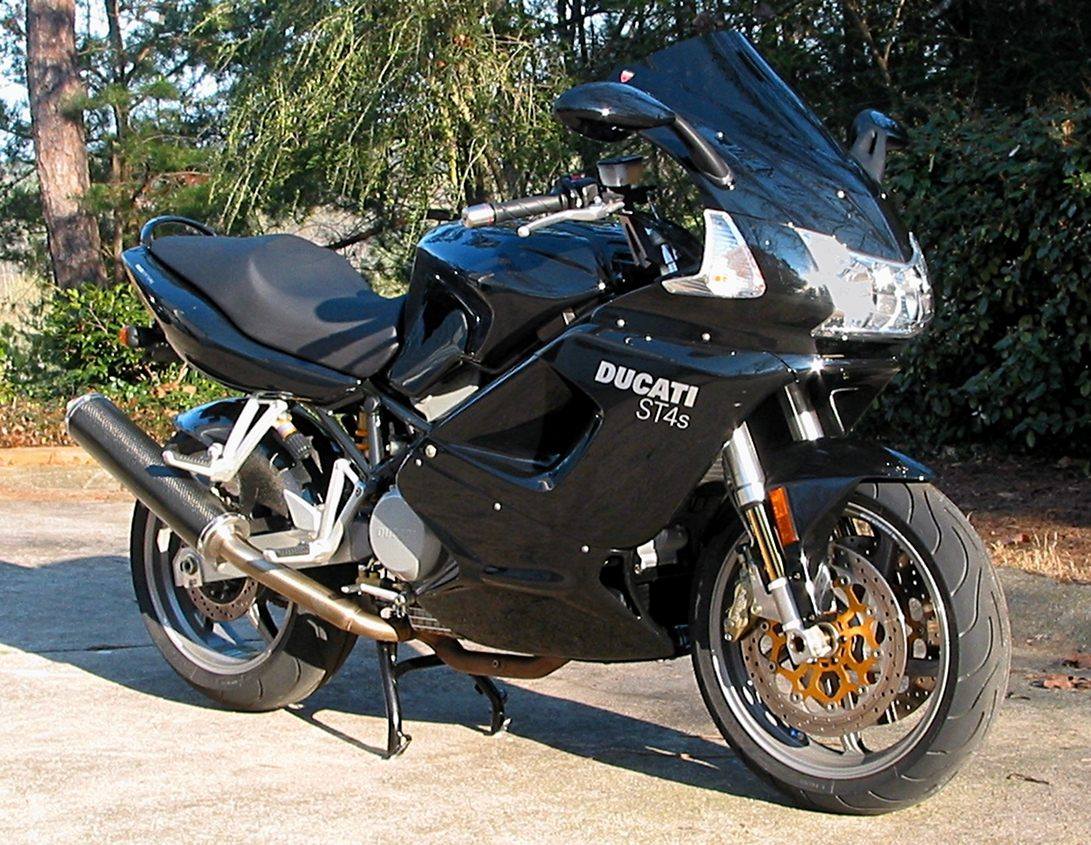

| MODEL | DUCATI ST4S ABS 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Four-stroke, 90° L-twin, DOHC, desmodromic, 4 valves per cylinder |
| Displacement / Capacity | 996 cc / 60.8 cu in |
| Bore X Stroke | 98 x 66 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 85.3 kW / 117 hp @ 8750 rpm |
| Max Torque | 98 Nm / 10 kgf-m / 72.2 lb-ft @ 7000 rpm |
| Ignition | Marelli electronic |
| Induction | Fuel injection, 50 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Wet multiplate, hydraulic control |
| Final Drive | Chain; front sprocket 15, rear sprocket 38 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | Showa 43 mm fully adjustable upside-down fork with TiN treatment; 130 mm / 5.1 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Öhlins monoshock with remote preload adjustment, aluminium swingarm; 148 mm / 5.8 in travel |
| Front Brakes | 2 x 320 mm discs, 4-piston calipers, ABS |
| Rear Brakes | Single 245 mm disc, 2-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2070 mm / 81.4 in |
| Overall Width | 910 mm / 35.8 in |
| Overall Height | 1274 mm / 50.2 in |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1430 mm / 56.3 in |
| Ground Clearance | — |
| Dry Weight | 217 kg / 478 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 4.8 L/100 km / 50 US mpg |
| Top Speed | 249 km/h / 155 mph |
The 2005 ST4S ABS carried over the 996 cc sport-tourer with ABS, now with the new oil-bath wet clutch for easier maintenance. It stayed the flagship of the ST family, with superbike-derived trellis frame, upside-down fork and Öhlins shock. 2006 was the last year before the 996 engine was dropped in favour of the ST3s.
