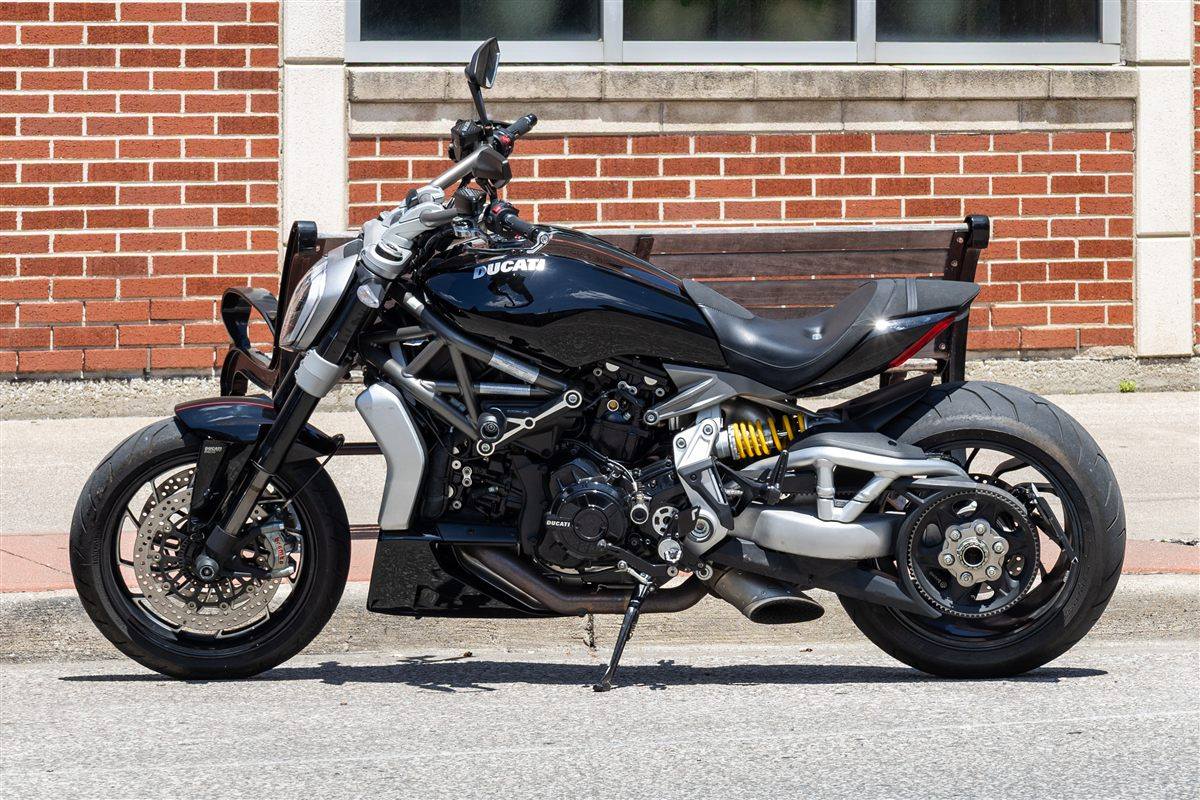

| MODEL | DUCATI XDIAVEL V4 2025 |
| Year | 2025 |
| Engine Type | Ducati V4 Granturismo 90° V4, 4-stroke, counter-rotating crankshaft, 4 desmodromic valves per cylinder, Twin Pulse, cylinder deactivation |
| Displacement / Capacity | 1158 cc / 70.7 cu in |
| Bore X Stroke | 83 x 53.5 mm |
| Compression Ratio | 14.0:1 |
| Cooling System | Liquid |
| Max Power | 125 kW / 168 hp @ 10750 rpm |
| Max Torque | 126 Nm / 93 lb-ft @ 7500 rpm |
| Ignition | — |
| Induction | Electronic fuel injection, 46 mm elliptical throttle bodies, ride-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed with Ducati Quick Shift up/down |
| Clutch | Wet multiplate, slipper and self-servo, hydraulic |
| Final Drive | Chain, 16T front / 43T rear |
| CHASSIS SPECS | |
| Frame | Aluminium monocoque, engine as stressed member, single-sided aluminium swingarm |
| Front Suspension | 50 mm fully adjustable upside-down fork, 120 mm / 4.7 in travel |
| Rear Suspension | Fully adjustable monoshock, 145 mm / 5.7 in travel |
| Front Brakes | 2 x 330 mm semi-floating discs, Brembo Stylema monobloc 4-piston radial calipers, cornering ABS |
| Rear Brakes | 265 mm disc, Brembo 2-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1620 mm / 63.8 in |
| Ground Clearance | — |
| Dry Weight | 229 kg / 504 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 240/45 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The V4-powered successor to the 1262 cc XDiavel, a techno-cruiser with forward-set controls and a fat 240-section rear tyre. It trades the old L-twin for the 1158 cc Granturismo V4 that shuts down its rear cylinders at idle, and moves to an aluminium monocoque frame with chain drive instead of a belt. Rider aids include cornering ABS, traction and wheelie control and a quickshifter.
