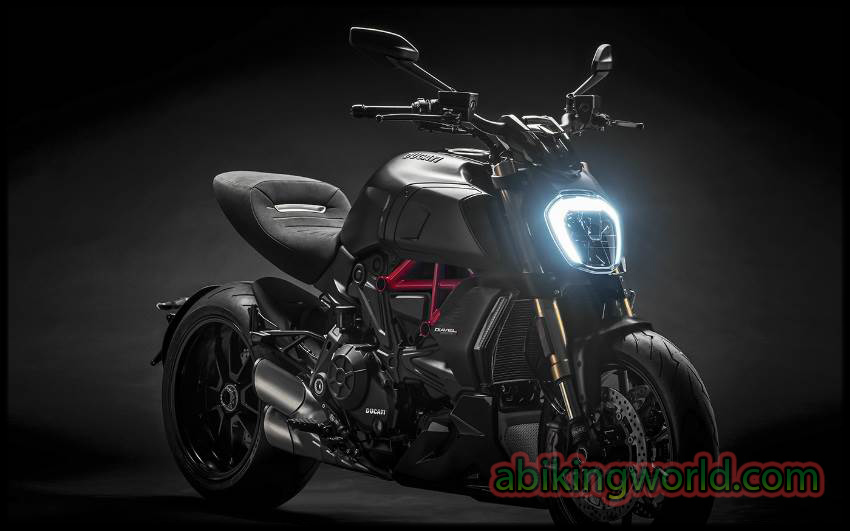

| MODEL | DUCATI DIAVEL 1260 S |
| ENGINE TYPE | Four stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, / 4 Desmodromically actuated valves per cylinder, dual spark |
| Year | 2019 |
| Displacement / Capacity | 1262 cc / 77 cu in |
| Bore X Stroke | 106 x 71.5 mm |
| Compression Ratio | 13.0:1 |
| Cooling System | Liquid Cooled |
| Max Power | 159 hp / 117 kW @ 9500 rpm |
| Max Torque | 128.9 Nm / 95 lb-ft @ 7500 rpm |
| Ignition | Electronic |
| Induction | Electronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-Speed |
| Clutch | Slipper and self-servo wet multiplate clutch with hydraulic control |
| Primary / Final Drive | Final Drive : Chain, Front sprocket Z15, Rear sprocket Z43 / Primary Drive : Straight cut gears, Ratio 1.84:1 |
| Secondary drive | — |
| Gear Ratio | 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 22/25 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis frame |
| Front Suspension | 48mm fully adjustable Öhlins |
| Rear Suspension | Öhlins, fully adjustable |

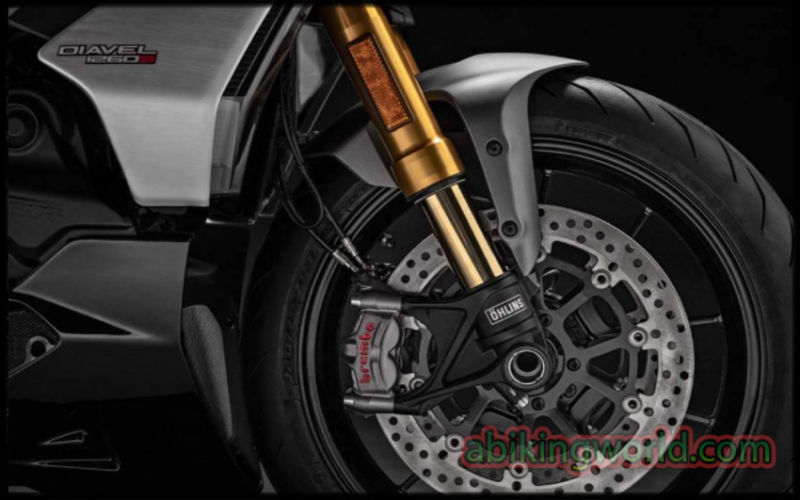

| Brakes | Front Brakes: Brembo M50 monobloc calipers & PR16/19 radial master cylinder. / / Rear Brakes : Single 265mm disc, 2-piston Brembo floating calliper / / ABS: Cornering ABS Evo |
| Traction Management | — |
| Exhaust System | Stainless steel pipes and single muffler with twin tail pipes, Catalytic converter and 2 lambda probes |
| DIMENSION SPECS | |
| Overall Length | — |
| Seat Height | 780 mm / 30.7 in |
| Overall Height | — |
| Overall Width | — |
| Overall Weight | Dry Weight - 214 kg / 481 lbs / Wet Weight - 244 kg / 538 lbs |
| Wheelbase | 1600 mm / 63.0 in |
| Inner Leg Curve | — |
| WHEEL SPECS | |
| Wheels / Rims | Front Wheel : Cast and machined alloy / Rear Wheel: Cast and machined alloy / |
| Front Tyre | 120/70 ZR17 Pirelli Diablo Rosso II |
| Rear Tyre | 240/45 ZR17 Pirelli Diablo Rosso II |
| Front Wheel Travel | 120 mm / 4.7 in |
| Rear Wheel Travel | 110 mm / 4.33 in |
| Rake | 27° |
| Trail | 120 mm / 4.7 in |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Reserve | — |
| Fuel Consumption | 43.5 mpg (5.4 l/100 km) |
| ADDITIONS | |

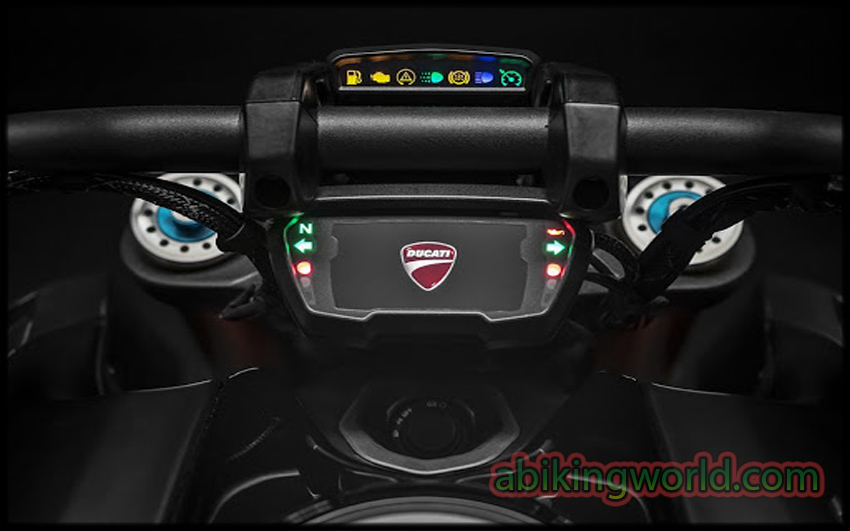

| Instrumentation | 3.5 in TFT colour display and dedicated warning light display |

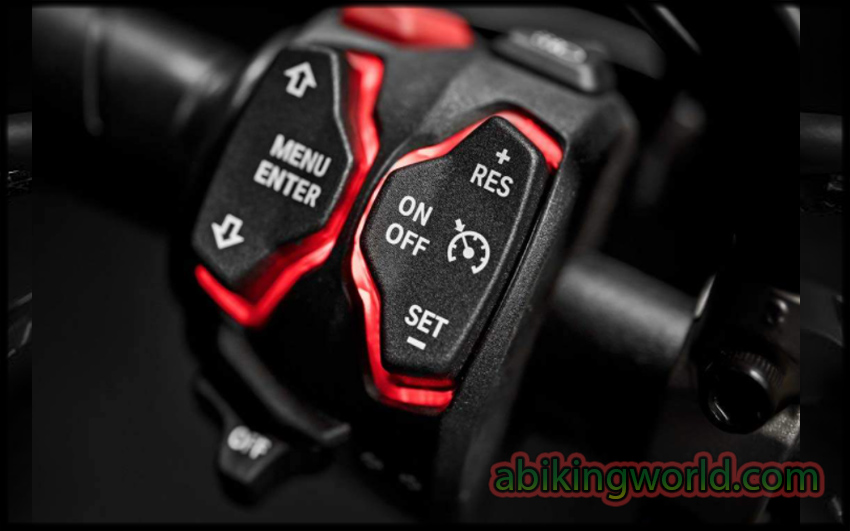

| Equipment | Safety Equipment Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS Evo, Ducati Traction Control Evo DTC), / Ducati Wheelie Control Evo (DWC) / Cruise control, Ducati Power Launch Evo (DPL), Hands-Free, Backlit handlebar switches, 3.5 in TFT colour display, Full LED lighting system, Self cancelling turn indicators |
| Top Speed | 169 mph (est) |
| Colours | Standstone Grey or Thrilling black/Dark stealth with red frame |

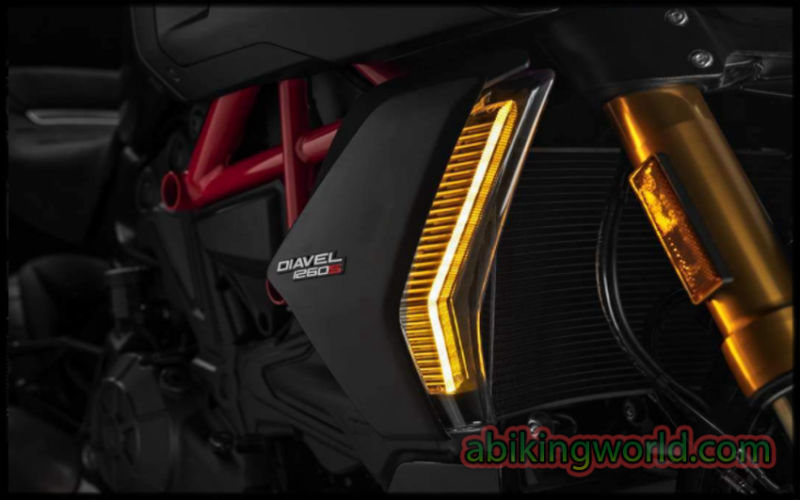

Powerful. Muscular. But also agile and effective between the curves for maximum riding enjoyment. The new Diavel 1260 S combines the performance of a maxi-naked with the ergonomics of a muscle cruiser. Its design reinterprets the Diavel style with a contemporary look and integrates perfectly the 159 HP Testastretta DVT 1262 engine, beating heart of this new Diavel 1260. Muscular lines and an imposing front bring out the strong and restless personality of the new Diavel, featuring a long, slender rear with a 240 mm rear wheel. The wide air inlets and the trellis frame complete the elegant picture as they support the engine, the true beating heart of this bike. The S version, featuring the total black livery and Öhlins suspension, is the embodiment of the new Diavel’s determined and sophisticated style. The new Diavel is built around the Testastretta DVT 1262 engine, a beacon of power, beauty and sophistication. Its 152 hp translate to unbelievable acceleration and pick-up, while the flat and consistent torque curve since low rpm allows steady and easy to handle delivery. The Ride by Wire (RbW) control matched with three Riding Modes and three Power Modes allows to personalise engine responsiveness. A true beauty, as far as mechanics and design go, and a real game changer on the road.
