2019 Ducati Hypermotard 950 SP

2019 Ducati Hypermotard 950 SP
2019 Ducati Hypermotard 950 SP
Spec sheet
MODELDucati Hypermotard 950 SP
ENGINE TYPEFour stroke, Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, magnesium head covers
Year2019
Displacement / Capacity937 cc / 57.2 cu in
Bore X Stroke94 x 67.5 mm
Compression Ratio13.1:1
Cooling SystemLiquid Cooled
Max Power84 kW / 114 hp @ 9000 rpm
Max Torque96 Nm / 71 lb-ft @ 7250 rpm
IgnitionElectronic
InductionElectronic fuel injection system, 53 mm throttle bodies with full Ride by Wire system
Start System—
TRANSMISSION SPECS
Lubrication—
Gear Box6-Speed
ClutchSlipper and self-servo wet multiplate clutch, hydraulic control
Primary / Final DriveFinal Drive : Chain, front sprocket 15, rear sprocket 43 / Primary Drive : Straight cut gears, ratio 1.85:1
Secondary drive—
Gear Ratio1st 37/15; 2nd 30/17; 3rd 28/20; 4th 26/22 5th 24/23; 6th 23/24
CHASSIS SPECS

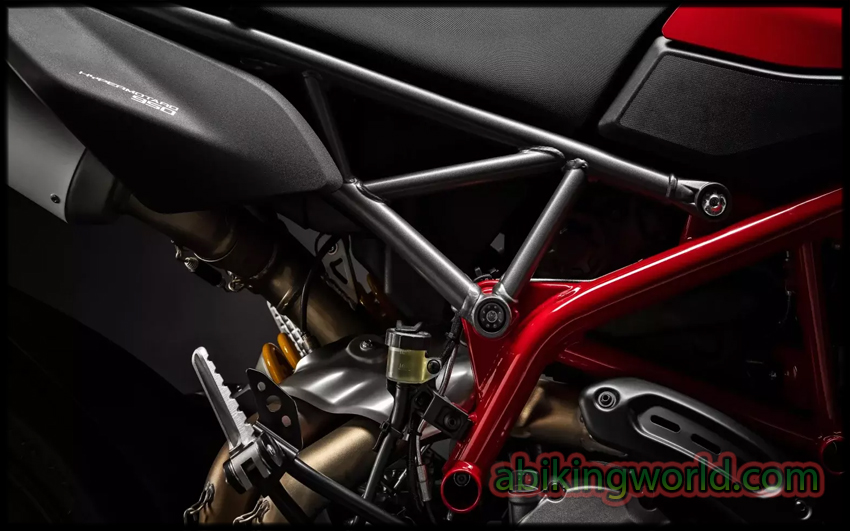

FrameTubular steel trellis frame
Front Suspension48mm Öhlins fully adjustable, upside-down forks
Rear SuspensionProgressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm

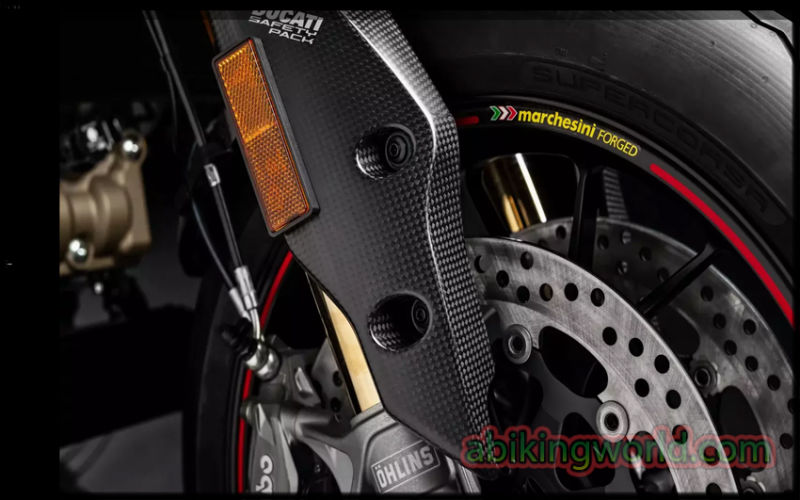

BrakesFront Brakes: 2 x 320 mm semi-floating aluminum flange discs, radially mounted Monobloc Brembo callipers, 4-piston 2-pad, radial / pump with adjustable lever / / Rear Brakes : 245 mm disc, 2-piston calliper / / ABS: Bosch Cornering ABS
Traction Management—

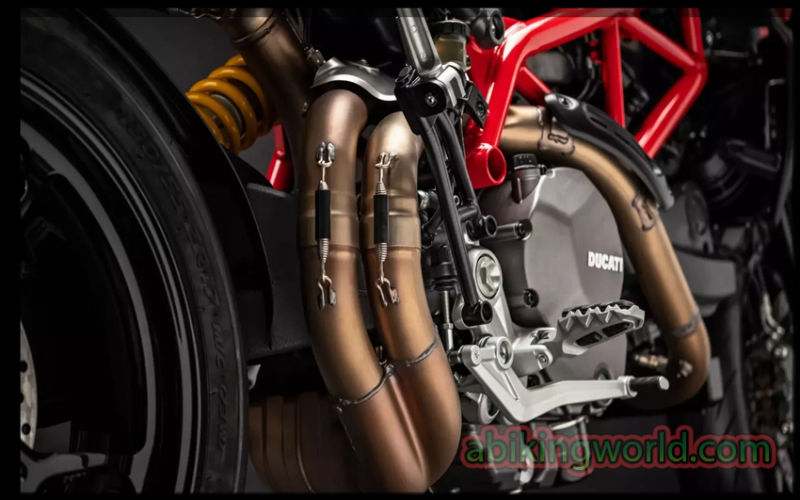

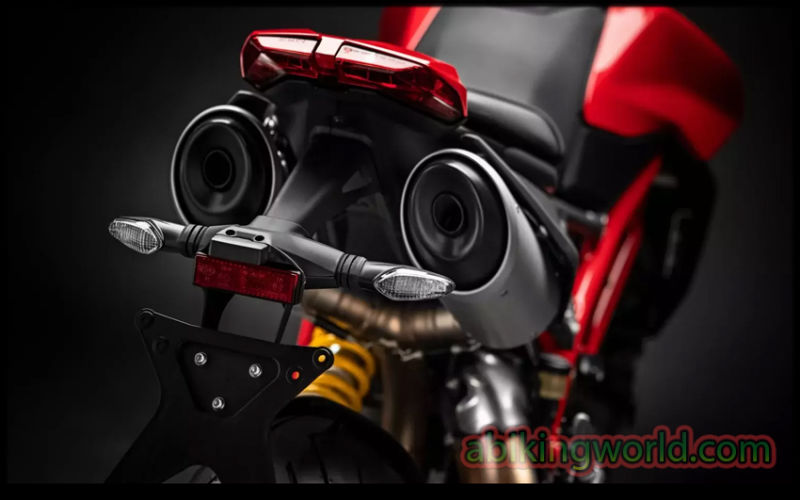

Exhaust SystemDouble under-tail aluminum muffler, catalytic converter and two lambda probes
DIMENSION SPECS
Overall Length—
Seat Height870 mm / 34.2 in
Overall Height—
Overall Width—
Overall WeightDry Weight - / Wet Weight - 200 kg / 440 lbs
Wheelbase1493 mm / 58.8 in
Inner Leg Curve—
WHEEL SPECS
Wheels / RimsFront Wheel : W shaped 3-spoke Marchesini forged light alloy 3.5” x 17” / Rear Wheel: W shaped 3-spoke Marchesini forged light alloy 5.5” x 17” /
Front TyrePirelli Diablo Supercorsa SP v3, 120/70 ZR17
Rear TyrePirelli Diablo Supercorsa SP, 180/55/ZR17
Front Wheel Travel185 mm / 7.3 in
Rear Wheel Travel175 mm / 6.9 in
Rake:25º
Trail104 mm / 4.1 in
FUEL SYSTEMElectronic fuel injection system, Ø 53 mm throttle bodies with full Ride by Wire system
Fuel Capacity14.5 Litres / 3.8 US gal
Fuel Reserve—
Fuel Consumption46 mpg (5.1 l/100 km)
ADDITIONAL
Top Speed176 mph

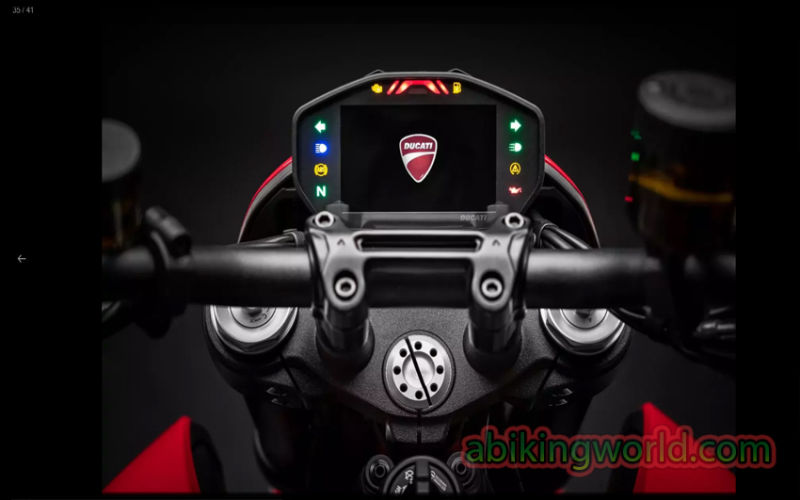

InstrumentationFull-TFT color display
Safety EquipmentRiding Modes, Bosch Cornering ABS , Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO
Standard EquipmentPower Modes, Day Time Running Light (DRL), Ducati Quick Shift (DQS) up/down, Marchesini forged wheels, Tapered aluminum handlebars, / USB power socket, Removable passenger footpegs, Carbon fiber components: front mudguard, timing belt covers
Photo gallery
Ducati hypermotard 950 sp 2019 Ducati hypermotard 950 sp 2019 Ducati hypermotard 950 2019 Ducati hypermotard 950 2019 Ducati hypermotard 950 2019 Ducati hypermotard 950 2019 Ducati hypermotard 950 sp 2019 Ducati hypermotard 950 2019
Ducati file

Video Courtessy of Bennetts Bike

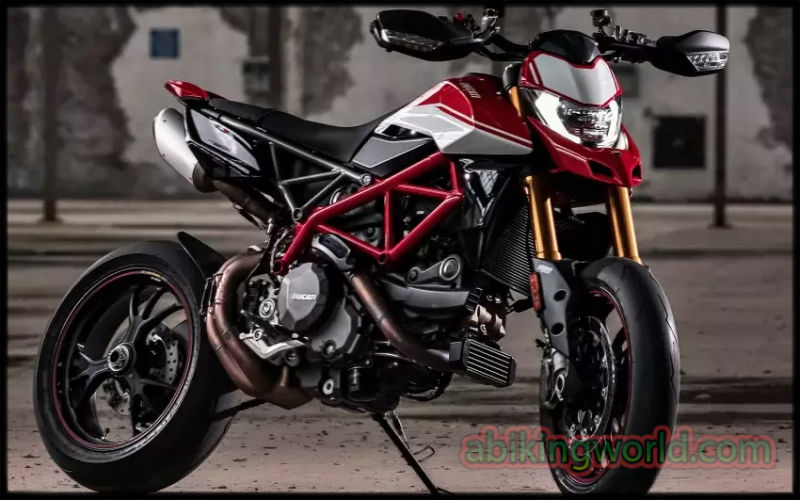

Ducati revamped its Hypermotard range ahead of MY2019 with the 950 and 950 SP to replace its outgoing Hypermotard 939 models. The new 950 borrows from the supermotard world for general design and rocks sharper angles for a more aggressive look. The 950 dropped some weight compared to its predecessor and replaced it with ponies for greater performance across the board, and the “SP” comes with top-shelf suspension and wheels, plus an expanded electronics suite and carbon fiber components to sweeten the deal. You can call it a supermoto or trick bike if you like, but the end result is the same. The supermotard genre certainly has a form-follows-function look all its own, and these Hypermotard 950s fit right into the mold. What we have here is a collection of parts meant to deliver a very specific style of riding as its primary focus At the core of the new 950 siblings lies a naked sportbike with exposed framework and minimal body panels that leave little to the imagination. In order to keep unsprung weight low at the front axle and leave the wheel plenty of room to pump, the front fender is mounted high on the tripletree. That gives it a bit of a dual-sport look reinforced by the flyscreen and handguards. Out back, a mudguard/plateholer assembly mounts the rear turn signals and provides some fling protection with backup from a mid-size hugger. Part of the aching void between the rear tire and subframe is taken up by the exhaust system that terminates in a pair of slash-cut mufflers that come up on both sides under a minimal guard, so your passenger will have to be very careful about hand and leg placement on the right side.
