Ducati

Ducati Monster 1200 2014 - 2015

Ducati Monster Diavel 1200 2014 FACTORY SPECIFICATIONS
Ducati Monster Diavel 1200 2014 FACTORY SPECIFICATIONS
Spec sheet
MODELDucati Monster 1200
ENGINE TYPEFour stroke, Testastretta 11° L-Twin, DOHC, 4 Desmodromically actuated valves per cylinder.
Year2014 - 2015
Displacement / Capacity1198 cc / 73.1 cu-in
Bore X Stroke106 x 67.9 mm
Compression Ratio12.5:1
Cooling SystemLiquid Cooled
Max Power100.7 kW / 135 hp @ 8750 rpm
Max Torque118 Nm / 12.0 kgf-m / 87 lb-ft@ 7250 rpm
IgnitionMarelli Electronic
InductionElectronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Start SystemElectric
TRANSMISSION SPECS
LubricationWet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Gear Box6 speed
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Primary / Final DriveFinal Drive : Chain, front sprocket 15; rear sprocket 41 / Primary Drive : Straight cut gears, ratio 1.84:1
Secondary drive—
Gear Ratio1st 37/15 2nd 30/17 3rd 27/20 4th 24/22 5th 23/24 6th 22/25
CHASSIS SPECS
FrameTubular steel Trellis frame attached to the cylinders head
Front Suspension43mm fully adjustable usd forks
Rear SuspensionProgressive linkage with fully adjustable monoshock. Aluminium single-sided swingarm
BrakesFront Brakes: 2 x 320mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, radial pump. / / Rear Brakes : 245mm disc, 2-piston floating calliper / / ABS: ABS as standard equipment
Traction Management—
Exhaust SystemLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
DIMENSION SPECS
Overall Length—
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Overall Height—
Overall Width—
Overall WeightDry Weight - 182kg /401lb / Wet Weight - 209Kg / 461lb
Wheelbase1511 mm (59.5 inches)
Inner Leg Curve—
WHEEL SPECS
Wheels / RimsFront Wheel : 10-spoke in light alloy 3.50 x 17 / Rear Wheel: 10-spoke in light alloy 6.00 x 17 /
Front Tyre120/70 ZR 17 Pirelli Diablo Rosso II
Rear Tyre190/55 ZR17 Pirelli Diablo Rosso II
Front Wheel Travel130mm (5.1in)
Rear Wheel Travel152mm (5.9in)
Rake:24.3°
Trail93.2 mm / 3.7 in
FUEL SYSTEM
Fuel Capacity17.5l – (4.6 US gal)
Fuel Reserve—
Fuel Consumption—
ADDITIONAL
Top SpeedClaimed 230 kmh / 142 mph
InstrumentationColour TFT display
Standard EquipmentRiding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, passanger handles and seat cover, ready for anti-theft system and DDA
Colour OptionsRed, white

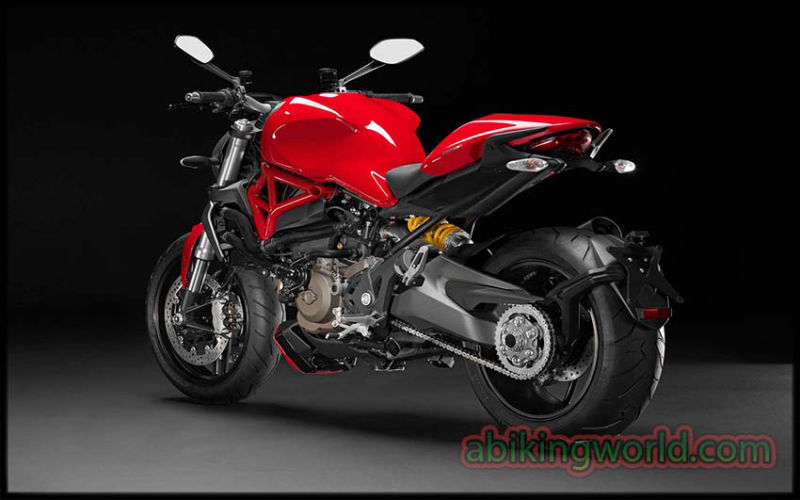

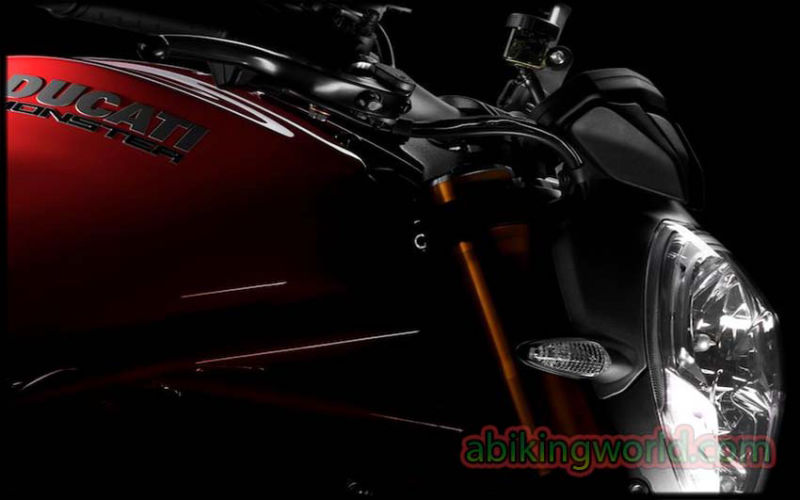

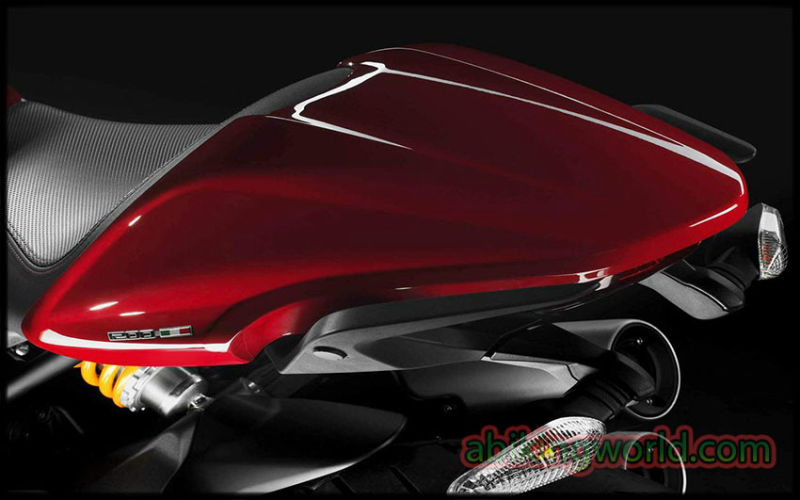

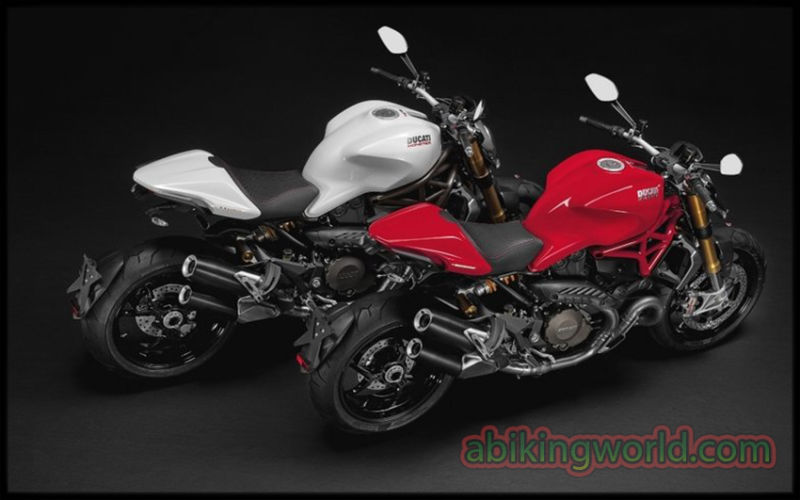

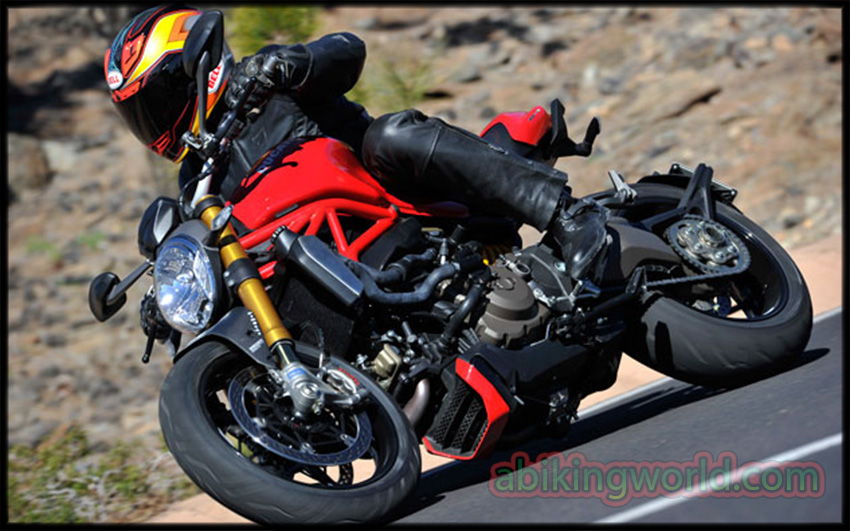

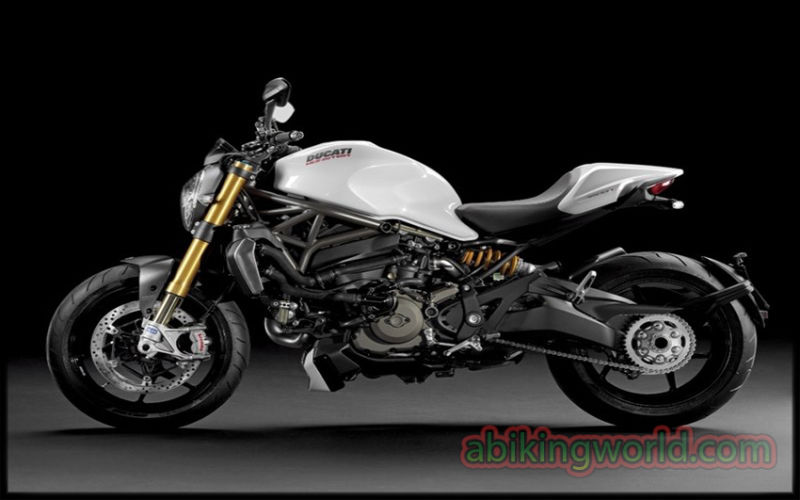

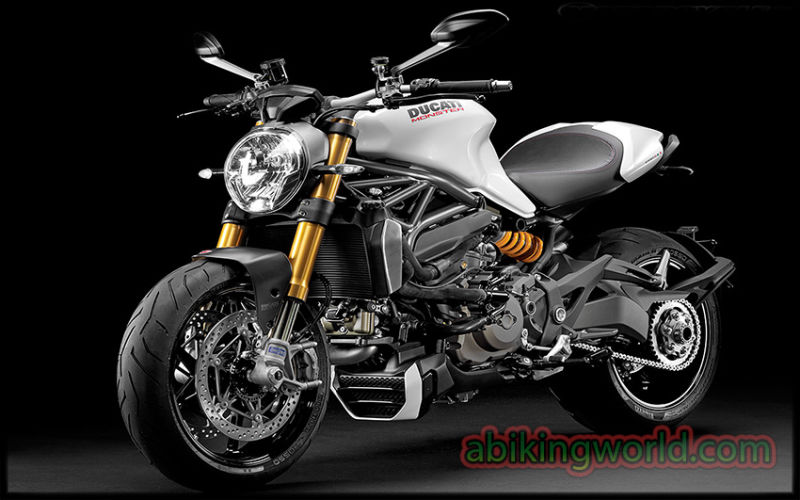

Photo gallery
Ducati Monster 1200 2014 Ducati Monster 1200 2014 Ducati Monster 1200 2014 Ducati Monster 1200 2014 Ducati Monster 1200 2014 photo Ducati Monster 1200 2014 Ducati Monster 1200 2014
Ducati file

Video Courtessy of MotoUSA

Ducati has fully revealed its new 2014 Monster 1200. The motorcycle has an aggressive character and is propelled by the Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled engine with a displacement of 1198.4cc. The engine delivers a maximum output of 100.7 kW (135 hp) @ 8,750 rpm and 118 Nm (87 lb-ft) of torque @ 7,250 rpm. The unit is fed by a 17.5 liters fuel tank and is mated to a six speed gearbox with slipper clutch. The 2014 Ducati Monster 1200 weighs 209 kg and its backbone is represented by a trellis frame which is directly attached to the engine. Other features include Brembo brakes, hydraulic clutch, ride by wire and a TFT display. You also get an adjustable seat, Ducati’s Safety Pack (DSP), LED lights and a low mounted number plate. The performance and fluidity of the new Testastretta 11° DS engine, the versatility of the three Riding Modes, the comfort of the adjustable seat and passenger handles make the Monster 1200 a bike that is capable of adapting to any occasion, so that you can follow your instincts in every situation. The unmistakeable Monster design is truly iconic and means there is no limit to your enjoyment. All the elements that created the Monster legend are evident at a glance: a powerful "Monster-fly-line", round headlight flanked by the forks, solid and sculptural metal fuel tank, and the authentic "less is more" style concept that gives the perception of being in front of an engine, a chassis, a tank, a saddle; and nothing more. Despite increased dimensions that offer unprecedented performance and versatility, the character of a sportbike is immediately evident in the Monster’s proportions. The tail is sharp (with the decisive contribution of the low-mounted license plate holder), the mass is visually loaded at the front, and the engine area appears compact even with its new water cooling thanks to the expertly integrated oil cooler, radiator, and water hoses, the engine is coupled to an impressive side-mounted staggered shotgun exhaust that makes no secret of the bike’s performance.
