Ducati XDiavel Dark 2021 FACTORY SPECIFICATIONS
Ducati XDiavel Dark 2021 FACTORY SPECIFICATIONS
Spec sheet
MODELDucati Xdiavel Dark
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Year2021
Displacement / Capacity1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power Euro5Max Power Euro4118 kW / 160 hp @ 9500 rpm / 112 kW / 152 hp @ 9500 rpm
Max Torque Euro5Max Torque Euro4127 Nm / 93.7 lb-ft @ 5000 rpm / 126 Nm / 92.9 lb-ft @ 5000 rpm
IgnitionElectronic
InductionElectronic fuel injection system, 56mm elliptical throttle bodies full with ride-by-wire system
Start SystemElectric
TRANSMISSION SPECS
Lubrication—
Gear Box6-Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive : Belt, front sprocket Z28, rear sprocket Z80 / Primary Drive : Straight cut gears, 1.84:1 ratio
Secondary drive—
Gear Ratio1st 37:15 / 2nd 30:17 / 3rd 27:20 / 4th 24:22 / 5th 23:24 / 6th 22:25
CHASSIS SPECS
FrameTubular steel trellis frame
Front Suspension50mm USD adjustable forks with DLC treatment
Rear SuspensionSingle shock absorber, adjustable preload and rebound, remote reservoir, Single sided cast/trellis frame swingarm
BrakesFront Brakes: 2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4.32 callipers, PR16/19 radial master cylinder / / Rear Brakes : Single 265 mm disc, Brembo 2-piston floating calliper / / ABS: BOSCH cornering ABS as standard equipment
Traction Management—
Exhaust SystemStainless steel exhaust and muffler with dual oval exits, catalytic converter and 2 lambda probes
DIMENSION SPECS
Overall Length—
Seat Height755 mm / 29.7 in
Overall Height—
Overall Width—
Overall WeightDry Weight - 221 kg / 487 lbs / Wet Weight - 247 kg / 545 lbs
Wheelbase1615 mm / 63.6 in
Inner Leg Curve—
WHEEL SPECS
Wheels / RimsFront Wheel : Light alloy, cast, 3.50 x 17 / Rear Wheel: Light alloy, cast, 8.00 x 17 /
Front Tyre120/70 ZR17 Pirelli Diablo Rosso III
Rear Tyre240/45 ZR17 Pirelli Diablo Rosso III
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.3 in
Rake:30°
Trail130 mm / 5.1 in
FUEL SYSTEM
Fuel Capacity18 L / 4.75 US gal
Fuel Reserve—
Fuel Consumption5.5 l/100 km
ADDITIONAL
Top Speed150 mph (Est.) / 241 kmh
Instrumentation3.5" TFT color display and dedicated warning light display
Standard EquipmentDPL (Ducati Power Launch), RbW, Cruise control, Hands-free, Full-LED lighting*, Backlit handlebar switches
EmissionEuro 4 / Euro 5 compliant in all countries that adopt the standard
Photo gallery

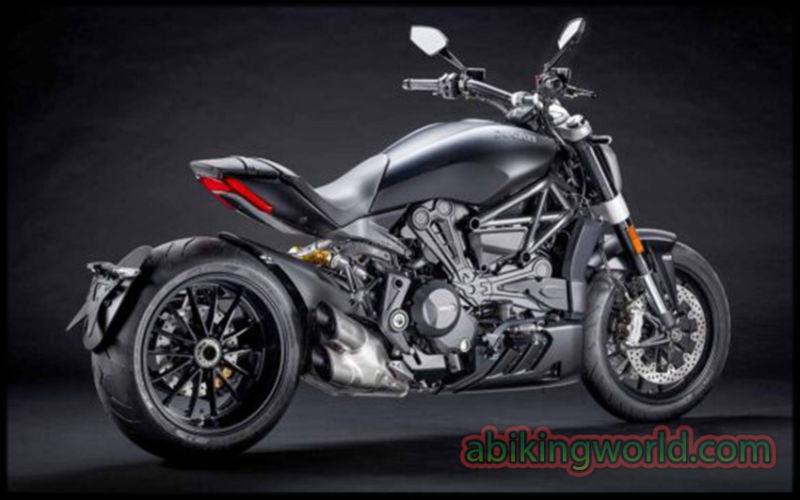

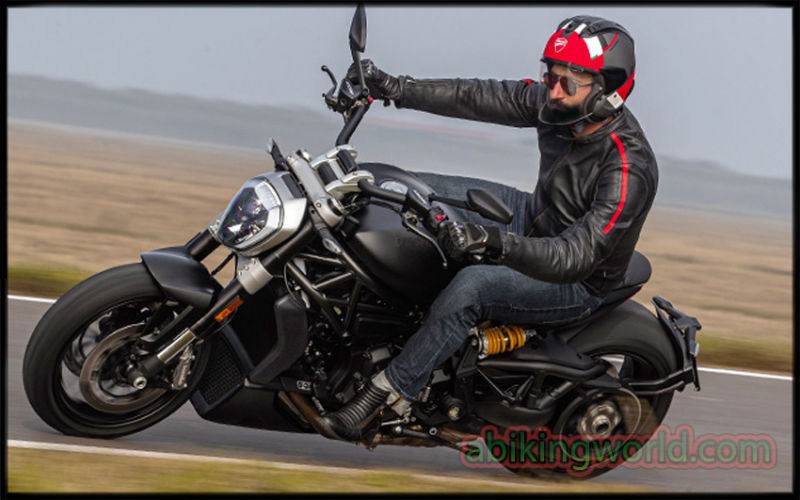

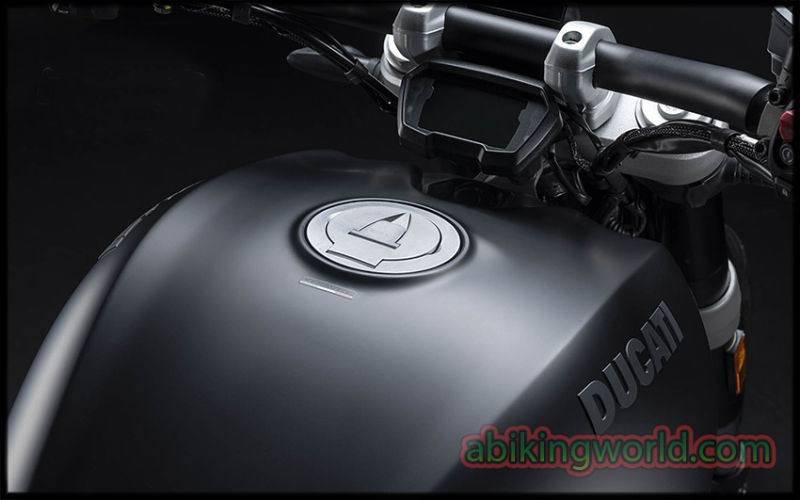

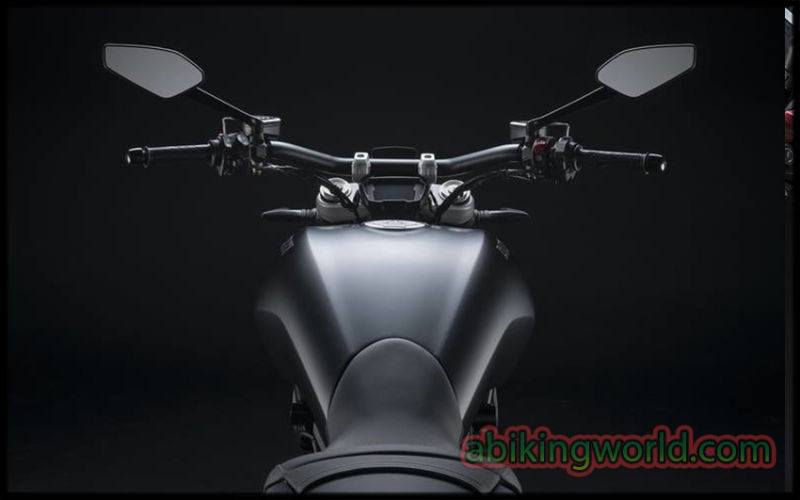

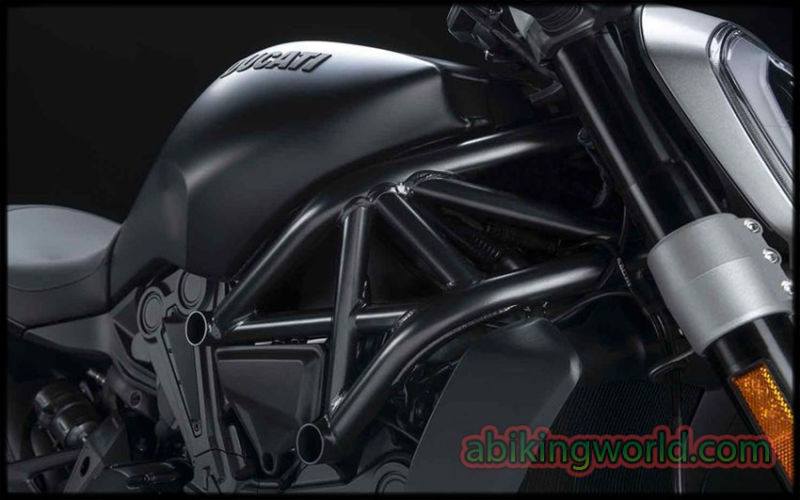

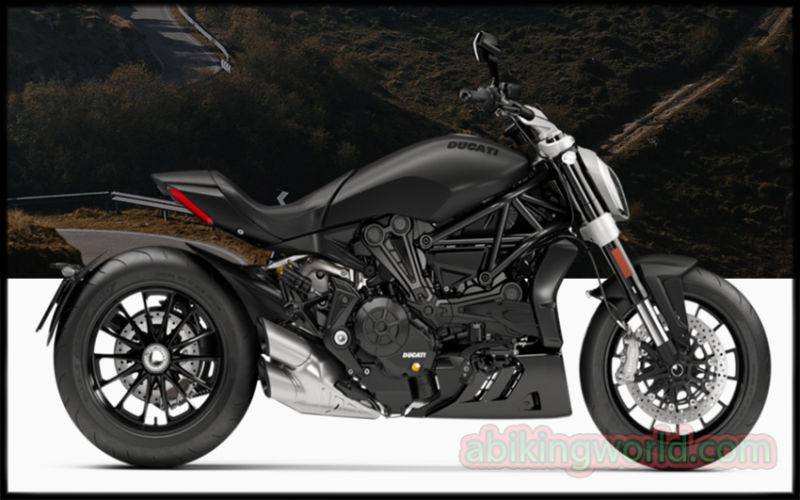

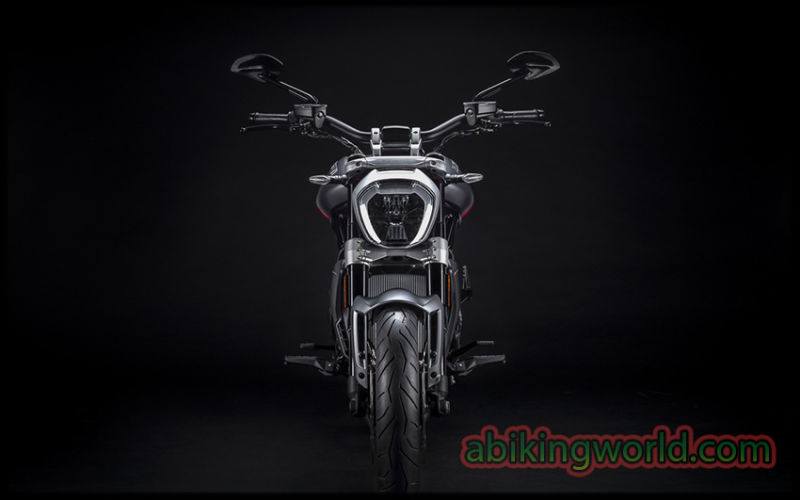

xdiavel 2021 dark Ducati Xdiavel 2021 dark Ducati Xdiavel 2021 Dark Ducati Xdiavel 2021 Dark Ducati Xdiavel 2021 Dark Ducati Xdiavel 2021 Dark Ducati Xdiavel 2021 Dark Ducati Xdiavel 2021 Dark
Ducati file

The beating heart of the XDiavel Dark is none other than Ducati’s Testastretta DVT 1262. A 90-degree V-Twin, or L-Twin if you like, delivers the goods with 160 ponies at 9,500 rpm and 93.7 pound-feet that tops out at five grand. To help you control that great power, the Dark Devil rolls with Ducati’s Power Launch feature and Traction Control system with Power Modes and Riding Mode setting bundles for ease of operation. Seriously oversquare, the engine runs a 106 mm bore and 71.5 mm stroke that gives it a way-hot 13-to-1 compression ratio that will demand the highest octane you can find, but that’s the trade off for all that get up and go. Dual 56 mm ride-by-wire throttle bodies manage the induction and run with elliptical bores that help improve volumetric efficiency a tad by reducing resistance in the intake. As you’d expect, it runs a Desmodromic valvetrain that trades the usual valve springs with a pull-closed cam that provides positive valve closure and prevents harmonic valve float at the top of the RPM range. A slipper clutch and six-speed transmixxer sends power to the rear wheel via an all-new, belt-type final drive, and it’s worth mentioning that the XDiavel family is the first to use this technology. Time will tell if it can handle the strain this engine can place on it. After the final-drive ratio is factored in, the XDiavel Dark turns in a top speed right around 150 mph 241 kmh.
