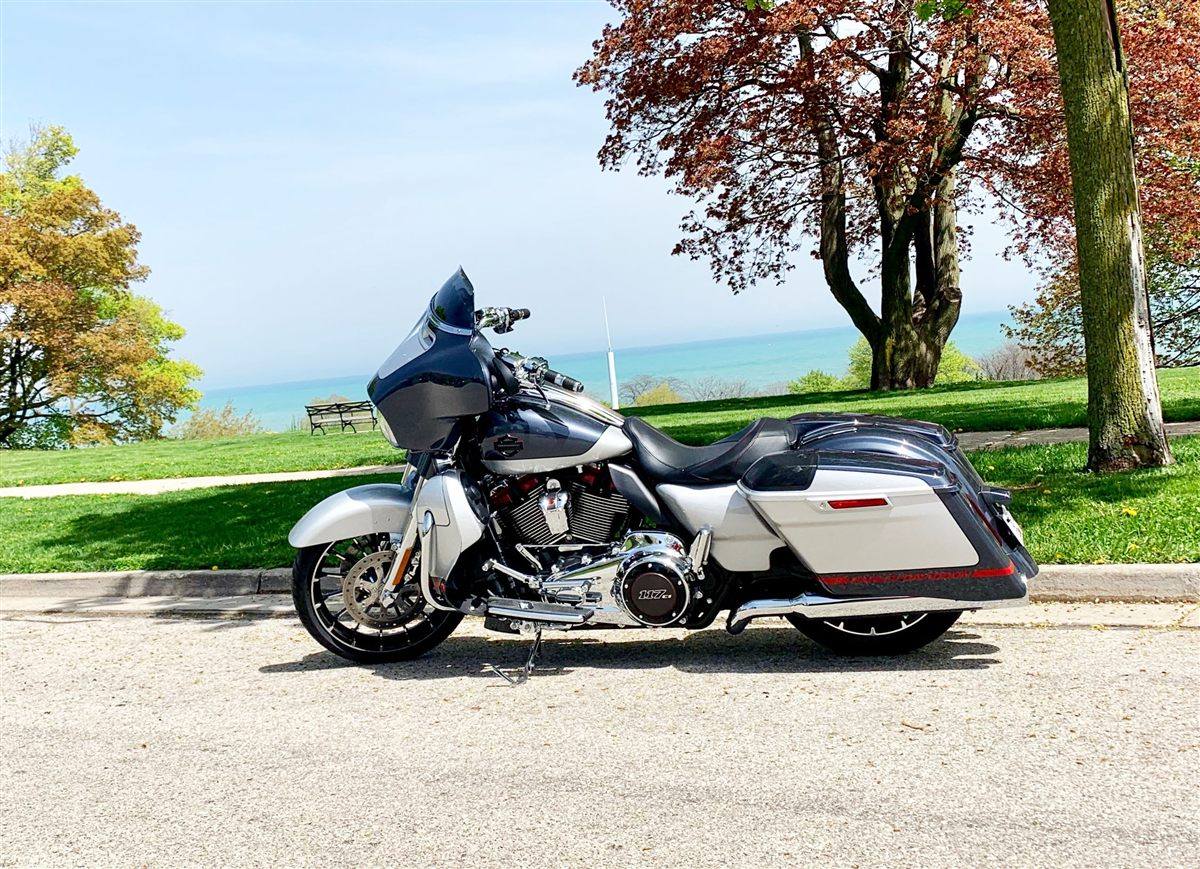

| MODEL | HARLEY-DAVIDSON CVO STREET GLIDE 2019 |
| Year | 2019 |
| Engine Type | Four stroke, 45° V-Twin, Milwaukee-Eight 117, pushrod-operated OHV with hydraulic self-adjusting lifters, 4 valves per cylinder |
| Displacement / Capacity | 1923 cc / 117 cu in |
| Bore X Stroke | 103.5 x 114.3 mm / 4.075 x 4.5 in |
| Compression Ratio | 10.2:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 169 Nm / 125 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressurized, dry-sump with oil cooler |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel, square-section backbone with twin downtubes |
| Front Suspension | Showa Dual Bending Valve telescopic fork |
| Rear Suspension | Emulsion shocks with hand-adjustable preload |
| Front Brakes | Dual discs, 32 mm 4-piston fixed calipers, Brembo, Reflex linked ABS |
| Rear Brakes | Single disc, 32 mm 4-piston fixed caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2435 mm / 95.9 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 695 mm / 27.4 in (unladen) |
| Wheelbase | 1625 mm / 64.0 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 382 kg / 842 lbs |
| Wet Weight | 398 kg / 877 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/60B19 61H |
| Rear Tyre | 180/55B18 80H |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | 5.7 L/100 km / 41 mpg (US) |
| Top Speed | — |
For 2019 the CVO Street Glide moved up to the 117 cubic-inch Milwaukee-Eight, the largest engine Harley then fitted at the factory. It also received the Boom! Box GTS touchscreen infotainment with a 900-watt audio system, Talon wheels, heated grips and new limited CVO paint.
