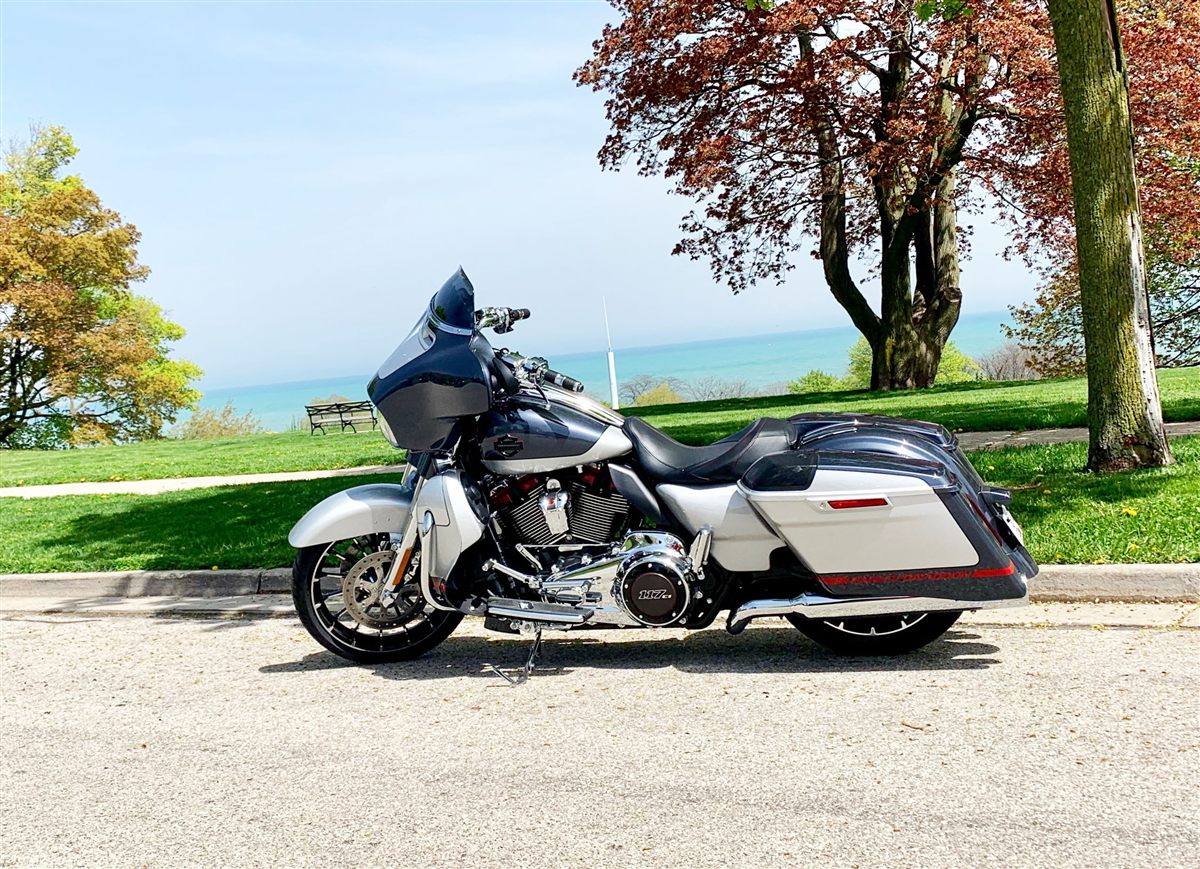

| MODEL | HARLEY-DAVIDSON CVO STREET GLIDE 2022 |
| Year | 2022 |
| Engine Type | Four stroke, 45° V-Twin, Milwaukee-Eight 117, pushrod-operated OHV with hydraulic self-adjusting lifters, 4 valves per cylinder |
| Displacement / Capacity | 1923 cc / 117 cu in |
| Bore X Stroke | 103.5 x 114.3 mm / 4.075 x 4.5 in |
| Compression Ratio | 10.2:1 |
| Cooling System | Air cooled |
| Max Power | 79 kW / 106 hp @ 4750 rpm |
| Max Torque | 171 Nm / 126 lb-ft @ 3750 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressurized, dry-sump with oil cooler |
| Gear Box | 6 Speed |
| Clutch | Mechanically actuated, 10-plate, wet, assist & slip |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, two-piece stamped and welded backbone, twin downtubes, bolt-on rear frame |
| Front Suspension | 49 mm Dual Bending Valve fork, 117 mm travel |
| Rear Suspension | Premium low hand-adjustable shocks, 54 mm travel |
| Front Brakes | 2 x 300 mm floating discs, 32 mm 4-piston fixed calipers, ABS |
| Rear Brakes | Single 300 mm disc, 4-piston fixed caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2435 mm / 95.9 in |
| Overall Width | 960 mm / 37.8 in |
| Overall Height | 1345 mm / 53 in |
| Seat Height | 690 mm / 27.2 in (unladen); 663 mm / 26.1 in (laden) |
| Wheelbase | 1625 mm / 64.0 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 377 kg / 831 lbs |
| Wet Weight | 393 kg / 866 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/60B19 61H |
| Rear Tyre | 180/55B18 80H |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | 5.7 L/100 km / 41 mpg (US) |
| Top Speed | — |
The 2022 CVO Street Glide (FLHXSE) kept the Milwaukee-Eight 117, Cornering Rider Safety Enhancements and Daymaker adaptive LED headlamp, with Fugitive wheels and new limited CVO colours.
