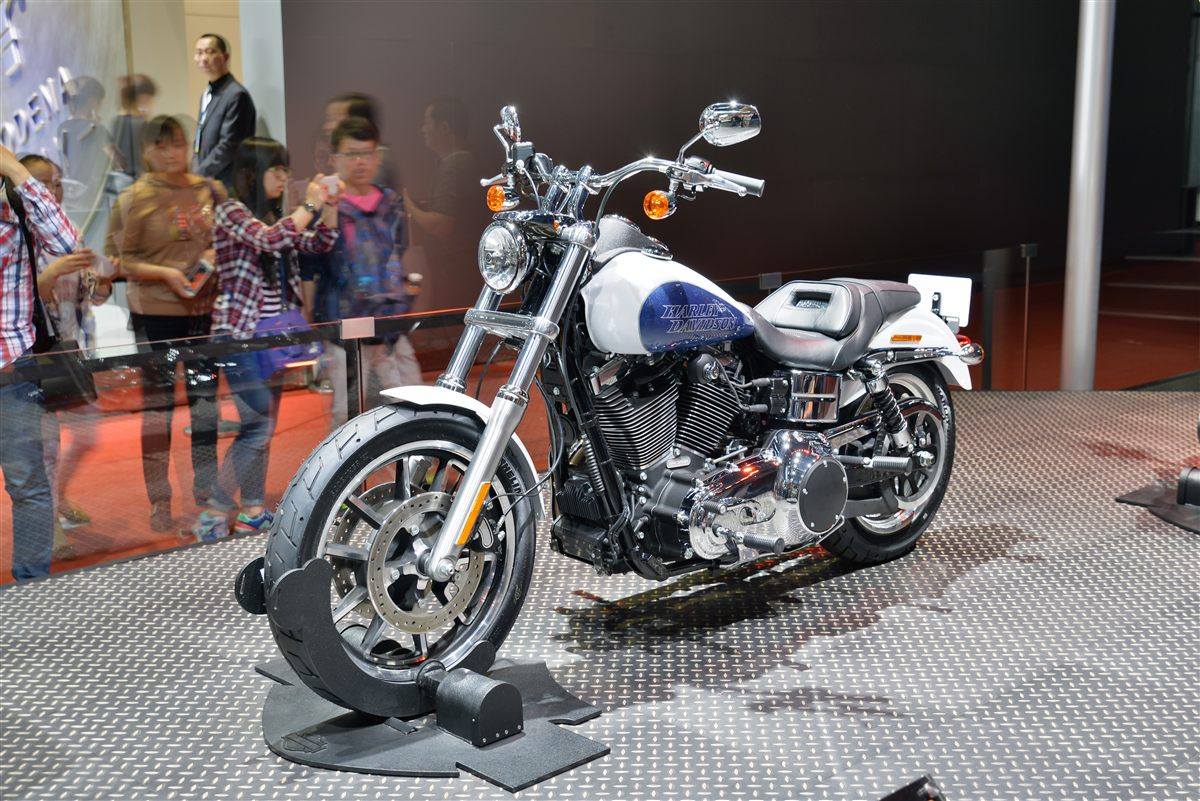

| MODEL | HARLEY-DAVIDSON DYNA LOW RIDER 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four-stroke, 45° V-twin, High Output Twin Cam 103, rubber-mounted, pushrod OHV, 2 valves per cylinder, integrated oil cooler |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm / 3.87 x 4.374 in |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 138 Nm / 102 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled electronic spark ignition |
| Induction | Electronic sequential port fuel injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 49 mm telescopic fork, dual-rate springs |
| Rear Suspension | Twin coil-over shocks |
| Front Brakes | 2 x 300 mm discs, 4-piston fixed calipers (ABS optional) |
| Rear Brakes | Single 292 mm disc, 2-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | 2345 mm / 92.3 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 645 mm / 25.4 in (laden) |
| Wheelbase | 1630 mm / 64.2 in |
| Ground Clearance | 105 mm / 4.1 in |
| Dry Weight | 292 kg / 644 lbs |
| Wet Weight | 302 kg / 666 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90B19 57H |
| Rear Tyre | 160/70B17 73V |
| FUEL SYSTEM | |
| Fuel Capacity | 17.8 Litres / 4.7 US gal |
| Fuel Consumption | 5.5 L/100 km / 42 US mpg |
| Top Speed | — |
From 2016 the Low Rider used the High Output version of the Twin Cam 103, which lifted torque over the 2014-15 bike, plus extra paint choices. The adjustable-fit layout with movable risers, two-position seat and forward mid controls carried over, as did the dual front discs and 2-into-1 exhaust. 2017 was the last year before the Dyna family was folded into the new Softail range.
