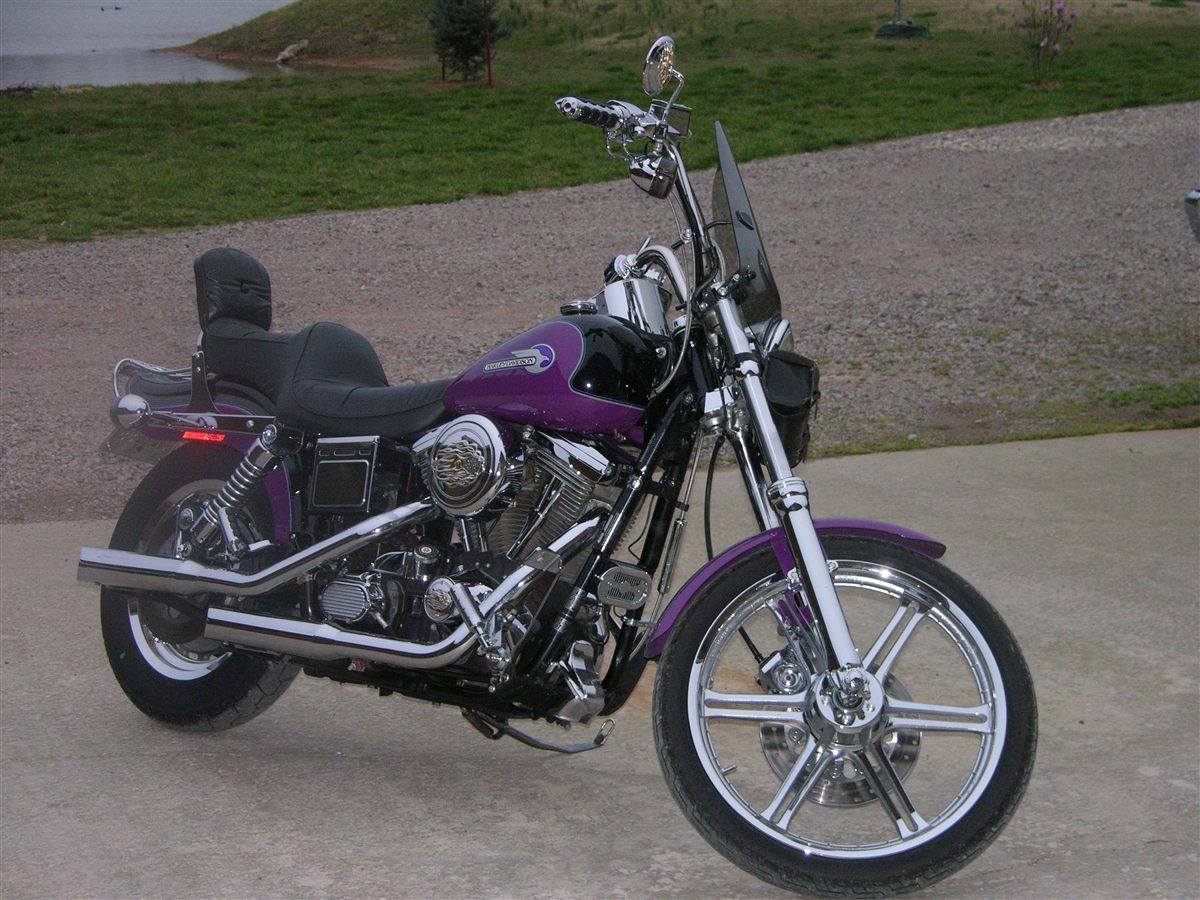

| MODEL | HARLEY-DAVIDSON DYNA WIDE GLIDE 105TH ANNIVERSARY FXDWG 2008 |
| Year | 2008 |
| Engine Type | Four-stroke, 45° V-twin, Twin Cam 96, vibration-isolated, pushrod OHV, hydraulic lifters, 2 valves per cylinder |
| Displacement / Capacity | 1584 cc / 96 cu in |
| Bore X Stroke | 95.25 x 111.25 mm / 3.75 x 4.38 in |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 124.75 Nm / 92 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Wet, 9-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 49 mm fork, dual-rate springs, 127 mm / 5.0 in travel |
| Rear Suspension | Coil-over shocks, 104 mm / 4.1 in travel |
| Front Brakes | Single 300 mm floating disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2477 mm / 97.5 in |
| Overall Width | 915 mm / 36.0 in |
| Overall Height | 1252 mm / 49.3 in |
| Seat Height | 698 mm / 27.5 in (laden); 724 mm / 28.5 in (unladen) |
| Wheelbase | 1735 mm / 68.3 in |
| Ground Clearance | 129 mm / 5.1 in |
| Dry Weight | 295 kg / 650 lbs |
| Wet Weight | 308 kg / 678 lbs |
| WHEEL SPECS | |
| Front Tyre | Dunlop D401F MH90-21 54H |
| Rear Tyre | Dunlop K591 160/70B17 73V |
| FUEL SYSTEM | |
| Fuel Capacity | 19.3 Litres / 5.1 US gal |
| Fuel Consumption | 34 mpg US city / 53 mpg US highway (6.9 / 4.4 L/100 km, EPA) |
| Top Speed | — |
In 2008 the Wide Glide was sold only as a serialised 105th Anniversary limited edition, mechanically the Twin Cam 96 six-speed model of 2007. It was set apart by Anniversary Copper and Vivid Black two-tone paint with pinstriping, a copper Bar and Shield tank emblem, anniversary badges on the air cleaner and timing cover, and a seat with a copper insert. It was the last Wide Glide before the model took a year off.
