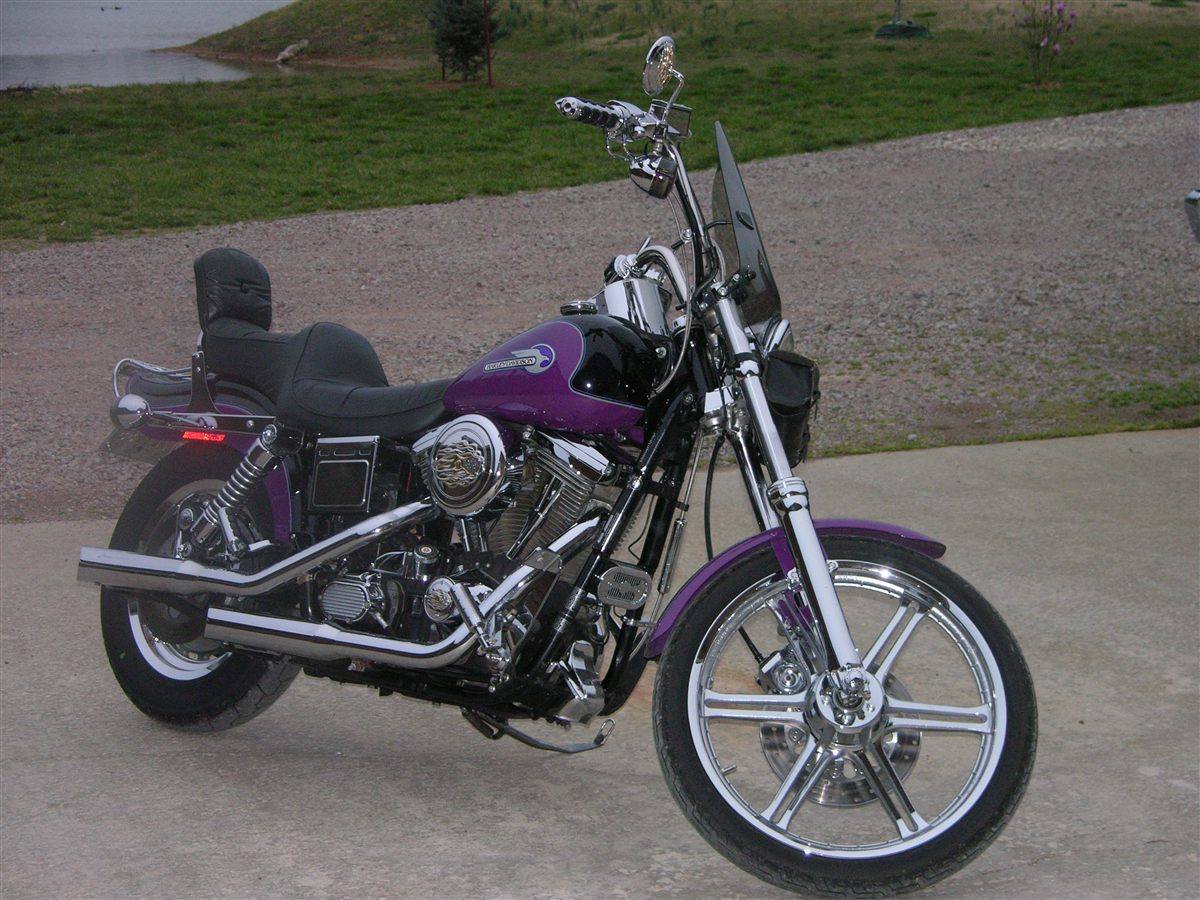

| MODEL | HARLEY-DAVIDSON DYNA WIDE GLIDE FXDWG 2007 |
| Year | 2007 |
| Engine Type | Four-stroke, 45° V-twin, Twin Cam 96, vibration-isolated, pushrod OHV, hydraulic lifters, 2 valves per cylinder |
| Displacement / Capacity | 1584 cc / 96 cu in |
| Bore X Stroke | 95.25 x 111.25 mm / 3.75 x 4.38 in |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 124.7 Nm / 92 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Wet, 9-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 49 mm fork, dual-rate springs, 127 mm / 5.0 in travel |
| Rear Suspension | Coil-over shocks, 104 mm / 4.1 in travel |
| Front Brakes | Single 300 mm floating disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2477 mm / 97.5 in |
| Overall Width | 915 mm / 36.0 in |
| Overall Height | 1251 mm / 49.3 in |
| Seat Height | 698 mm / 27.5 in (laden); 723 mm / 28.5 in (unladen) |
| Wheelbase | 1735 mm / 68.3 in |
| Ground Clearance | 158 mm / 6.2 in |
| Dry Weight | 295 kg / 650 lbs |
| Wet Weight | 308 kg / 678 lbs |
| WHEEL SPECS | |
| Front Tyre | MH90-21 54H |
| Rear Tyre | 160/70B17 73V |
| FUEL SYSTEM | |
| Fuel Capacity | 19.3 Litres / 5.1 US gal |
| Fuel Consumption | 34 mpg US city / 53 mpg US highway (6.9 / 4.4 L/100 km, EPA) |
| Top Speed | — |
For 2007 the Wide Glide received the new 96 cu in Twin Cam engine with fuel injection as standard, still vibration-isolated in the Dyna frame and paired with the six-speed Cruise Drive. Styling stayed chopper-flavoured with a 36-degree fork angle, 21-inch laced front wheel, bobtail fender, ape-hanger bar and stepped seat, plus redesigned gauges with a gear indicator.
