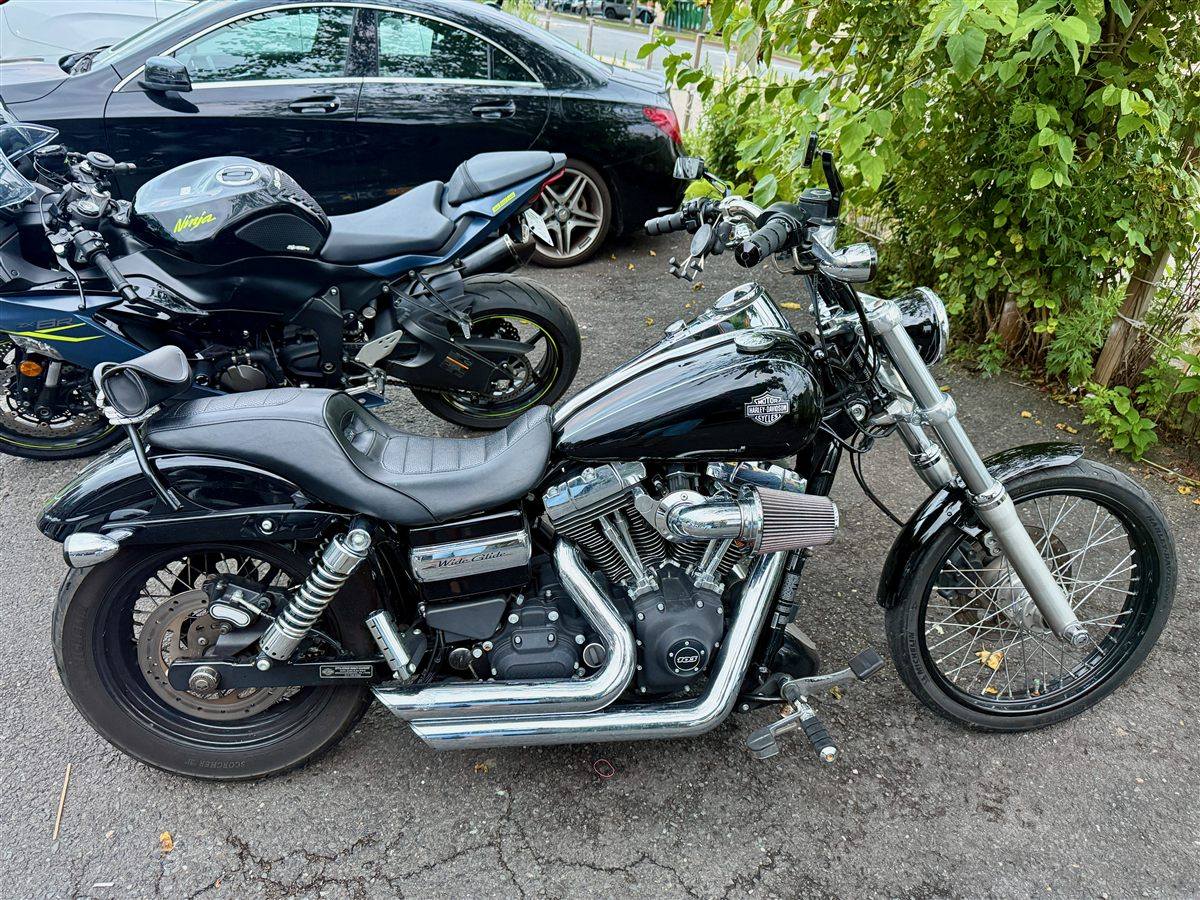

| MODEL | HARLEY-DAVIDSON DYNA WIDE GLIDE FXDWG 2012 |
| Year | 2012 |
| Engine Type | Four-stroke, 45° V-twin, Twin Cam 103, rubber-mounted, pushrod OHV, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103 cu in |
| Bore X Stroke | — |
| Compression Ratio | — |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 136 Nm / 100 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Wet, multi-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 49 mm fork, dual-rate springs, polished aluminium triple clamps |
| Rear Suspension | Mild steel swingarm, twin coil-over shocks |
| Front Brakes | Single 300 mm disc, 4-piston caliper (ABS optional) |
| Rear Brakes | Single 292 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2388 mm / 94.0 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 648 mm / 25.5 in (laden) |
| Wheelbase | 1735 mm / 68.3 in |
| Ground Clearance | — |
| Dry Weight | 295 kg / 650 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | Michelin Scorcher 31 80/90-21 54H |
| Rear Tyre | Michelin Scorcher 31 180/60B17 75V |
| FUEL SYSTEM | |
| Fuel Capacity | 17.8 Litres / 4.7 US gal |
| Fuel Consumption | 42 mpg US combined |
| Top Speed | — |
The 2012 Wide Glide kept the 2010 chopper styling but stepped up from the Twin Cam 96 to the larger Twin Cam 103 engine, rated at 100 lb-ft of torque. A security package bundling ABS with the hands-free Smart Security System became an option, and the black laced wheels, drag bar, sissy bar and side-mounted plate carried over.
