| MODEL | HARLEY-DAVIDSON DYNA WIDE GLIDE FXDWG 2013 |
| Year | 2013 |
| Engine Type | Four-stroke, 45° V-twin, Twin Cam 103, rubber-mounted, pushrod OHV, hydraulic lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 132 Nm / 97.4 lb-ft @ 3250 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Wet, multi-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 49 mm fork, dual-rate springs, polished aluminium triple clamps |
| Rear Suspension | Mild steel swingarm, twin coil-over shocks |
| Front Brakes | Single 300 mm disc, 4-piston caliper, ABS |
| Rear Brakes | Single 292 mm disc, 2-piston floating caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2445 mm / 96.3 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 648 mm / 25.5 in (laden); 680 mm / 26.8 in (unladen) |
| Wheelbase | 1715 mm / 67.5 in |
| Ground Clearance | 100 mm / 3.9 in |
| Dry Weight | 295 kg / 650 lbs |
| Wet Weight | 307 kg / 677 lbs |
| WHEEL SPECS | |
| Front Tyre | 80/90-21 54H |
| Rear Tyre | 180/60B17 75V |
| FUEL SYSTEM | |
| Fuel Capacity | 17.8 Litres / 4.7 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 mpg US |
| Top Speed | — |

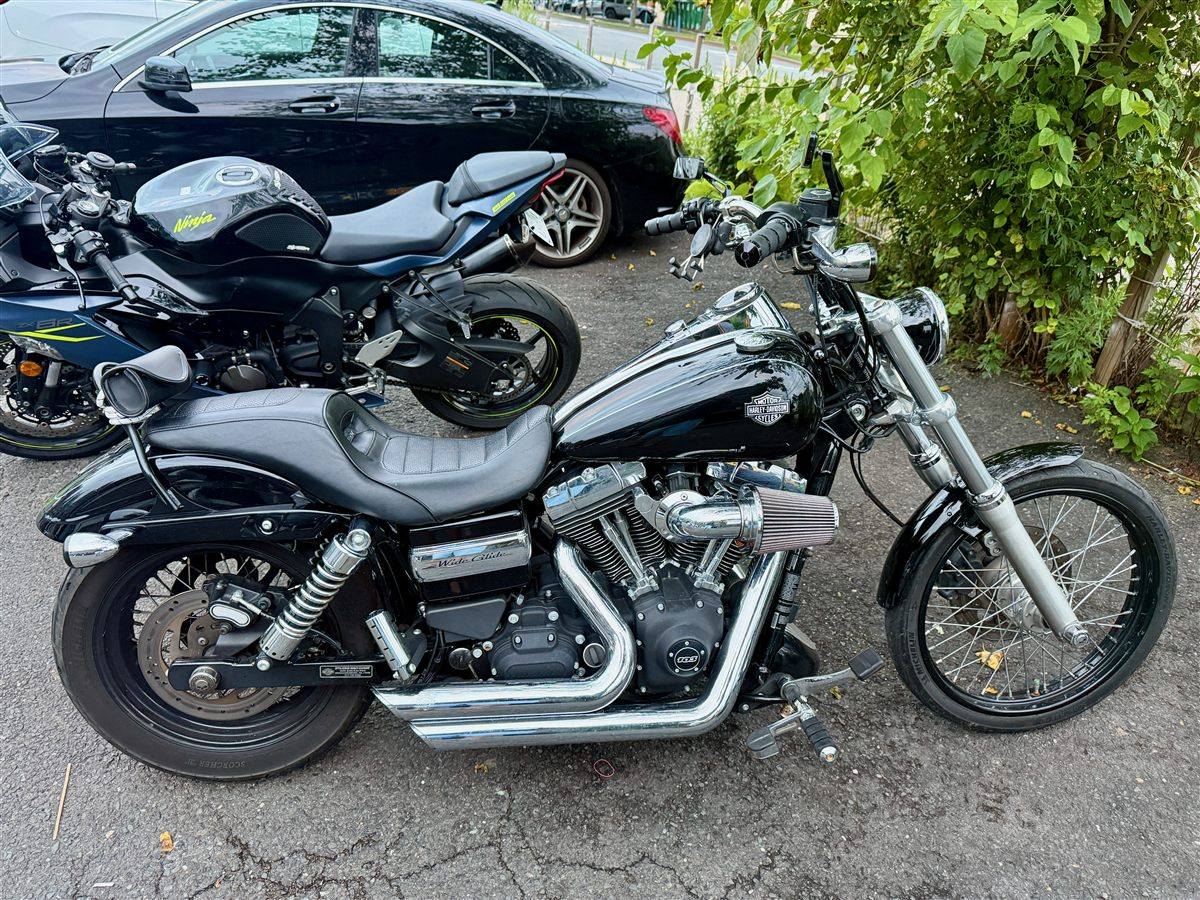

The 2013 Wide Glide is the Twin Cam 103 chopper-styled Dyna with a dark, retro 1970s look: raked-out 21-inch front wheel, black laced wheels, chopped rear fender, sissy bar and Tommy Gun exhaust. It rode an inch lower than the standard Dyna at each end and the H-D spec lists ABS among its equipment.
