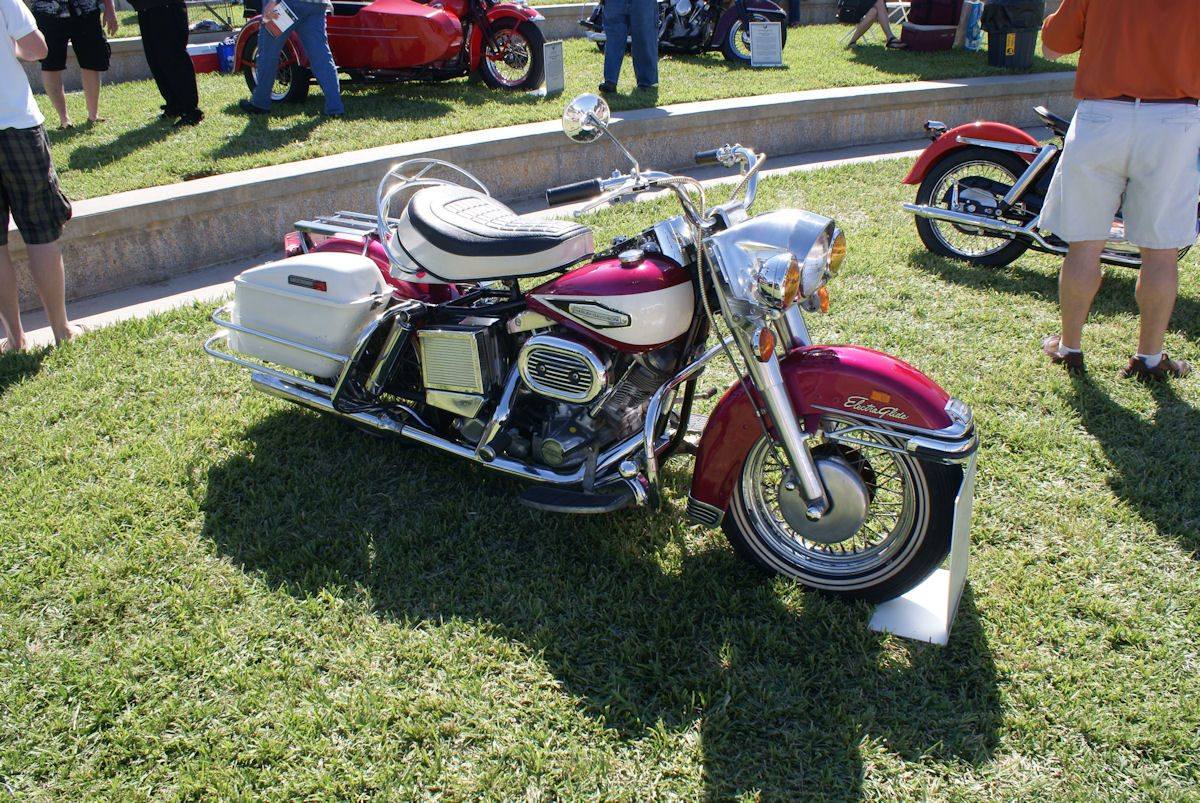

| MODEL | HARLEY-DAVIDSON ELECTRA GLIDE FLH 1200 1970 - 1971 |
| Year | 1970 - 1971 |
| Engine Type | Four stroke, 45° V-twin, OHV, 2 valves per cylinder (Shovelhead) |
| Displacement / Capacity | 1207 cc / 74 cu in |
| Bore X Stroke | 87.3 x 100.8 mm |
| Compression Ratio | 8.0:1 |
| Cooling System | Air cooled |
| Max Power | 42.3 kW / 58 hp @ 5150 rpm |
| Max Torque | 95 Nm / 70 lb-ft @ 4000 rpm |
| Ignition | Alternator / battery |
| Induction | Tillotson 1-5/8 in dual-venturi diaphragm carburettor with accelerator pump |
| Start System | Electric & kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swinging arm |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 340 kg / 749.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 5.10-16 |
| Rear Tyre | 5.10-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The early-1970s FLH was a Shovelhead Electra Glide with the 74 cu in engine, four-speed gearbox, chain drive and drum brakes at both ends. It still had a kickstarter alongside the electric starter. A batwing fairing had been available since 1969, which helped establish the dresser look that touring Harleys still use.
