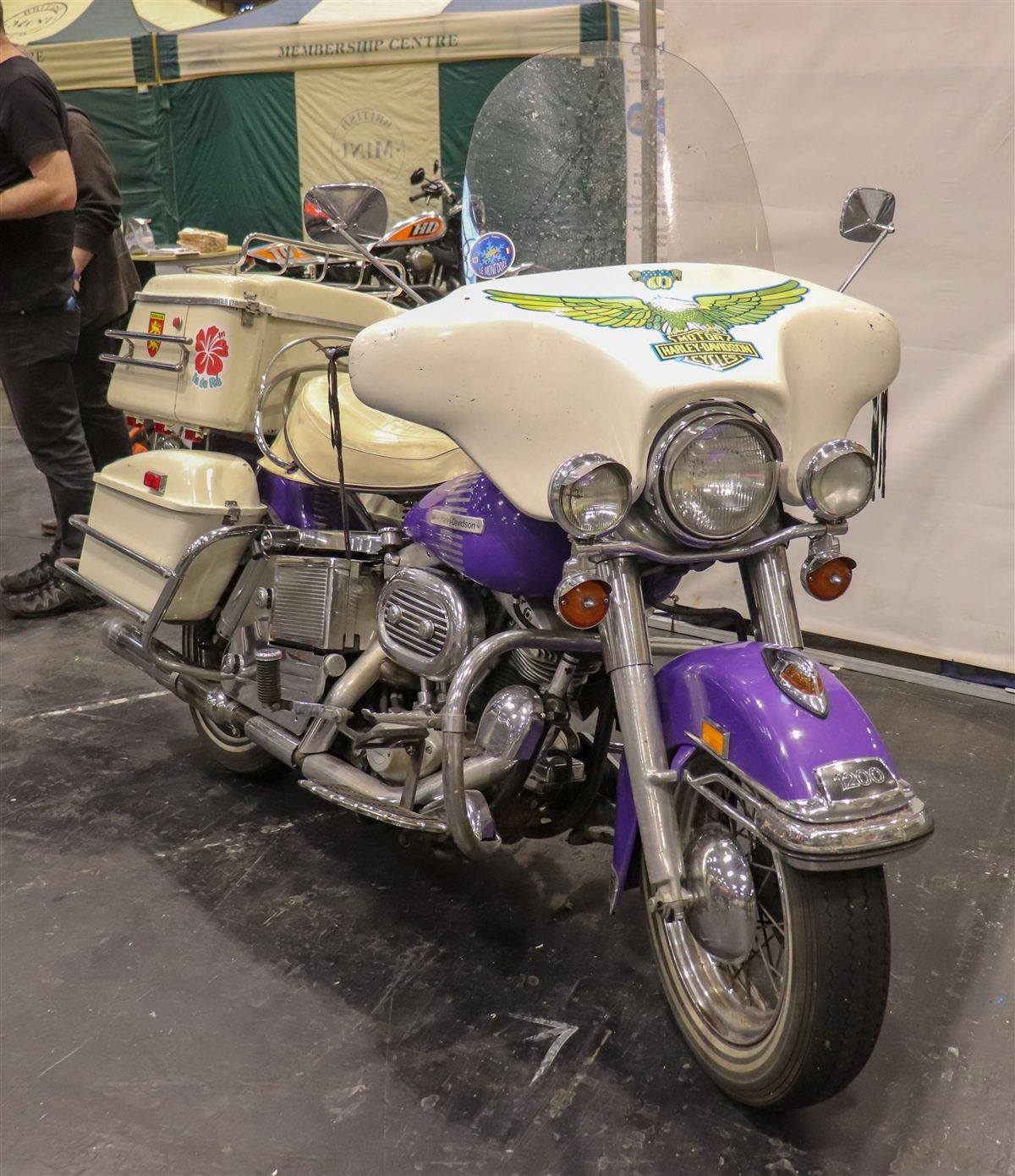

| MODEL | HARLEY-DAVIDSON ELECTRA GLIDE FLH 1200 1974 |
| Year | 1974 |
| Engine Type | Four-stroke, 45° V-twin, OHV, 2 valves per cylinder |
| Displacement / Capacity | 1207 cc / 74 cu in |
| Bore X Stroke | 87.3 x 100.8 mm |
| Compression Ratio | 8.0:1 |
| Cooling System | Air cooled |
| Max Power | 43.3 kW / 58 hp @ 5150 rpm |
| Max Torque | 95 Nm / 70 lb-ft @ 4000 rpm |
| Ignition | Battery and coil, alternator charging |
| Induction | Tillotson 1-5/8 in dual-venturi diaphragm carburettor with accelerator pump |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4-speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic fork |
| Rear Suspension | Swingarm with twin shocks |
| Front Brakes | Single 254 mm disc |
| Rear Brakes | Single 254 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 340 kg / 749.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 5.10-16 |
| Rear Tyre | 5.10-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 1974 FLH Electra Glide continued the 1973 recipe: 74 cu in alternator Shovelhead, four-speed foot-shift gearbox, chain final drive and disc brakes front and rear. It was Harley-Davidson's flagship tourer of the AMF era, often fitted with the optional batwing fairing.
