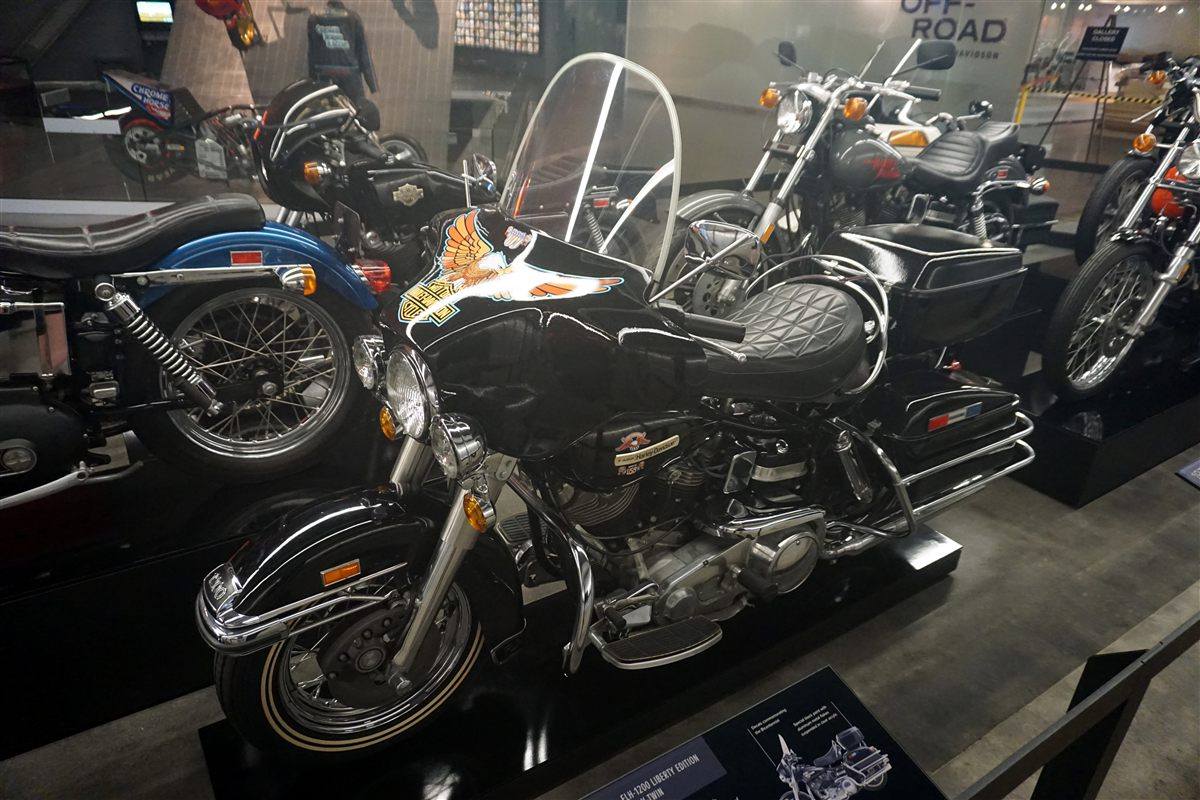

| MODEL | HARLEY-DAVIDSON ELECTRA GLIDE FLH 1200 1976 - 1977 |
| Year | 1976 - 1977 |
| Engine Type | Four stroke, 45° V-twin, OHV, 2 valves per cylinder (Shovelhead) |
| Displacement / Capacity | 1207 cc / 74 cu in |
| Bore X Stroke | 87.3 x 100.8 mm |
| Compression Ratio | 8.0:1 |
| Cooling System | Air cooled |
| Max Power | 42.3 kW / 58 hp @ 5150 rpm |
| Max Torque | 95 Nm / 70 lb-ft @ 4000 rpm |
| Ignition | Alternator / battery |
| Induction | Tillotson 1-5/8 in dual-venturi diaphragm carburettor with accelerator pump |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic forks |
| Rear Suspension | Swinging arm |
| Front Brakes | Single 254 mm disc |
| Rear Brakes | Single 254 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 340 kg / 749.6 lbs |
| WHEEL SPECS | |
| Front Tyre | 5.10-16 |
| Rear Tyre | 5.10-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 1976-77 FLH 1200 carried over the Shovelhead 74 cu in engine, four-speed gearbox and twin disc brakes of the 1975 bike. For America's Bicentennial, Harley offered Liberty Edition paint and badging. In 1977 an unfaired FLHS Sport version joined the range, and the 1200 started to be overshadowed by the larger 80 cu in engine that arrived for 1978.
