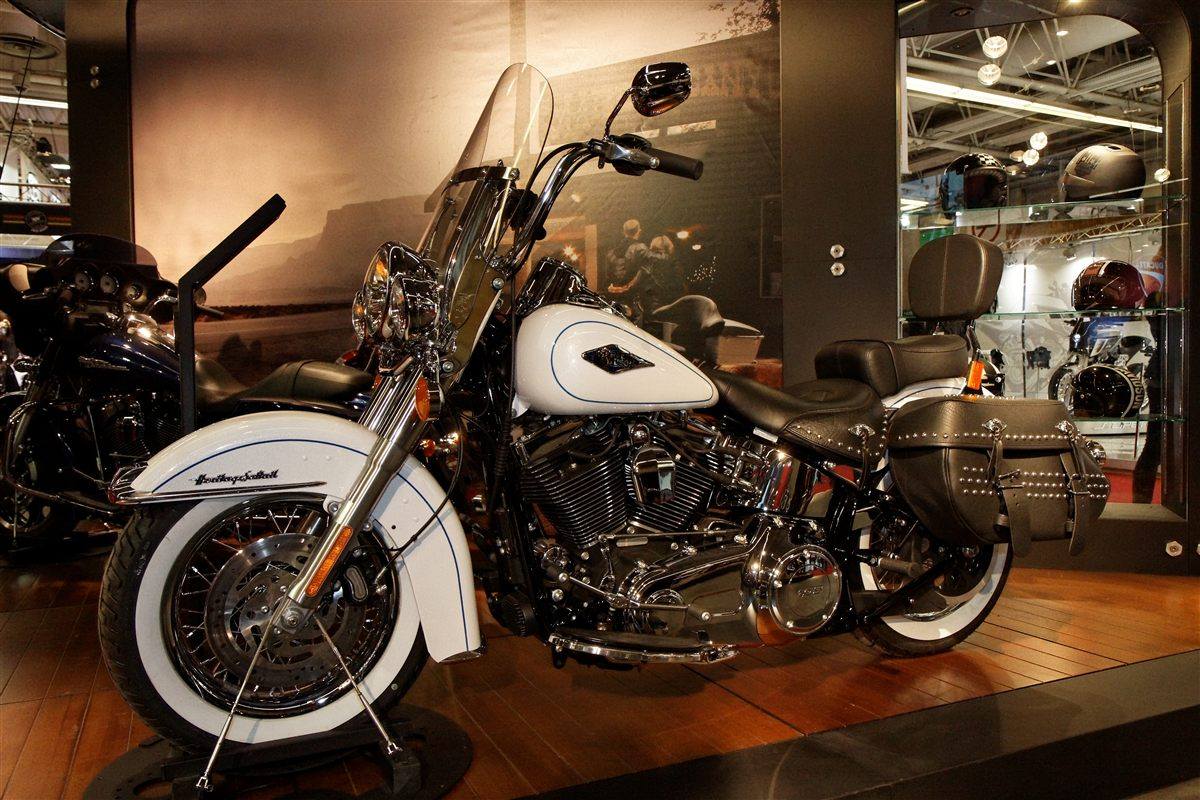

| MODEL | HARLEY-DAVIDSON HERITAGE SOFTAIL CLASSIC 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 103B (High Output Twin Cam 103B for 2017), pushrod OHV, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 (2016); 9.7:1 (2017) |
| Cooling System | Air cooled |
| Max Power | 54.6 kW / 74.8 hp @ 5000 rpm (2016); 56.9 kW / 78 hp @ 5020 rpm (2017) |
| Max Torque | 130 Nm / 95.9 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed Cruise Drive |
| Clutch | Multi-plate, wet |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, 'beer can' covers |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks |
| Front Brakes | Single 300 mm disc, 4-piston fixed caliper, ABS |
| Rear Brakes | Single 292 mm disc, 2-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2405 mm / 94.6 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 690 mm / 27.1 in (unladen) |
| Wheelbase | 1635 mm / 64.3 in |
| Ground Clearance | 131 mm / 5.15 in |
| Dry Weight | 333 kg / 734 lbs |
| Wet Weight | 347 kg / 763 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90B16 72H |
| Rear Tyre | MU85B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 mpg US |
| Top Speed | — |
The final two years of the Twin Cam Heritage Softail Classic before the 2018 Softail redesign. The Softail front brake with a fixed four-piston caliper and 300 mm rotor was fitted, and for 2017 the engine became the High Output Twin Cam 103B with a little more power. Whitewall tyres on laced wheels, leather saddlebags and the detachable windshield kept its 1940s dresser character.
