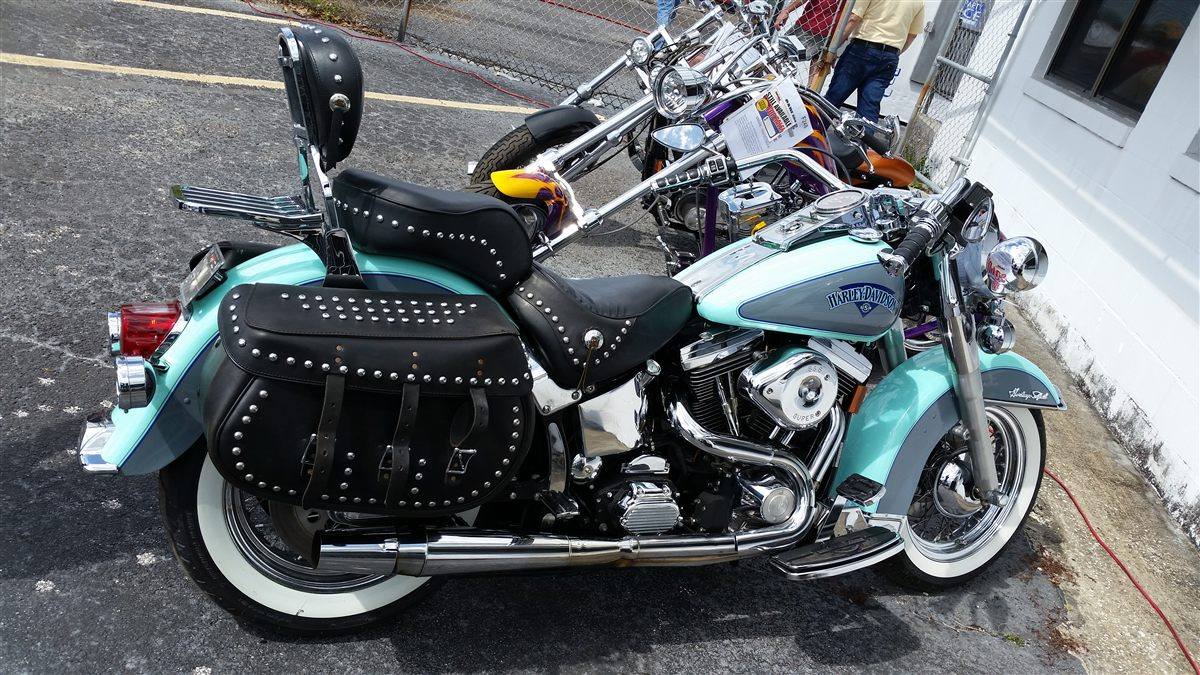

| MODEL | HARLEY-DAVIDSON HERITAGE SOFTAIL CLASSIC FLSTC 1340 1994 - 1999 |
| Year | 1994 - 1999 |
| Engine Type | Four stroke, 45° V-twin, OHV, 2 valves per cylinder (Evolution) |
| Displacement / Capacity | 1337 cc / 81.5 cu in |
| Bore X Stroke | 88.8 x 108 mm |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Max Power | 48.9 kW / 67 hp @ 6000 rpm |
| Max Torque | 97 Nm / 71.5 lb-ft @ 2350 rpm |
| Ignition | Analogue CDI |
| Induction | 38 mm Keihin carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | Multi-plate, cable operated |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Steel double cradle |
| Front Suspension | Telescopic fork |
| Rear Suspension | Dual shocks (hidden Softail type) |
| Front Brakes | Single 292 mm disc |
| Rear Brakes | Single 292 mm disc |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 673 mm / 26.5 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 317 kg / 698.9 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 140/90-16 |
| Rear Tyre | 140/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The mid-to-late 1990s Heritage Softail Classic carried on with the 1340 Evolution engine and five-speed belt-drive driveline, by now a refined and reliable package. The nostalgic dresser look - studded bags, windshield, wide whitewall-style 16-inch wheels and big chrome headlamp - made it one of Harley's best-selling models. 1999 was the last year before the Twin Cam 88B took over.
