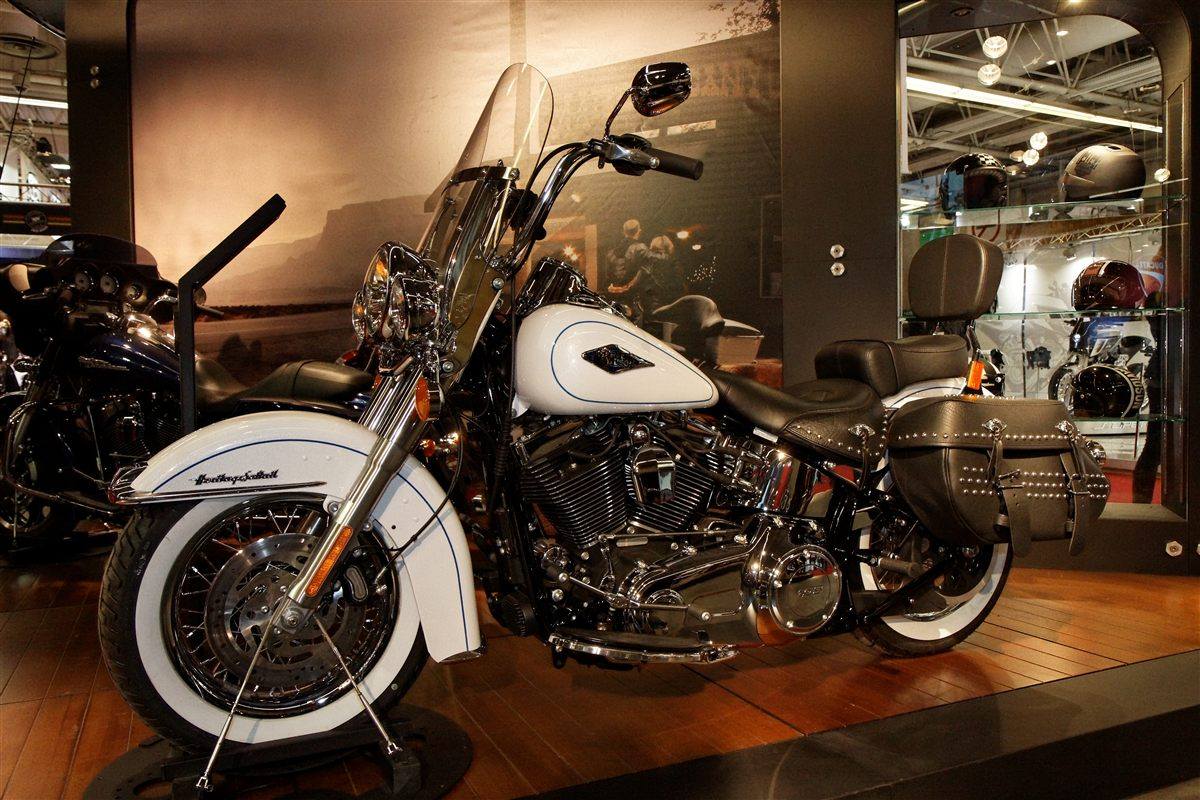

| MODEL | HARLEY-DAVIDSON HERITAGE SOFTAIL CLASSIC FLSTC 2010 |
| Year | 2010 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 96B (rigid-mounted, counter-balanced), pushrod OHV, 2 valves per cylinder |
| Displacement / Capacity | 1584 cc / 96 cu in |
| Bore X Stroke | 95.25 x 111.25 mm / 3.75 x 4.38 in |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 125 Nm / 92.2 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed Cruise Drive |
| Clutch | — |
| Final Drive | Belt, 32/66 ratio |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, 'beer can' covers, 130 mm / 5.1 in travel |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks, 109 mm / 4.3 in travel |
| Front Brakes | Single 292 mm floating disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2400 mm / 94.5 in |
| Overall Width | 955 mm / 37.6 in |
| Overall Height | 1402 mm / 55.2 in |
| Seat Height | 648 mm / 25.5 in (laden); 688 mm / 27.1 in (unladen) |
| Wheelbase | 1638 mm / 64.5 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 331 kg / 730 lbs (as shipped) |
| Wet Weight | 345 kg / 761 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90B16 72H |
| Rear Tyre | 150/80B16 71H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 6.72 / 4.36 L/100 km (35 / 54 mpg US, EPA urban / highway) |
| Top Speed | — |
The 2010 Heritage Softail Classic carried over the retro restyle of 2009 with only detail changes: a new fuel-tank sender for more accurate fuel readings and a helical-cut fifth gear to quieten the six-speed gearbox. It remained Harley's 1940s-flavoured light tourer, with studded leather saddlebags, a detachable windshield, laced wheels and hidden rear shocks that give a hardtail look.
