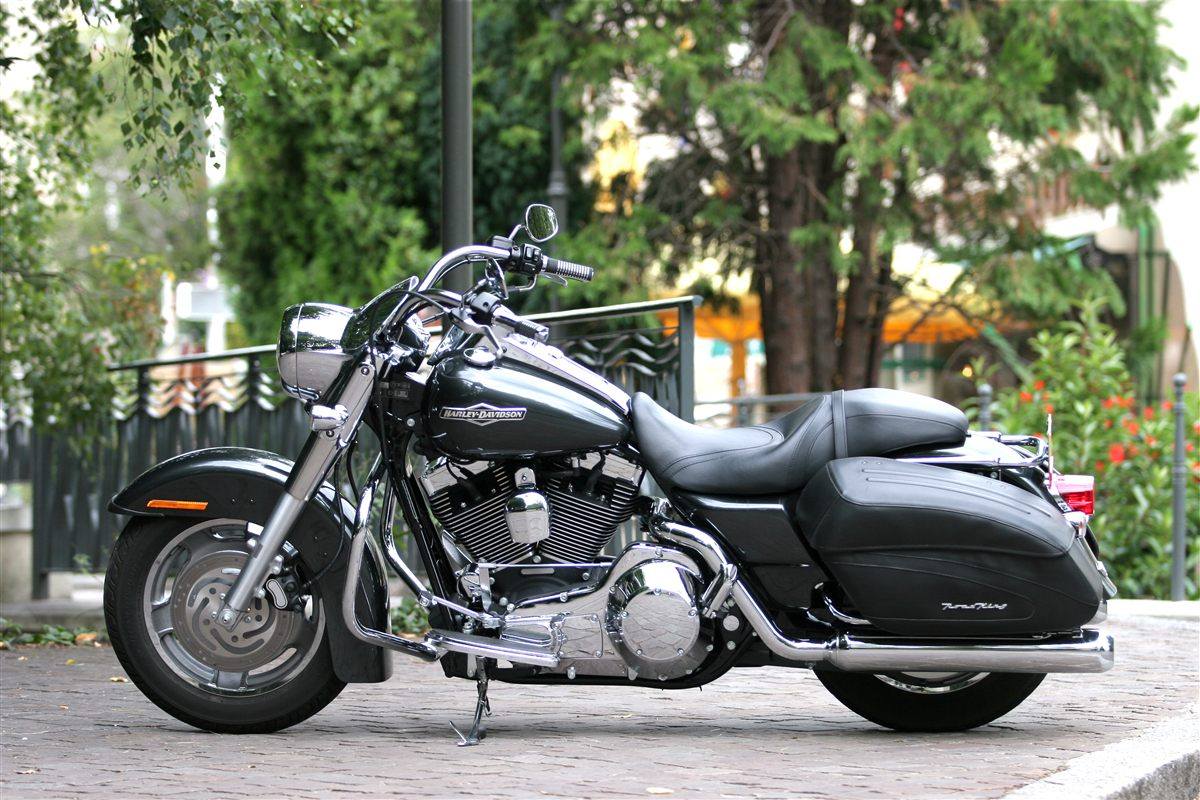

| MODEL | HARLEY-DAVIDSON ROAD KING CUSTOM FLHRS/I 2004 - 2005 |
| Year | 2004 - 2005 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 88, pushrod-operated OHV, hydraulic self-adjusting lifters, 2 valves per cylinder, vibration-isolation mounted |
| Displacement / Capacity | 1449 cc / 88.4 cu in |
| Bore X Stroke | 95.3 x 101.6 mm |
| Compression Ratio | 8.9:1 |
| Cooling System | Air cooled |
| Max Power | 48.8 kW / 67 hp @ 5200 rpm |
| Max Torque | 116.6 Nm / 86 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | ESPFI electronic sequential port fuel injection, 38 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump, crank-driven gerotor pressure and dual scavenge pump, spin-on pressurised oil filter |
| Gear Box | 5 Speed |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel, square-section backbone with twin downtubes; MIG-welded rectangular-tube steel swingarm |
| Front Suspension | 41.3 mm telescopic fork |
| Rear Suspension | Short, air-adjustable shocks |
| Front Brakes | 2x 292 mm discs, 4-piston calipers |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2440 mm / 96.1 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 718.8 mm / 28.3 in |
| Wheelbase | 1613 mm / 63.5 in |
| Ground Clearance | 119.4 mm / 4.7 in |
| Dry Weight | 327 kg / 721 lbs |
| Wet Weight | 344 kg / 757 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90B16 72H |
| Rear Tyre | MU85B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 19 Litres / 5.0 US gal |
| Fuel Consumption | 5 L/100 km (approx. 20 km/l, highway) |
| Top Speed | — |
Launched for 2004, the Road King Custom gave the touring Road King a lower, cleaner custom look. It had the lowest seat in the family thanks to lowered rear suspension, pulled-back beach-style bars, smooth fenders, slotted cast wheels, a wider rear tyre and leather-covered bags, with the Twin Cam 88 and five-speed gearbox underneath. Reviewers liked its styling and economy but noted limited cornering clearance and small bags.
