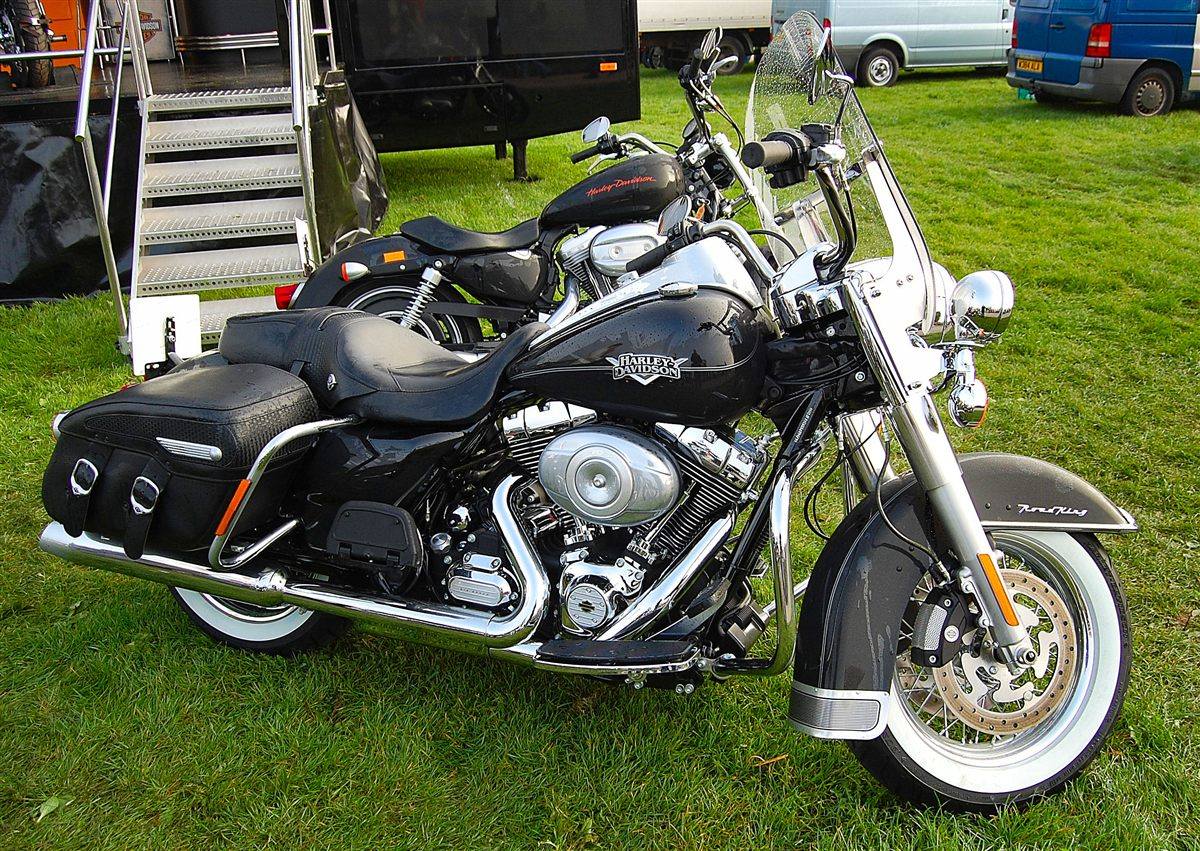

| MODEL | HARLEY-DAVIDSON ROAD KING FLHR 2012 |
| Year | 2012 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 103 with integrated oil cooler, vibration isolation-mounted, pushrod-operated OHV with hydraulic self-adjusting lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103 cu in |
| Bore X Stroke | 98.4 x 111.3 mm / 3.875 x 4.38 in |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled, oil cooler |
| Max Power | — |
| Max Torque | 135 Nm / 100 lb-ft @ 3250 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic sequential port fuel injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressurized, dry-sump with oil cooler |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Multi-plate, wet |
| Final Drive | Belt, 32/68 ratio |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, two-piece stamped and welded backbone, twin downtubes |
| Front Suspension | 41.3 mm telescopic fork, 117 mm / 4.6 in travel |
| Rear Suspension | Air-adjustable shocks, 76 mm / 3.0 in travel |
| Front Brakes | 2 x 300 mm discs, Brembo 32 mm 4-piston fixed calipers, optional ABS |
| Rear Brakes | Single 300 mm disc, Brembo 32 mm 4-piston fixed caliper, optional ABS |
| DIMENSION SPECS | |
| Overall Length | 2413 mm / 95.0 in |
| Overall Width | 950 mm / 37.4 in |
| Overall Height | 1400 mm / 55.1 in |
| Seat Height | 673 mm / 26.5 in (laden); 711 mm / 28.0 in (unladen) |
| Wheelbase | 1613 mm / 63.5 in |
| Ground Clearance | 130 mm / 5.1 in |
| Dry Weight | 351.5 kg / 775 lbs (as shipped) |
| Wet Weight | 368.3 kg / 812 lbs |
| WHEEL SPECS | |
| Front Tyre | Dunlop D408F 130/80B17 65H |
| Rear Tyre | Dunlop D407 180/65B16 81H |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 mpg (combined) |
| Top Speed | — |
For 2012 the base Road King got the Twin Cam 103 as standard, adding capacity, an oil cooler and noticeably more low-down pull over the old 96. The rest of the package carried over from the 2009-on touring chassis: detachable windshield, hard saddlebags, air-adjustable rear shocks and Brembo brakes. ABS was optional as part of a security package.
