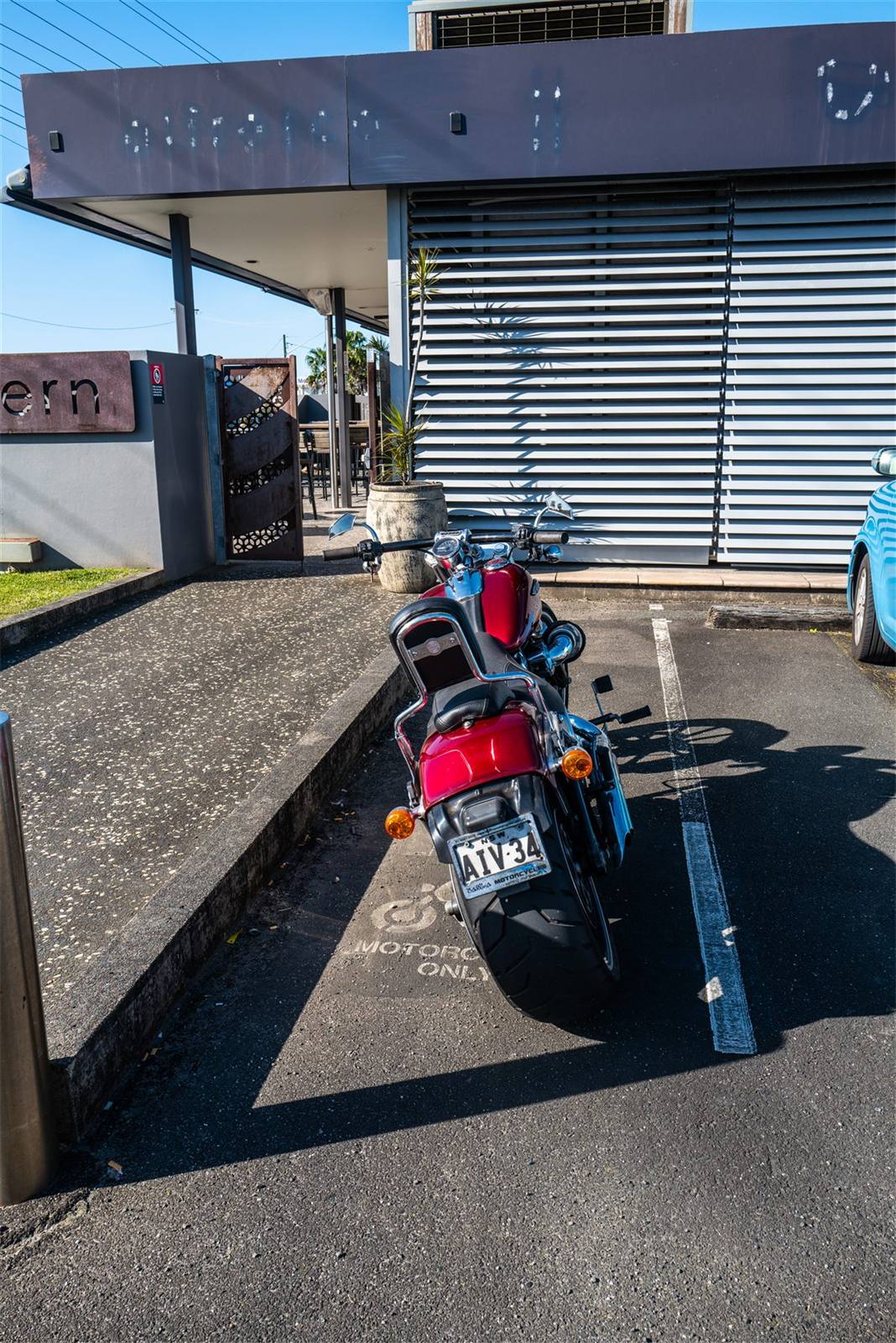

| MODEL | HARLEY-DAVIDSON SOFTAIL BREAKOUT 2013 |
| Year | 2013 |
| Engine Type | Four-stroke V-twin, Twin Cam 103, pushrod-operated OHV, hydraulic self-adjusting lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 129.5 Nm / 95.5 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed Cruise Drive |
| Clutch | Multi-plate, wet |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, 143 mm / 5.6 in travel |
| Rear Suspension | Hidden, horizontally mounted coil-over shocks, 91 mm / 3.6 in travel |
| Front Brakes | Single 292 mm disc, 4-piston caliper (ABS optional) |
| Rear Brakes | Single 292 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2445 mm / 96.3 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 655 mm / 25.8 in |
| Wheelbase | 1710 mm / 67.3 in |
| Ground Clearance | 120 mm / 4.7 in |
| Dry Weight | 308 kg / 680 lbs |
| Wet Weight | 322 kg / 710 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/60B21 63H |
| Rear Tyre | 240/40R18 79V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 US mpg |
| Top Speed | — |

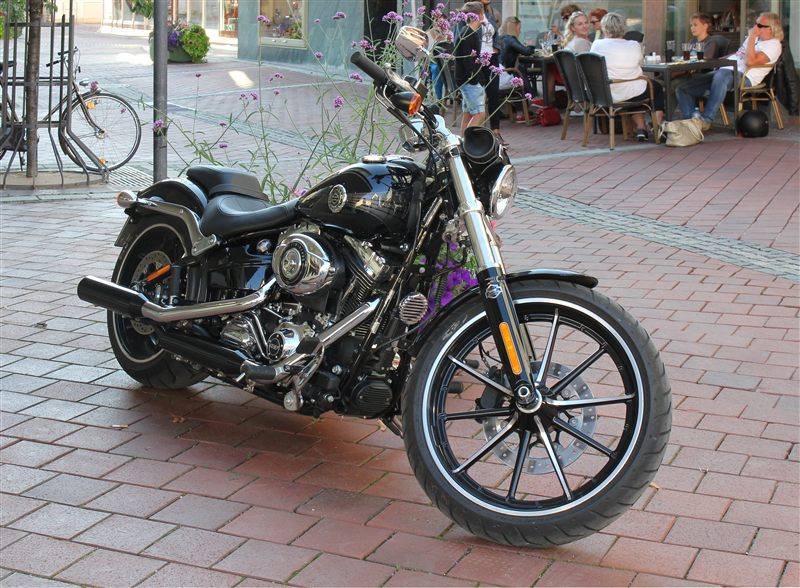

The production Breakout arrived during 2013, following the CVO version, as a long, low Softail drag-style cruiser. It combined a skinny 21-inch front wheel and wide 240 mm rear tyre on Gasser-style cast wheels with chopped fenders, a drag bar, a slim tank console and a gloss-black oil tank. The rigid-mounted Twin Cam 103 and hidden horizontal rear shocks gave it a clean hardtail profile; ABS and security were options.
