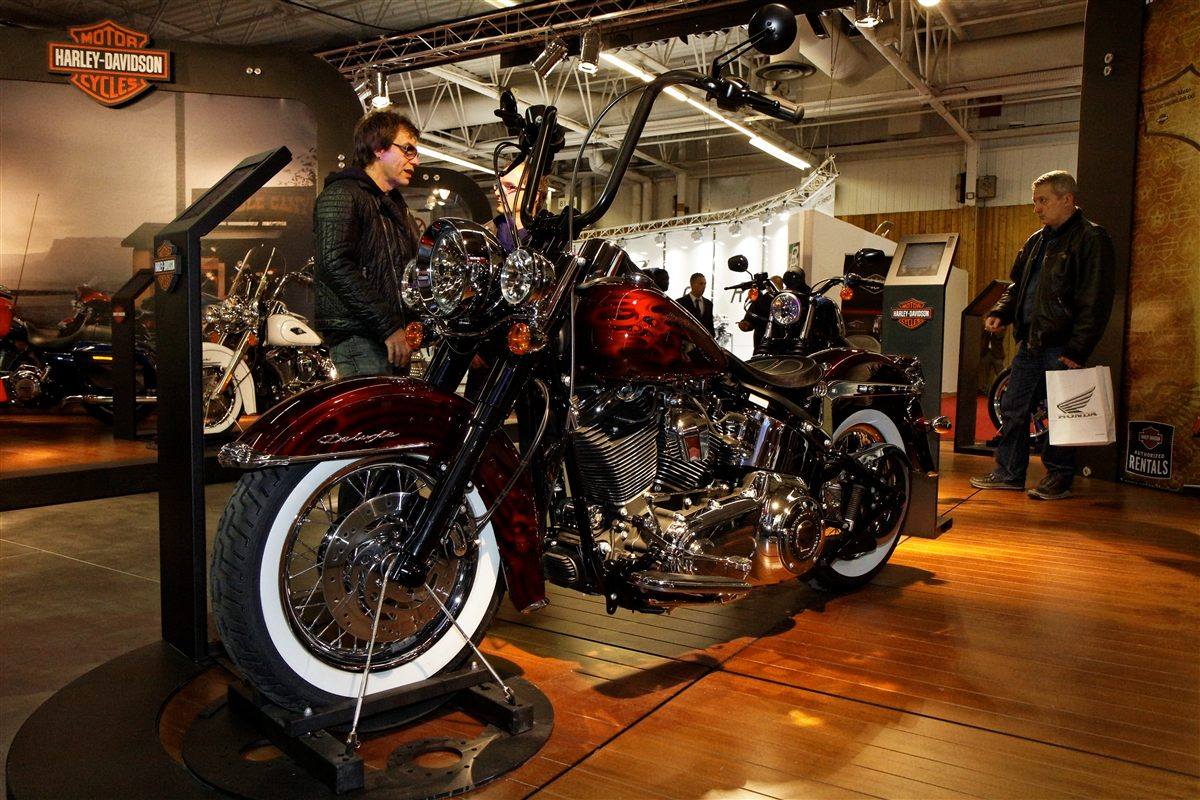

| MODEL | HARLEY-DAVIDSON SOFTAIL DELUXE FLSTN 2012 |
| Year | 2012 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 103B (counterbalanced), pushrod OHV, hydraulic lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 132 Nm / 98.8 lb-ft @ 3250 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed (Cruise Drive) |
| Clutch | Wet, multi-plate |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, stamped/cast/forged junctions, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, chrome dust covers |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks |
| Front Brakes | Single 292 mm disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2400 mm / 94.4 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 622 mm / 24.5 in (laden), 670 mm / 26.4 in (unladen) |
| Wheelbase | 1635 mm / 64.4 in |
| Ground Clearance | 114 mm / 4.5 in |
| Dry Weight | — |
| Wet Weight | 329 kg / 726 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90-16 72H |
| Rear Tyre | MU85B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 US mpg |
| Top Speed | — |
For 2012 the Softail Deluxe received the larger 1690 cc Twin Cam 103B engine with an integrated oil cooler, giving noticeably more low-down torque than the 96 cubic-inch unit it replaced. The styling stayed true to the model's 1950s theme, and ABS remained available as part of an optional package.
