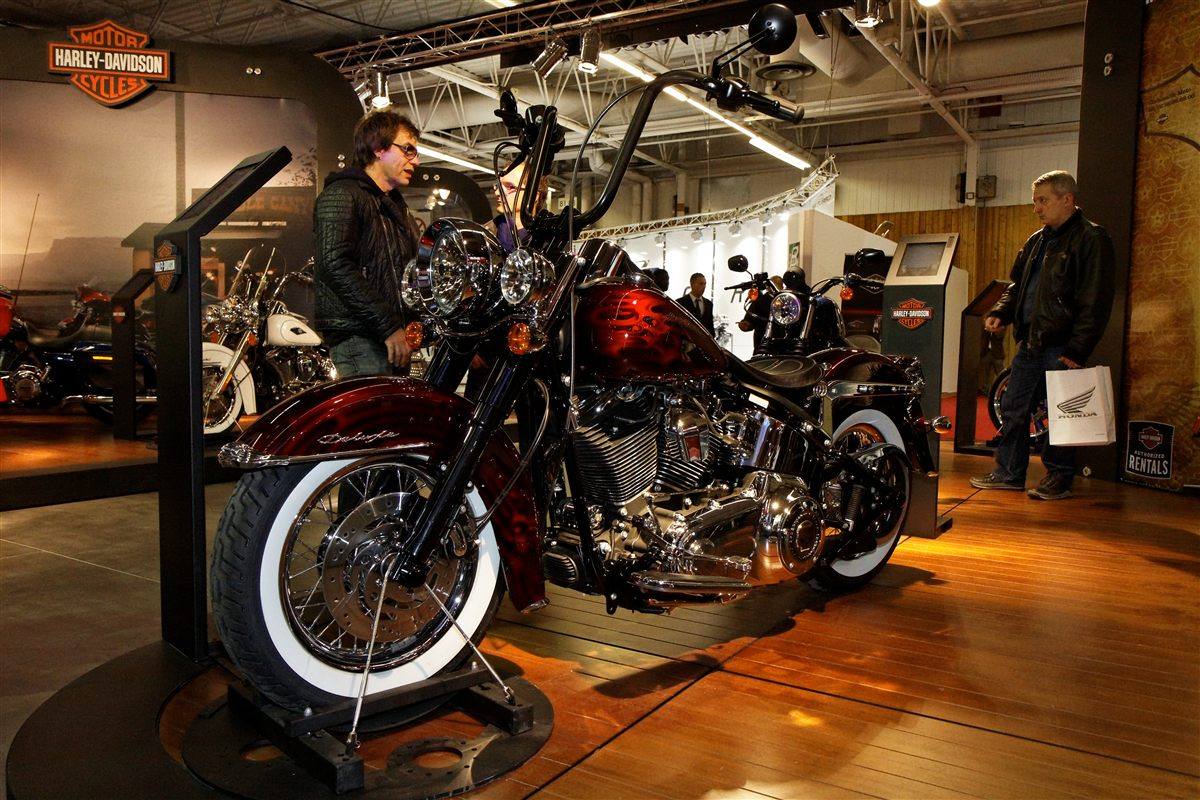

| MODEL | HARLEY-DAVIDSON SOFTAIL DELUXE FLSTN/I 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 88B (counterbalanced), pushrod-operated OHV with hydraulic lifters, 2 valves per cylinder |
| Displacement / Capacity | 1449 cc / 88.4 cu in |
| Bore X Stroke | 95.3 x 101.6 mm |
| Compression Ratio | 8.9:1 |
| Cooling System | Air cooled |
| Max Power | 48.8 kW / 67 hp @ 5200 rpm |
| Max Torque | 116.6 Nm / 86 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | FLSTN: 40 mm CV carburettor with enrichener and accelerator pump; FLSTNI: ESPFI, 38 mm throttle bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump, crank-driven gerotor pressure and dual scavenge pump |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, chrome dust covers |
| Rear Suspension | Hidden, horizontally mounted coil-over shocks |
| Front Brakes | Single 292 mm disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2405 mm / 94.7 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 622 mm / 24.5 in (laden); 673 mm / 26.5 in (unladen) |
| Wheelbase | 1638 mm / 64.5 in |
| Ground Clearance | 122 mm / 4.8 in |
| Dry Weight | 315 kg / 693 lbs |
| Wet Weight | 329 kg / 726 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90-16 (Dunlop D402F) |
| Rear Tyre | MU85B16 (Dunlop D402) |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | 170 km/h / 106 mph |
The Softail Deluxe arrived for 2005 as a nostalgic, 1950s-flavoured cruiser with full valanced fenders, laced 16-inch wheels on wide whitewall tyres, a teardrop tank and pulled-back bars. Its very low seat made it the lowest Softail of the time. Buyers could choose the carburetted FLSTN or fuel-injected FLSTNI, both with the counterbalanced Twin Cam 88B and five-speed gearbox.
