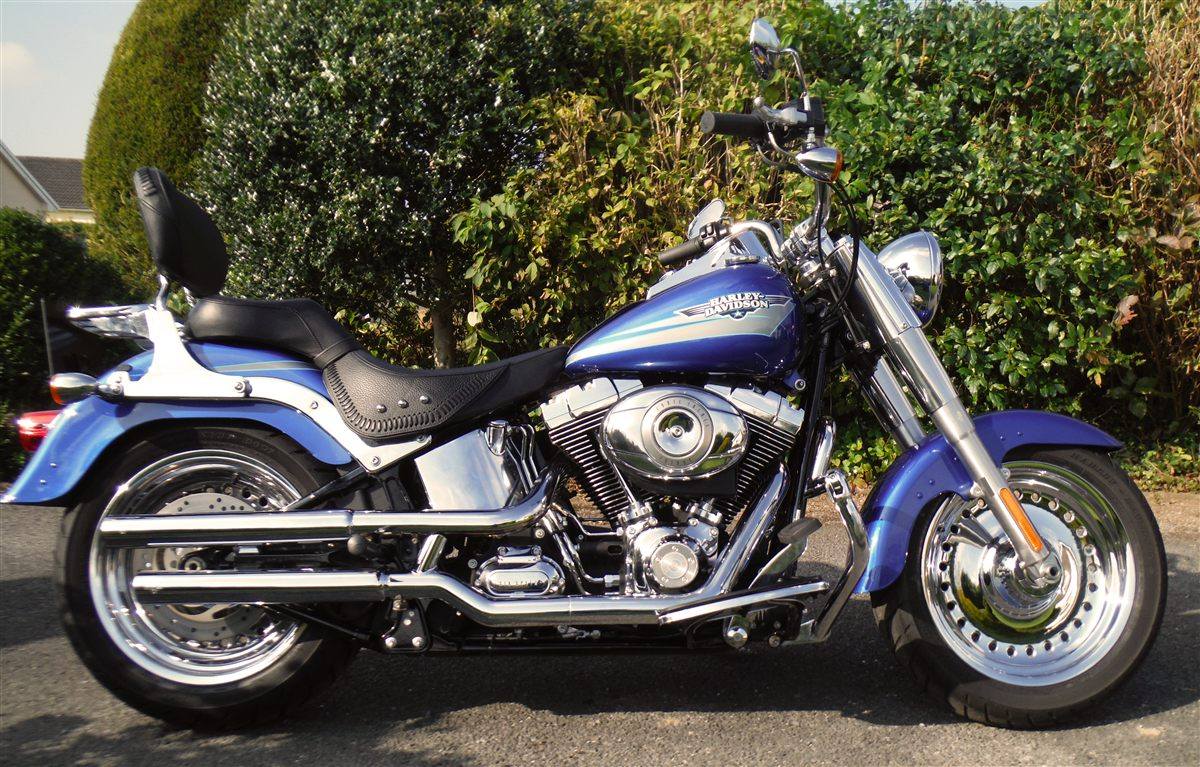

| MODEL | HARLEY-DAVIDSON SOFTAIL FAT BOY LO FLSTFB 2014 |
| Year | 2014 |
| Engine Type | Four stroke, V-twin, Twin Cam 103B, counter-balanced, pushrod-operated OHV, hydraulic self-adjusting lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm / 3.875 x 4.375 in |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 132 Nm / 97.4 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressurized, dry-sump |
| Gear Box | 6 Speed Cruise Drive |
| Clutch | Multi-plate, wet |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, lowered 1.15 in |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks, lowered 1.15 in |
| Front Brakes | Single 292 mm disc, 4-piston caliper, ABS |
| Rear Brakes | Single 292 mm disc, 2-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2385 mm / 93.9 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 616 mm / 24.3 in (laden), 670 mm / 26.4 in (unladen) |
| Wheelbase | 1630 mm / 64.2 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | 317.5 kg / 700 lbs |
| Wet Weight | 330 kg / 731 lbs |
| WHEEL SPECS | |
| Front Tyre | 140/75R17 67V |
| Rear Tyre | 200/55R17 78V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 US mpg |
| Top Speed | — |
For 2014 ABS became standard on the Fat Boy Lo, with the sensors and hardware hidden in the wheel hubs to keep the clean look. The Twin Cam 103, lowered suspension, narrow seat, black Bullet Hole wheels and blacked-out finishes carried over, with new paint colours.
