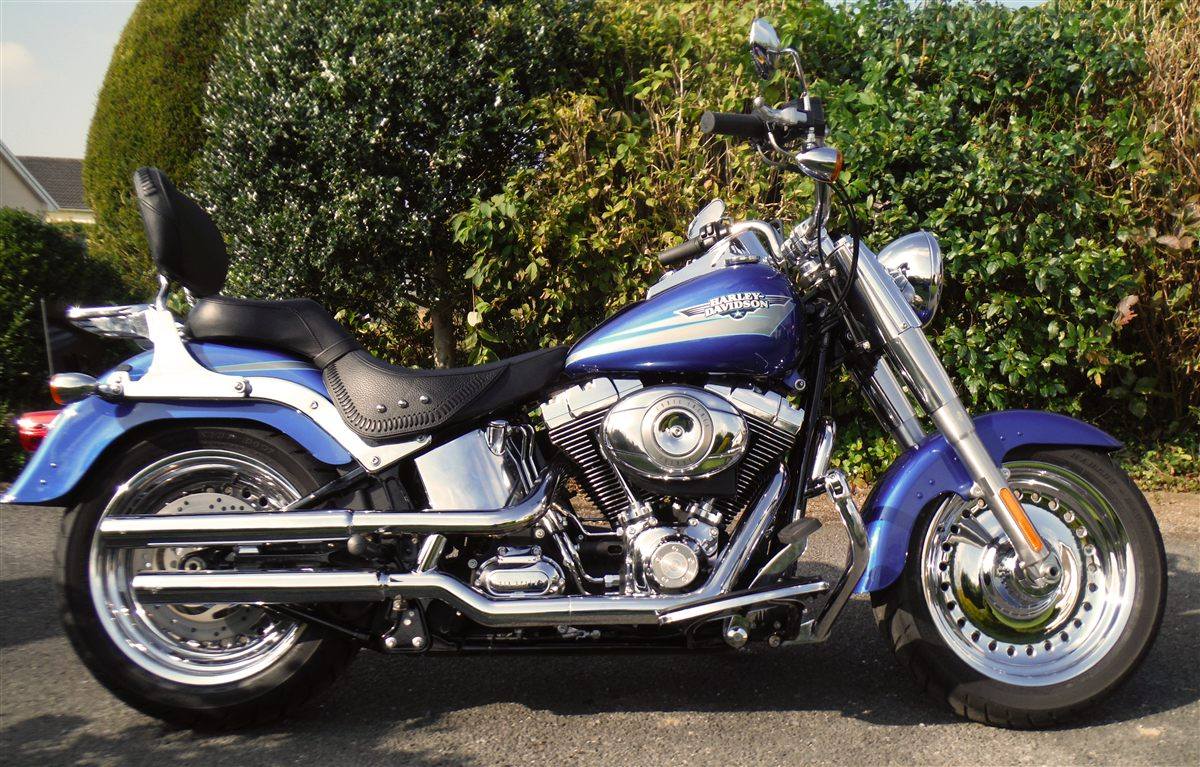

| MODEL | HARLEY-DAVIDSON SOFTAIL FAT BOY SPECIAL 2016 |
| Year | 2016 |
| Engine Type | Four stroke, V-twin, Twin Cam 103B, pushrod-operated OHV with hydraulic self-adjusting lifters, 2 valves per cylinder, integrated oil cooler |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | 79 hp @ 5250 rpm |
| Max Torque | 132 Nm / 98.2 lb-ft @ 3250 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular-section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork, chrome dust covers |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks |
| Front Brakes | Disc, 4-piston caliper |
| Rear Brakes | Single disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2385 mm / 93.9 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 670 mm / 26.4 in (unladen) |
| Wheelbase | 1630 mm / 64.2 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | 320 kg / 705 lbs |
| Wet Weight | 333 kg / 734 lbs |
| WHEEL SPECS | |
| Front Tyre | 140/75R17 67V |
| Rear Tyre | 200/55R17 78V |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | 195 km/h / 121 mph |
The Fat Boy Special is the lowered, darkened version of the Fat Boy, sold in the US as the Fat Boy Lo. It shares the 1690 cc Twin Cam 103B and hidden-shock Softail chassis, but sits lower, wears black bullet-hole wheels, a black-and-satin-chrome shotgun exhaust and an engine with black powder-coated cylinders and heads. The result is a meaner, murdered-out take on the classic fat custom.
