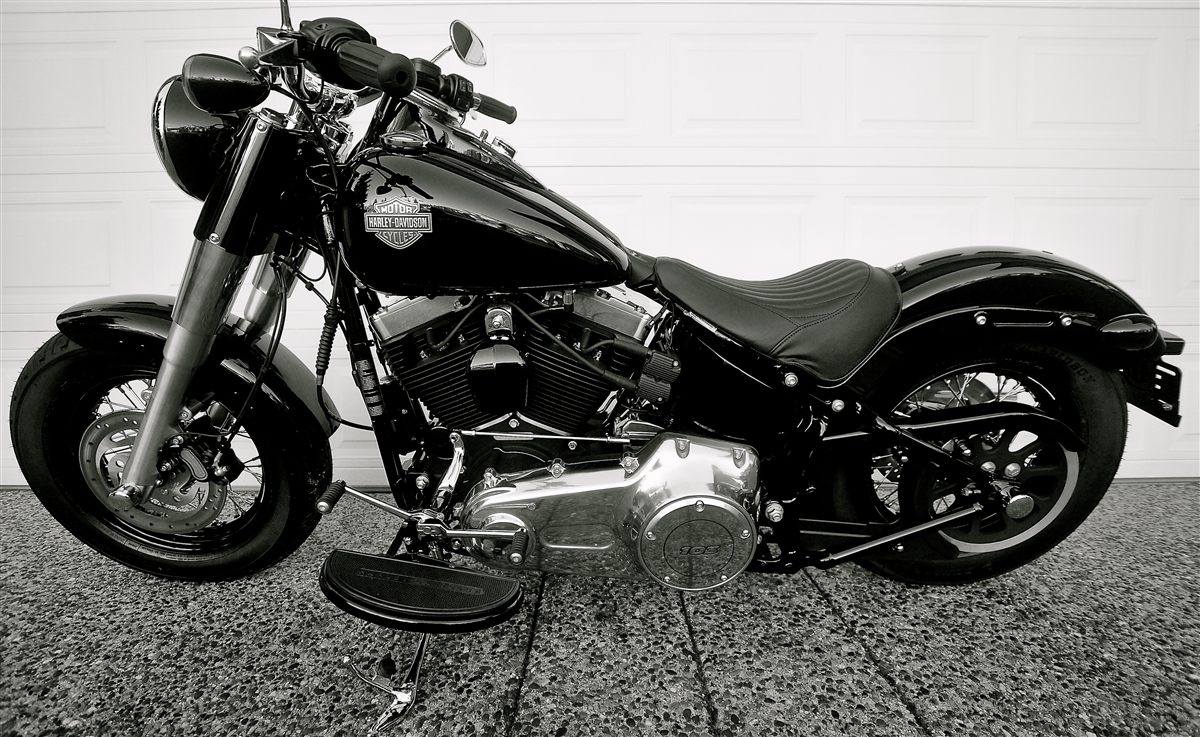

| MODEL | HARLEY-DAVIDSON SOFTAIL SLIM 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 45° V-Twin, Twin Cam 103B, pushrod-operated OHV with hydraulic self-adjusting lifters, 2 valves per cylinder |
| Displacement / Capacity | 1690 cc / 103.1 cu in |
| Bore X Stroke | 98.4 x 111.1 mm |
| Compression Ratio | 9.6:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 132 Nm / 97.4 ft-lb @ 3250 rpm |
| Ignition | Electronic |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork with 'beer can' covers |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks |
| Front Brakes | Single 292 mm disc, 4-piston caliper |
| Rear Brakes | Single 292 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2350 mm / 92.5 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 605 mm / 23.8 in (laden), 658 mm / 25.9 in (unladen) |
| Wheelbase | 1635 mm / 64.3 in |
| Ground Clearance | 115 mm / 4.5 in |
| Dry Weight | 308 kg / 679 lbs |
| Wet Weight | 321 kg / 708 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90B16 72H |
| Rear Tyre | MU85B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The last Twin Cam-powered Softail Slim, sold for 2016 and 2017, was unchanged in essence from earlier years: a blacked-out 1950s-style bobber with Hollywood bars, a solo seat and rigid-look hidden suspension. The 103B engine was praised for its low-rev torque, and the bike was considered easy to manage at walking pace despite its weight. A proximity security fob and ABS were the main options.
