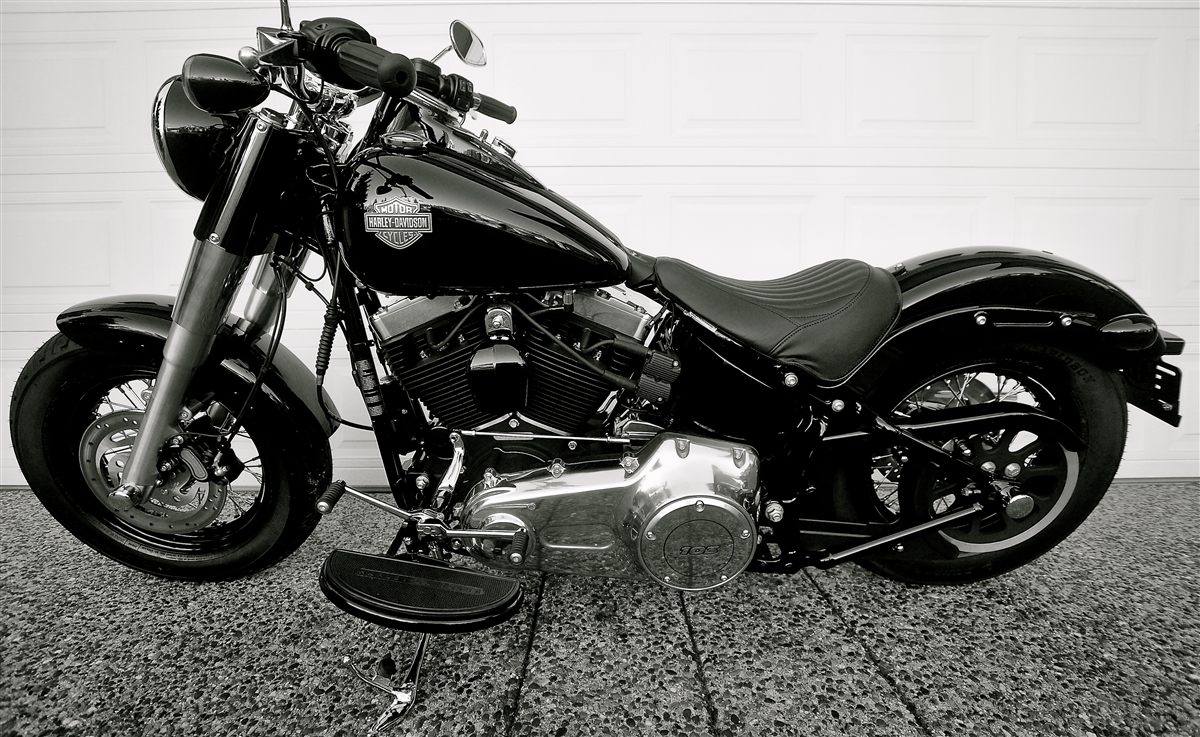

| MODEL | HARLEY-DAVIDSON SOFTAIL SLIM S 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 45° V-Twin, Screamin' Eagle Twin Cam 110B, pushrod-operated OHV, 2 valves per cylinder |
| Displacement / Capacity | 1801 cc / 109.9 cu in |
| Bore X Stroke | 101.6 x 111.1 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | 67.5 kW / 92.5 hp @ 5250 rpm |
| Max Torque | 145 Nm / 107 ft-lb @ 3000 rpm |
| Ignition | Electronic |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | — |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular section backbone, stamped, cast and forged junctions, forged fender supports, MIG welded |
| Front Suspension | 41.3 mm telescopic fork with 'beer can' covers |
| Rear Suspension | Hidden, horizontal-mounted coil-over shocks |
| Front Brakes | Single 292 mm disc, 4-piston caliper, ABS |
| Rear Brakes | Single 292 mm disc, 2-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2350 mm / 92.5 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 650 mm / 25.6 in (unladen) |
| Wheelbase | 1635 mm / 64.3 in |
| Ground Clearance | 115 mm / 4.5 in |
| Dry Weight | 308 kg / 679 lbs |
| Wet Weight | 321 kg / 708 lbs |
| WHEEL SPECS | |
| Front Tyre | MT90B16 72H |
| Rear Tyre | MU85B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 mpg |
| Top Speed | — |
The Slim S was a darker, stronger S-series version of the Softail Slim for 2016-2017. Its main change was the Screamin' Eagle Twin Cam 110B engine, giving roughly 10 percent more torque than the standard 103B. Styling went fully blacked-out, including the shotgun exhaust, with Olive Gold Denim among the paint options, and ABS was fitted as standard. The rigid-look chassis, Hollywood bars and half-moon footboards were carried over from the regular Slim.
