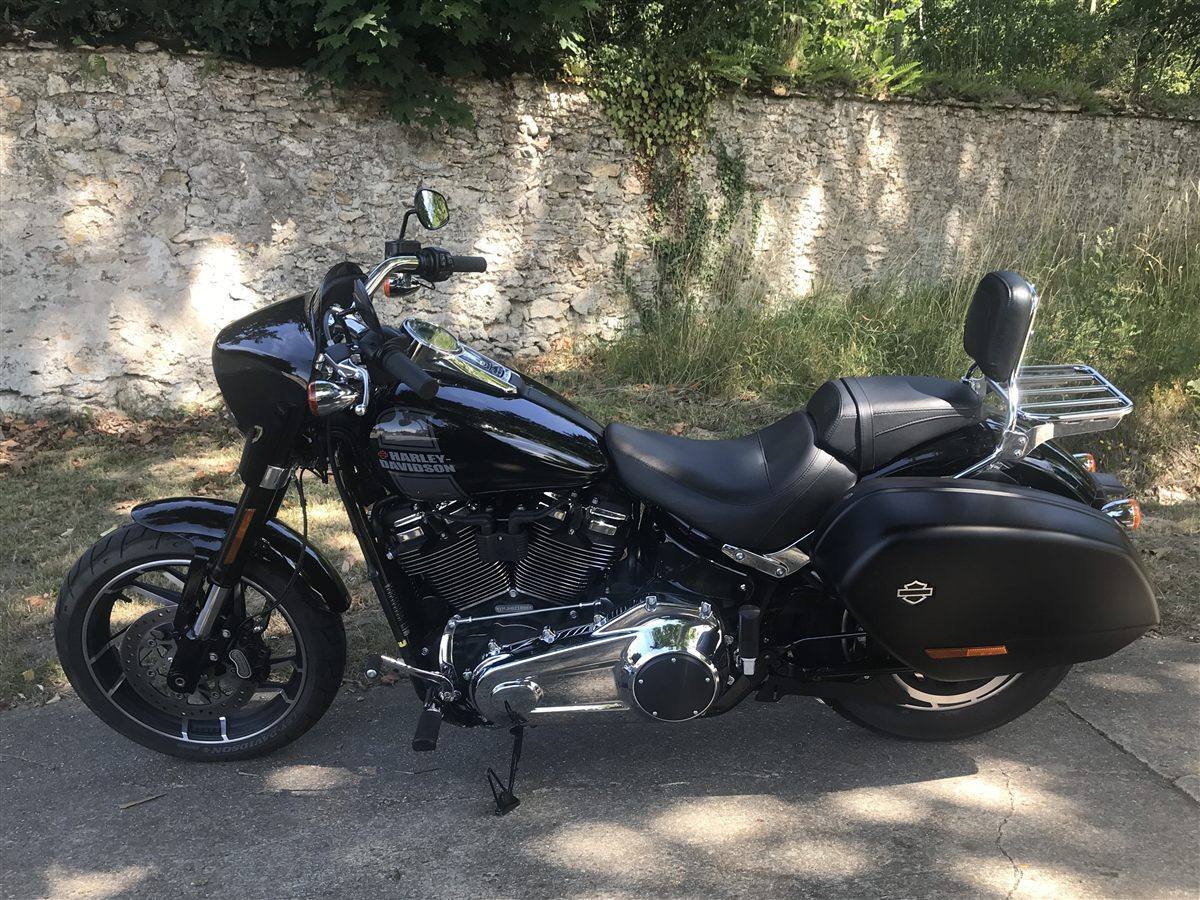

| MODEL | HARLEY-DAVIDSON SOFTAIL SPORT GLIDE 2020 - 2021 |
| Year | 2020 - 2021 |
| Engine Type | Four stroke, 45° V-Twin, Milwaukee-Eight 107, pushrod-operated OHV with hydraulic self-adjusting lifters, 4 valves per cylinder |
| Displacement / Capacity | 1746 cc / 107 cu in |
| Bore X Stroke | 100 x 111 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Air cooled |
| Max Power | 62.8 kW / 86 hp @ 5020 rpm |
| Max Torque | 146 Nm / 108 ft-lb @ 2750 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Pressurized, dry sump with oil cooler |
| Gear Box | 6 Speed |
| Clutch | Mechanical, 10-plate wet, assist |
| Final Drive | Belt, 32/66 ratio |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, rectangular section backbone, stamped, cast and forged junctions, MIG welded, forged aluminium fender supports |
| Front Suspension | 43 mm inverted single-cartridge fork, triple-rate spring, 130 mm / 5.1 in travel |
| Rear Suspension | Hidden free-piston coil-over monoshock, hydraulic preload adjustment, 86 mm / 3.4 in travel |
| Front Brakes | Single 300 mm disc, 4-piston fixed caliper, ABS |
| Rear Brakes | Single 292 mm disc, 2-piston floating caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2325 mm / 91.5 in |
| Overall Width | 960 mm / 37.8 in |
| Overall Height | 1120 mm / 44.1 in |
| Seat Height | 653 mm / 25.7 in (laden), 680 mm / 26.8 in (unladen) |
| Wheelbase | 1625 mm / 64 in |
| Ground Clearance | 120 mm / 4.7 in |
| Dry Weight | 304 kg / 670 lbs |
| Wet Weight | 317 kg / 699 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70B18 63H |
| Rear Tyre | 180/70B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 18.9 Litres / 5.0 US gal |
| Fuel Consumption | 5.0 L/100 km / 47 mpg |
| Top Speed | — |
For 2020-2021 the Sport Glide carried on mechanically unchanged with the Milwaukee-Eight 107, inverted 43 mm fork and adjustable hidden monoshock. It remained the Softail family's convertible tourer, its detachable fairing and clamshell saddlebags letting it switch between a weekend-away bike and a stripped city cruiser. Standard ABS, cruise-friendly six-speed gearbox and a 18.9-litre tank rounded it out.
