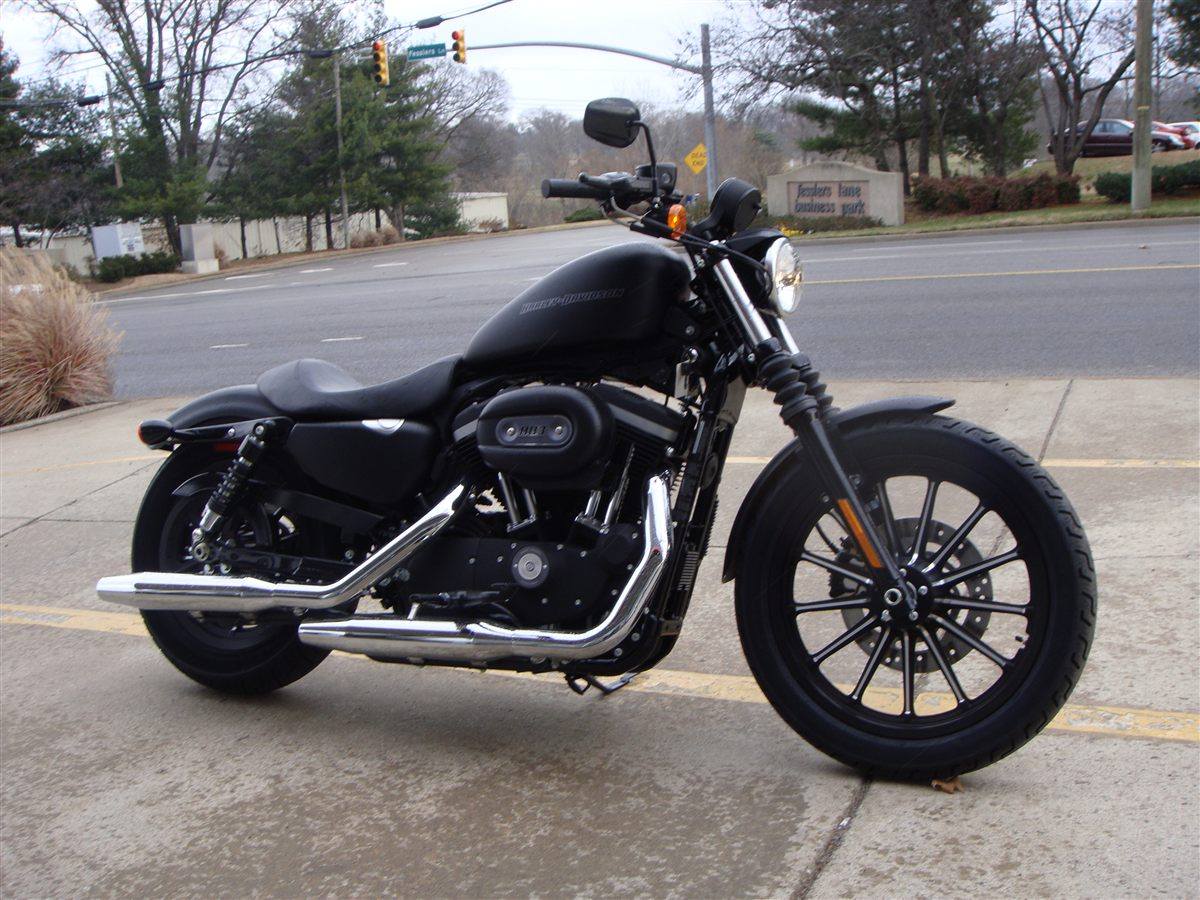

| MODEL | HARLEY-DAVIDSON SPORTSTER 883 IRON 2010 |
| Year | 2010 |
| Engine Type | Four stroke, 45° V-twin, OHV, 2 valves per cylinder (Evolution) |
| Displacement / Capacity | 883 cc / 53.9 cu in |
| Bore X Stroke | 76.2 x 96.8 mm / 3.0 x 3.811 in |
| Compression Ratio | 8.8:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 73 Nm / 53.8 lb-ft @ 3750 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Multi-plate, diaphragm spring, oil bath |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, circular sections, cast junctions |
| Front Suspension | 39 mm telescopic fork, 92 mm / 3.62 in travel |
| Rear Suspension | Coil-over shocks, dual-adjustable preload, 41 mm / 1.6 in travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 260 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2179 mm / 85.8 in |
| Overall Width | 821 mm / 32.3 in |
| Overall Height | 1107 mm / 43.5 in |
| Seat Height | 653 mm / 25.7 in (laden); 683 mm / 26.9 in (unladen) |
| Wheelbase | 1519 mm / 59.8 in |
| Ground Clearance | 120 mm / 4.7 in |
| Dry Weight | — |
| Wet Weight | 256.3 kg / 565 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90B19 57H |
| Rear Tyre | 130/90-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2010 Iron 883 was a carry-over of the 2009 launch bike. It kept the black powder-coated 883 Evolution engine, drag-style bar, solo seat, chopped fender and 19/16-inch black cast wheels. It came in Black Denim and Brilliant Silver Denim at about the same entry price, with a passenger seat and backrest offered as accessories.
