| MODEL | HARLEY-DAVIDSON SPORTSTER 883 IRON 2016 - 2017 |
| Year | 2016 - 2017 |
| Engine Type | Four stroke, 45° V-twin, OHV, 2 valves per cylinder (Evolution) |
| Displacement / Capacity | 883 cc / 53.9 cu in |
| Bore X Stroke | 76.2 x 96.8 mm / 3.0 x 3.811 in |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 73 Nm / 53.8 lb-ft @ 3750 rpm |
| Ignition | Digital CDI |
| Induction | Electronic sequential port fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Multi-plate, diaphragm spring, oil bath |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, circular sections, cast junctions |
| Front Suspension | 39 mm telescopic fork, 92 mm / 3.62 in travel |
| Rear Suspension | Coil-over shocks, dual-adjustable preload, 41 mm / 1.6 in travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 260 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2179 mm / 85.8 in |
| Overall Width | 821 mm / 32.3 in |
| Overall Height | 1107 mm / 43.5 in |
| Seat Height | 653 mm / 25.7 in (laden); 735 mm / 28.9 in (unladen) |
| Wheelbase | 1519 mm / 59.8 in |
| Ground Clearance | 110 mm / 4.3 in |
| Dry Weight | 245 kg / 540 lbs |
| Wet Weight | 255 kg / 562 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90B19 57H |
| Rear Tyre | 150/80B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | 4.6 L/100 km / 51 US mpg |
| Top Speed | — |

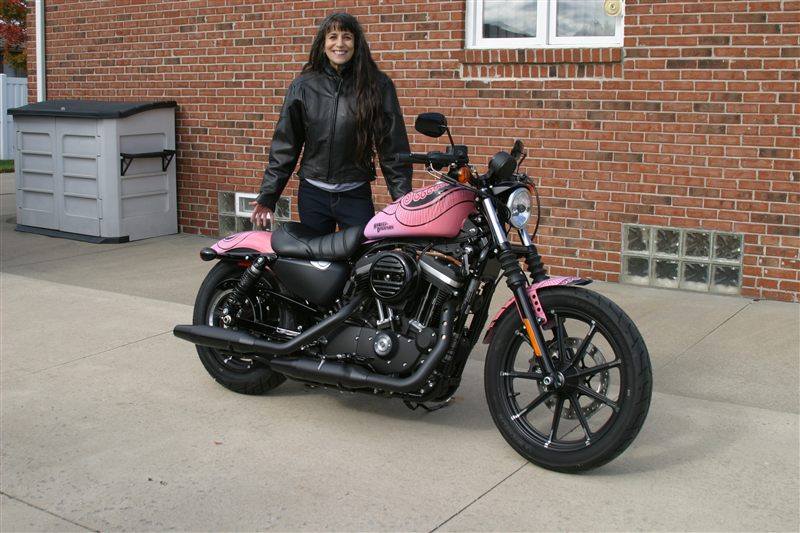

Photo: Kbondra, CC BY-SA 4.0, via Wikimedia Commons

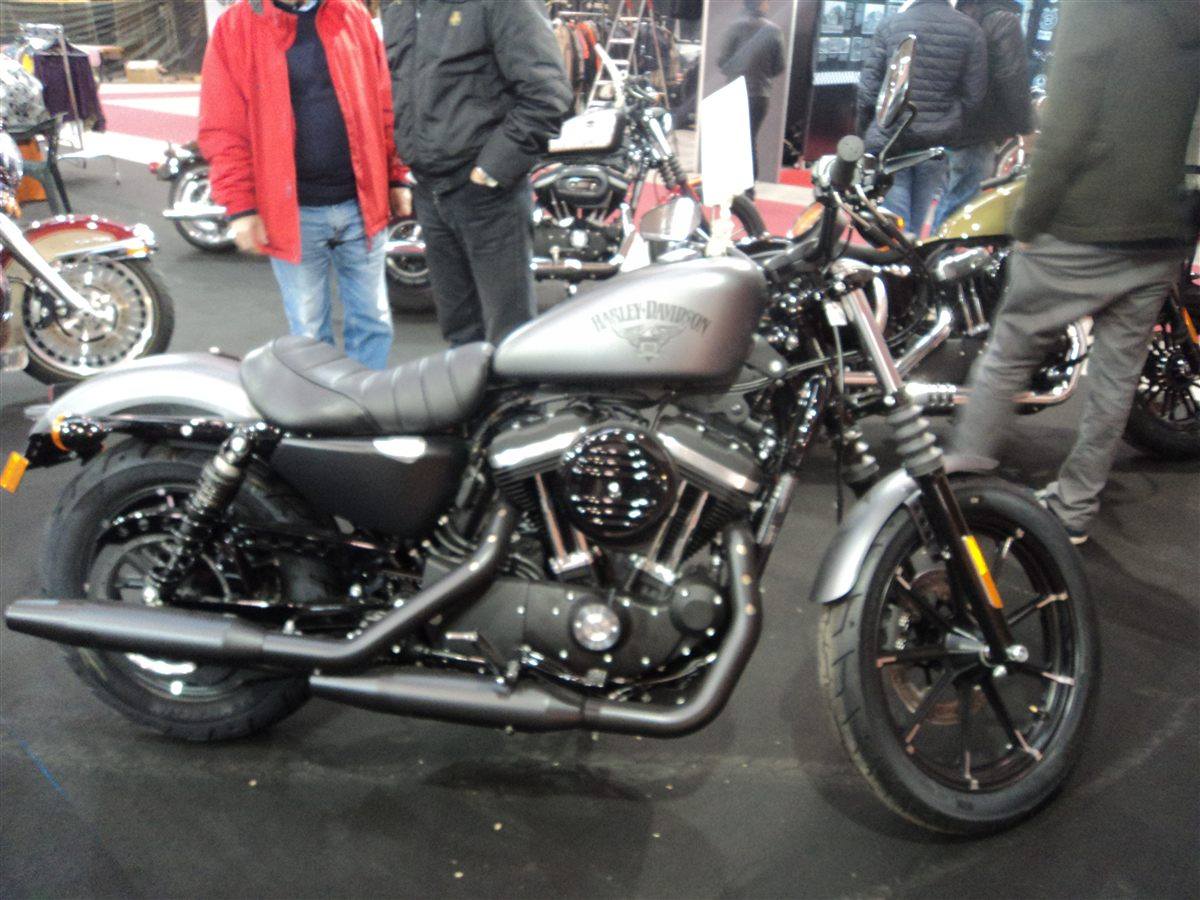

Photo: Kbondra, CC BY-SA 4.0, via Wikimedia Commons
The 2016 Iron 883 was a significant refresh. The listed rake went to 30°, a fatter 150/80-16 rear tyre was fitted, both brake rotors were enlarged, and a straight-cut dual shorty exhaust was used, with the styling still fully blacked out. It kept the drag bar, solo seat, chopped fender and 3.3-gallon peanut tank, and was pitched at younger first-time riders.
