| MODEL | HARLEY-DAVIDSON SPORTSTER 883 IRON 2022 |
| Year | 2022 |
| Engine Type | Air-cooled 45° V-twin, Evolution, pushrod OHV, 2 valves per cylinder, hydraulic self-adjusting lifters |
| Displacement / Capacity | 883 cc / 53.9 cu in |
| Bore X Stroke | 76.2 x 96.8 mm / 3.0 x 3.811 in |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 40 kW / 54 hp @ 6000 rpm |
| Max Torque | 73 Nm / 54 lb-ft @ 3750 rpm |
| Ignition | Digital CDI |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5-speed |
| Clutch | Wet multi-plate, diaphragm spring |
| Final Drive | Belt, 29/68 |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame with cast junctions; mild steel rectangular-tube swingarm |
| Front Suspension | 39 mm telescopic fork, 92 mm / 3.6 in travel |
| Rear Suspension | Dual coil-over shocks, preload adjustable, 41 mm / 1.6 in travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 260 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2185 mm / 86.0 in |
| Overall Width | 850 mm / 33.5 in |
| Overall Height | 1140 mm / 44.9 in |
| Seat Height | 760 mm / 29.9 in (unladen); 653 mm / 25.7 in (laden) |
| Wheelbase | 1515 mm / 59.6 in |
| Ground Clearance | 140 mm / 5.5 in |
| Dry Weight | 247 kg / 545 lb (as shipped) |
| Wet Weight | 256 kg / 564 lb |
| WHEEL SPECS | |
| Front Tyre | 100/90B19 57H |
| Rear Tyre | 150/80B16 77H |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | 4.6 L/100 km / 51 mpg (US) |
| Top Speed | — |

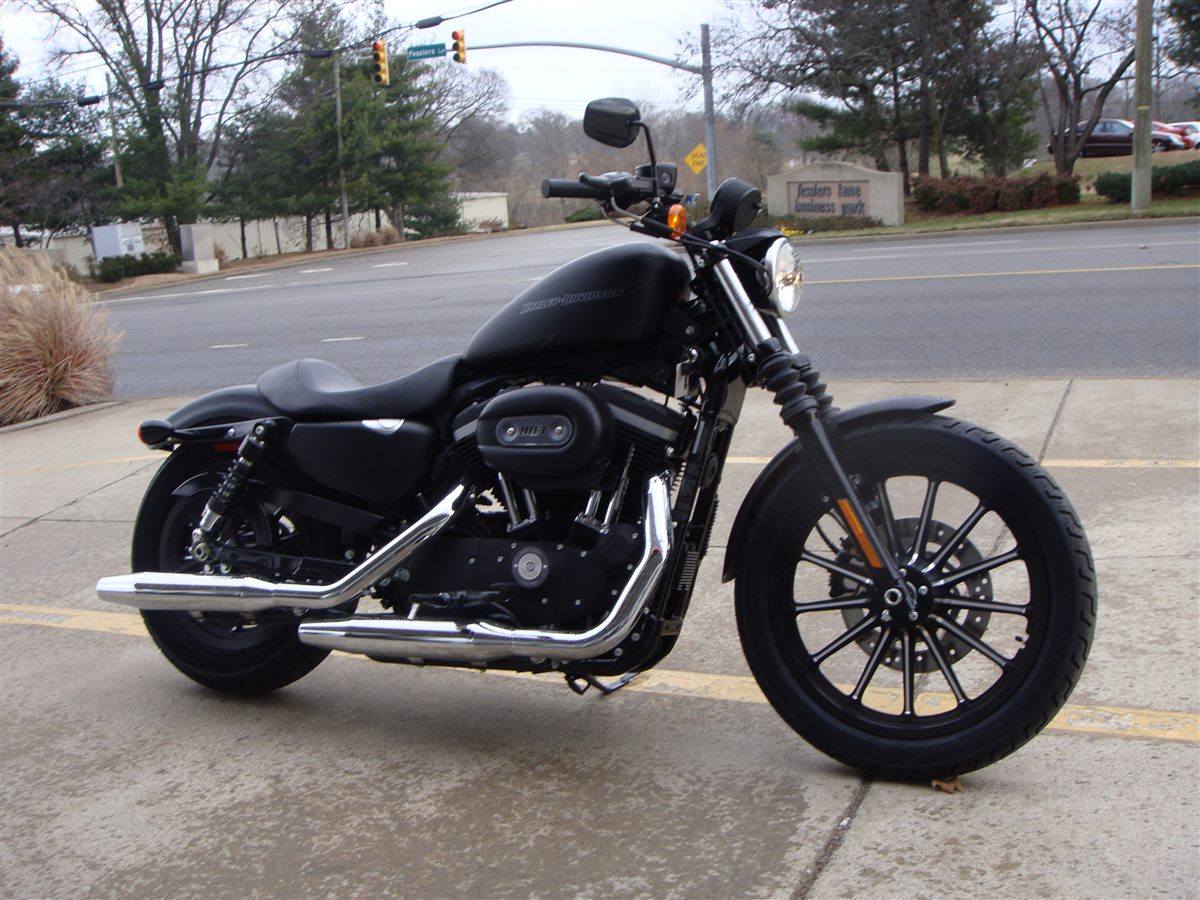

Photo: Nicholas Gemini, CC BY-SA 4.0, via Wikimedia Commons
Photo: Alek Kirstein, CC BY-SA 2.0, via Wikimedia Commons
The 2022 Iron 883 was the final year of the blacked-out entry Sportster that had been in the range since 2009, and one of the last bikes to use the air-cooled 883 cc Evolution twin. It kept the low solo seat, mid-mount controls and drag-style bars, with black nine-spoke cast wheels and black exhausts. It was sold alongside the new liquid-cooled Nightster and Sportster S, which replaced it from 2023 in most markets.
