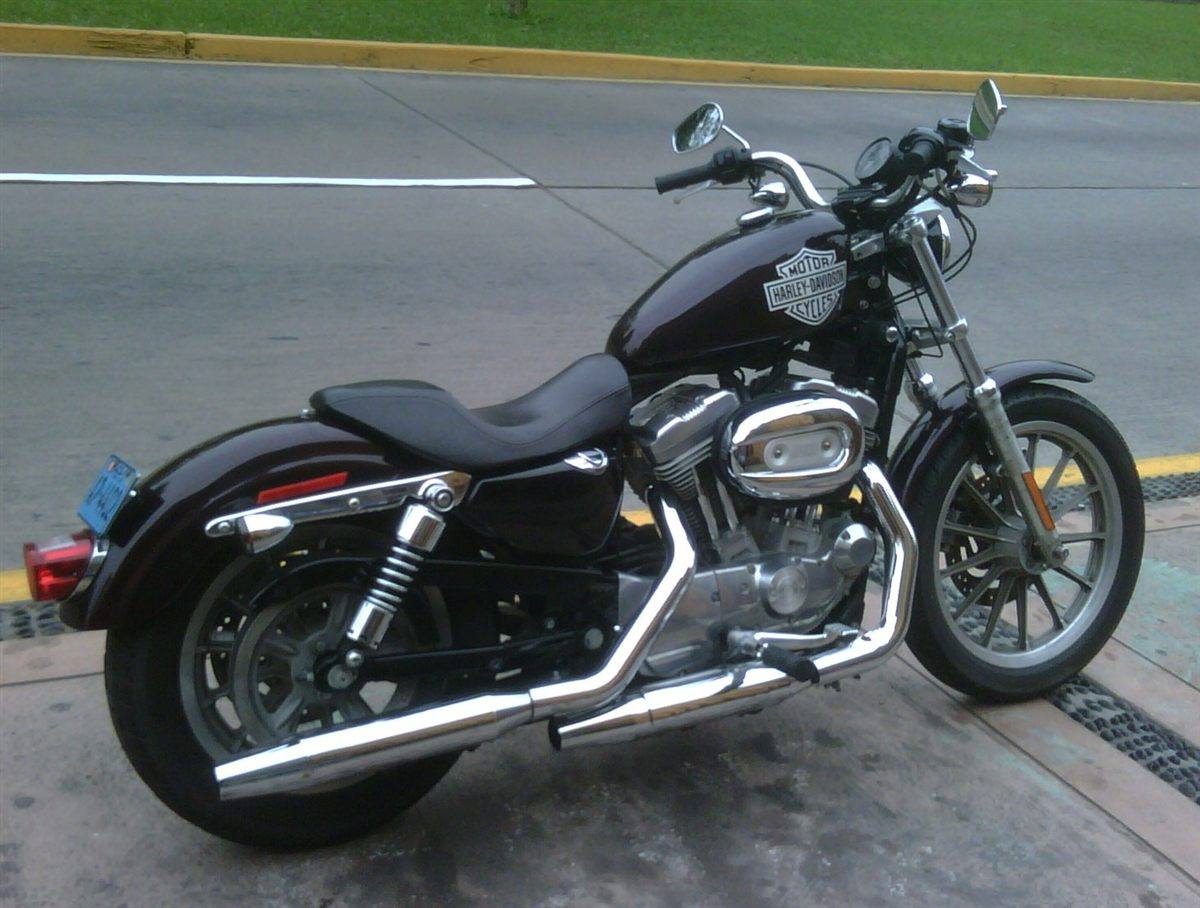

| MODEL | HARLEY-DAVIDSON SPORTSTER 883L LOW 2005 - 2006 |
| Year | 2005 - 2006 |
| Engine Type | Four-stroke, 45° V-twin, OHV, 2 valves per cylinder |
| Displacement / Capacity | 883 cc / 53.9 cu in |
| Bore X Stroke | 76.2 x 96.8 mm / 3.00 x 3.81 in |
| Compression Ratio | 8.9:1 |
| Cooling System | Air cooled |
| Max Power | 40 kW / 54 PS @ 6000 rpm |
| Max Torque | 69 Nm / 51 lb-ft @ 4300 rpm |
| Ignition | Digital CDI |
| Induction | Single 40 mm CV carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Multi-plate, diaphragm spring, wet (oil bath) |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel tubular frame, circular sections, cast junctions; rubber-mounted engine |
| Front Suspension | 39 mm telescopic fork |
| Rear Suspension | Twin coil-over shocks, preload adjustable |
| Front Brakes | Single 292 mm disc, 2-piston caliper |
| Rear Brakes | Single 292 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2289 mm / 90.1 in |
| Overall Width | 894 mm / 35.2 in |
| Overall Height | 1161 mm / 45.7 in |
| Seat Height | 643 mm / 25.3 in (laden); 668 mm / 26.3 in (unladen) |
| Wheelbase | 1524 mm / 60.0 in |
| Ground Clearance | 112 mm / 4.4 in |
| Dry Weight | 251 kg / 553 lbs |
| Wet Weight | 260.4 kg / 574 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 57H |
| Rear Tyre | 150/80B16 71H |
| FUEL SYSTEM | |
| Fuel Capacity | 12.5 Litres / 3.3 US gal |
| Fuel Consumption | 4.4 L/100 km |
| Top Speed | — |
New for 2005, the 883 Low was a standard 883 lowered for shorter and newer riders: a shorter fork (about 25 mm less travel), shorter rear shocks and reworked ergonomics brought the seat down to around 26 inches. It kept the carburetted rubber-mount engine, 19-inch front wheel, mid controls and 3.3-gallon tank.
