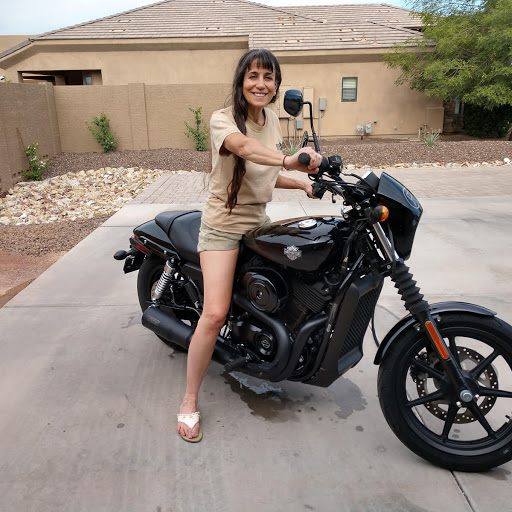

| MODEL | HARLEY-DAVIDSON STREET 500 2018 - 2019 |
| Year | 2018 - 2019 |
| Engine Type | Four stroke, 60° V-twin, Revolution X, SOHC, 4 valves per cylinder |
| Displacement / Capacity | 494 cc / 30 cu in |
| Bore X Stroke | 69 x 66 mm |
| Compression Ratio | 11.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 25 kW / 33.5 hp |
| Max Torque | 40 Nm / 29.5 lb-ft @ 3500 rpm |
| Ignition | Electronic |
| Induction | Mikuni single-port fuel injection, 35 mm bore |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Multi-plate, diaphragm spring, oil bath |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | — |
| Rear Suspension | — |
| Front Brakes | Single disc, 2-piston floating caliper (ABS optional) |
| Rear Brakes | Single disc, 2-piston floating caliper (ABS optional) |
| DIMENSION SPECS | |
| Overall Length | 2225 mm / 87.6 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 654 mm / 25.7 in (laden), 709 mm / 27.9 in (unladen) |
| Wheelbase | 1534 mm / 60.4 in |
| Ground Clearance | 145 mm / 5.7 in |
| Dry Weight | 206 kg / 455 lbs |
| Wet Weight | 222 kg / 489 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/80 R17 |
| Rear Tyre | 140/75 R15 |
| FUEL SYSTEM | |
| Fuel Capacity | 13.1 Litres / 3.5 US gal |
| Fuel Consumption | 3.68 L/100 km / 63.9 US mpg |
| Top Speed | — |
The Street 500 was the small-capacity version of the Street family, sharing the 750's frame, bodywork and belt drive but with a 494 cc liquid-cooled Revolution X twin. For 2018-2019 it stayed an entry-level urban cruiser, with a low seat, narrow profile and blacked-out Dark Custom styling, and factory ABS available as an option.
