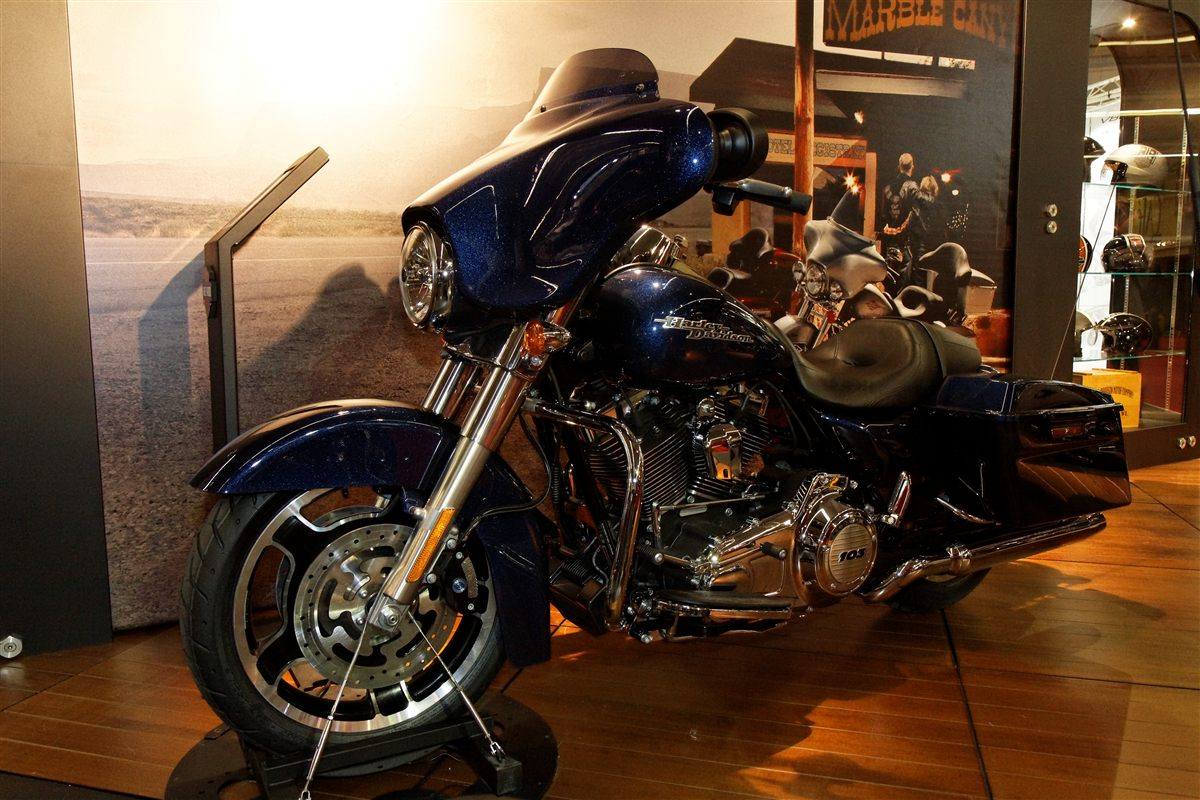

| MODEL | HARLEY-DAVIDSON STREET GLIDE FLHX 2011 |
| Year | 2011 |
| Engine Type | Four stroke, 45° V-twin, Twin Cam 96 (Twin Cam 103 optional) |
| Displacement / Capacity | 1584 cc / 96.6 cu in |
| Bore X Stroke | 95.25 x 111.25 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Air cooled |
| Max Power | — |
| Max Torque | 124.7 Nm / 92 lb-ft @ 3000 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed (Cruise Drive) |
| Clutch | 9-plate, wet |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel, square-section backbone with twin downtubes |
| Front Suspension | 41.3 mm telescopic fork, cartridge-style damping, 117 mm / 4.6 in travel |
| Rear Suspension | Short, air-adjustable shocks, 51 mm / 2.0 in travel |
| Front Brakes | 2 x 292 mm discs, 4-piston calipers |
| Rear Brakes | Single 292 mm disc, 4-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2413 mm / 95.0 in |
| Overall Width | 965 mm / 38.0 in |
| Overall Height | 1326 mm / 52.2 in |
| Seat Height | 668 mm / 26.3 in (laden); 693 mm / 27.3 in (unladen) |
| Wheelbase | 1613 mm / 63.5 in |
| Ground Clearance | 125 mm / 4.9 in |
| Dry Weight | 356.1 kg / 785 lbs |
| Wet Weight | 372.9 kg / 822 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/70B18 |
| Rear Tyre | 180/65B16 |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
For 2011 the Street Glide carried on as Harley's lowered, chrome-trimmed bagger, with the batwing fairing, short tinted deflector and hard saddlebags on the 2009-type touring frame. The rubber-mounted Twin Cam 96 remained the standard engine with the 103 available as an option, driving through the six-speed Cruise Drive gearbox and a belt.
