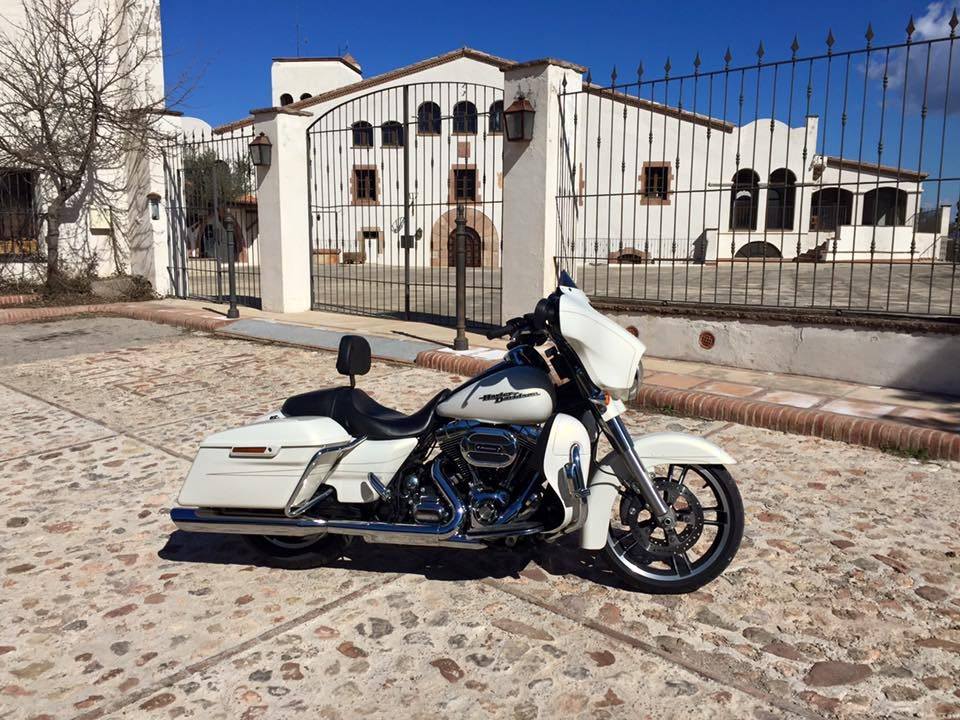

| MODEL | HARLEY-DAVIDSON STREET GLIDE SPECIAL 2016 |
| Year | 2016 |
| Engine Type | Four stroke, V-twin, Twin Cam 103 (High Output) with integrated oil cooler |
| Displacement / Capacity | 1690 cc / 103 cu in |
| Bore X Stroke | 98.4 x 111.3 mm |
| Compression Ratio | 9.7:1 |
| Cooling System | Air cooled, integrated oil cooler |
| Max Power | 63.5 kW / 87 hp @ 5100 rpm |
| Max Torque | 138 Nm / 101.8 lb-ft @ 3500 rpm |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Induction | Electronic Sequential Port Fuel Injection (ESPFI) |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 6 speed |
| Clutch | Multi-plate, diaphragm spring, in oil bath |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Mild steel, square-section backbone with twin downtubes |
| Front Suspension | 41.3 mm telescopic fork, cartridge-style damping, 117 mm / 4.6 in travel |
| Rear Suspension | Short air-adjustable shocks, 51 mm / 2.0 in travel |
| Front Brakes | 2 x 292 mm discs, 4-piston calipers, ABS |
| Rear Brakes | Single 292 mm disc, 4-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2450 mm / 96.5 in |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 695 mm / 27.4 in (unladen) |
| Wheelbase | 1625 mm / 64.0 in |
| Ground Clearance | 135 mm / 5.3 in |
| Dry Weight | 356 kg / 785 lbs |
| Wet Weight | 372 kg / 820 lbs |
| WHEEL SPECS | |
| Front Tyre | 130/60B19 61H |
| Rear Tyre | 180/65B16 81H |
| FUEL SYSTEM | |
| Fuel Capacity | 22.7 Litres / 6.0 US gal |
| Fuel Consumption | 5.6 L/100 km / 42 mpg |
| Top Speed | — |
The 2016 Street Glide Special was the last year of the Twin Cam 103 High Output engine in this bagger. It rode on Enforcer cast wheels with a 19-inch front, and kept the batwing fairing, Boom! Box infotainment, linked ABS and the low, blacked-out hot-rod look.
